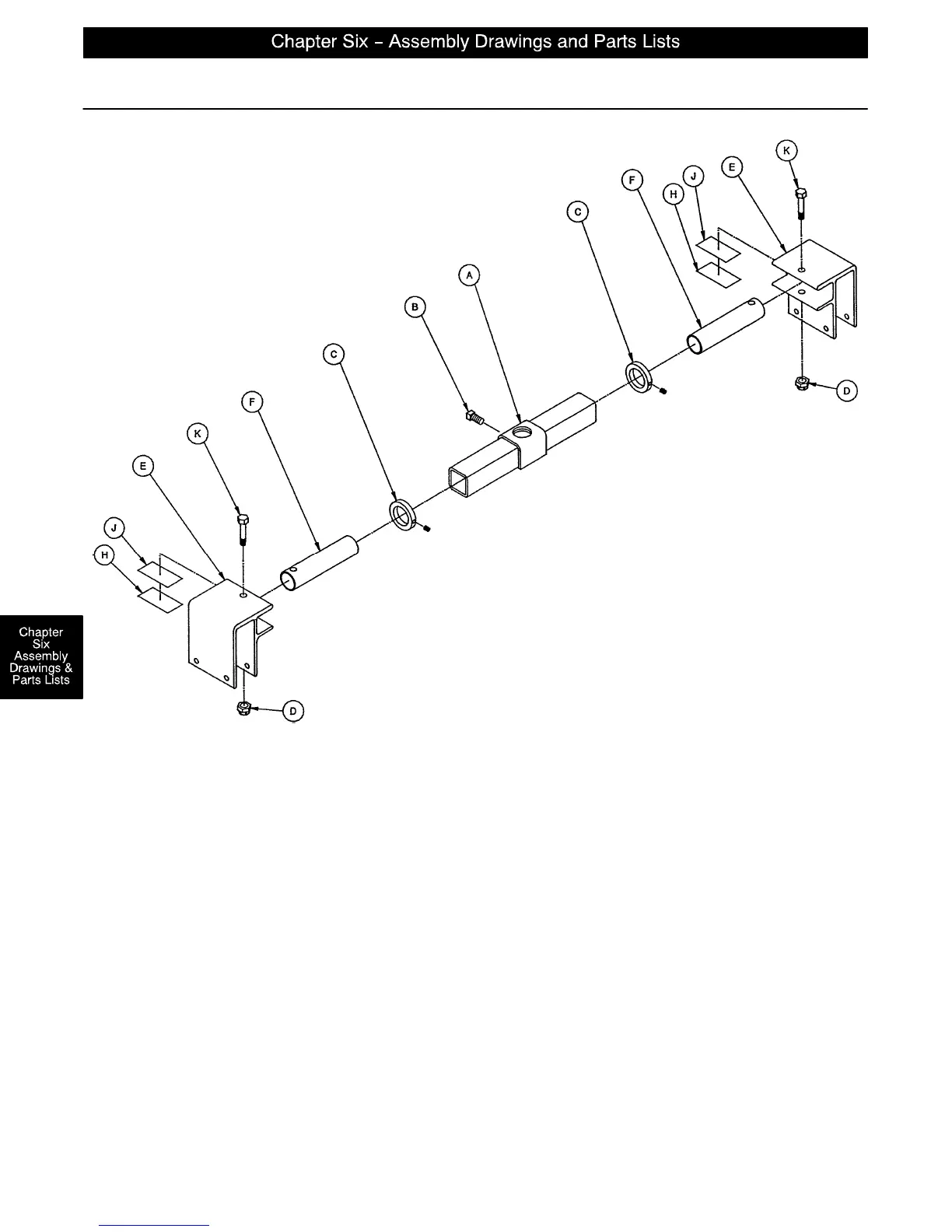

Foot End Jack Support Assembly
Assembly part number 1010–32–110 (reference only)
Item Part No. Part Name Qty.
A 1010–32–85 Support Tube Assembly 1
B46–1 Sq. Hd. Set Screw 1
C 938–1–401 Collar Assembly 2
D16–11 Flexlock Nut 2
E 1010–32–108 Roller Assembly 2
F 1010–32–64 Carrier Tube, Std. 2
H 919–30–28 Rack Guide 2
J44–29 Double–Sided Foam Tape 6”
K3–40 Hex Hd. Cap Screw 2
