Stryker 1069 - Foot and Thigh Section Assembly

page 6–76

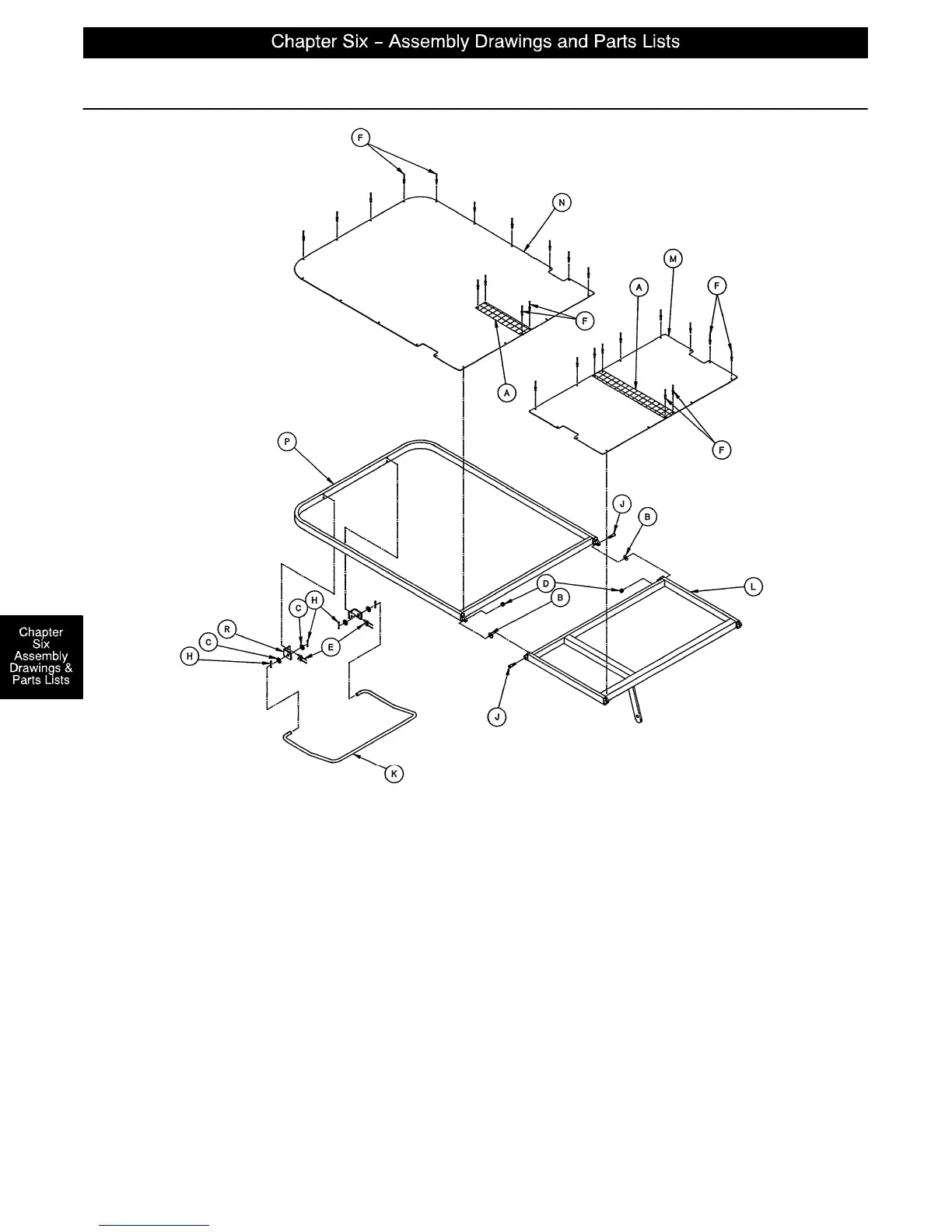

Optional Knee Gatch Foot and Thigh Section Assembly
Assembly part number
1068–41–10 (reference only)
Item Part No. Part Name Qty.
A 7900–1–102 Velcro Adhesive Pile 1.92’
B14–3 Washer 2
C14–21 Nylon Washer 4
D16–28 Nylock Hex Nut 2
E25–79 Rivet 4
F25–101 Rivet 38
H27–7 Cotter Pin 4
J 1010–32–60 Pivot Bolt 2
K 1010–34–23 Calf Stand Bar 1
L 1010–34–25 Thigh Section Weldment 1
M 1066–34–59 Thigh Section Skin 1
N 1068–40–44 Calf Section Skin 1
P 1068–40–50 Calf Section Weldment 1
R 1510–34–88 Calf Stand Bracket 2
