Stryker 1069 - Fowler Crankscrew Assembly

page 6–69

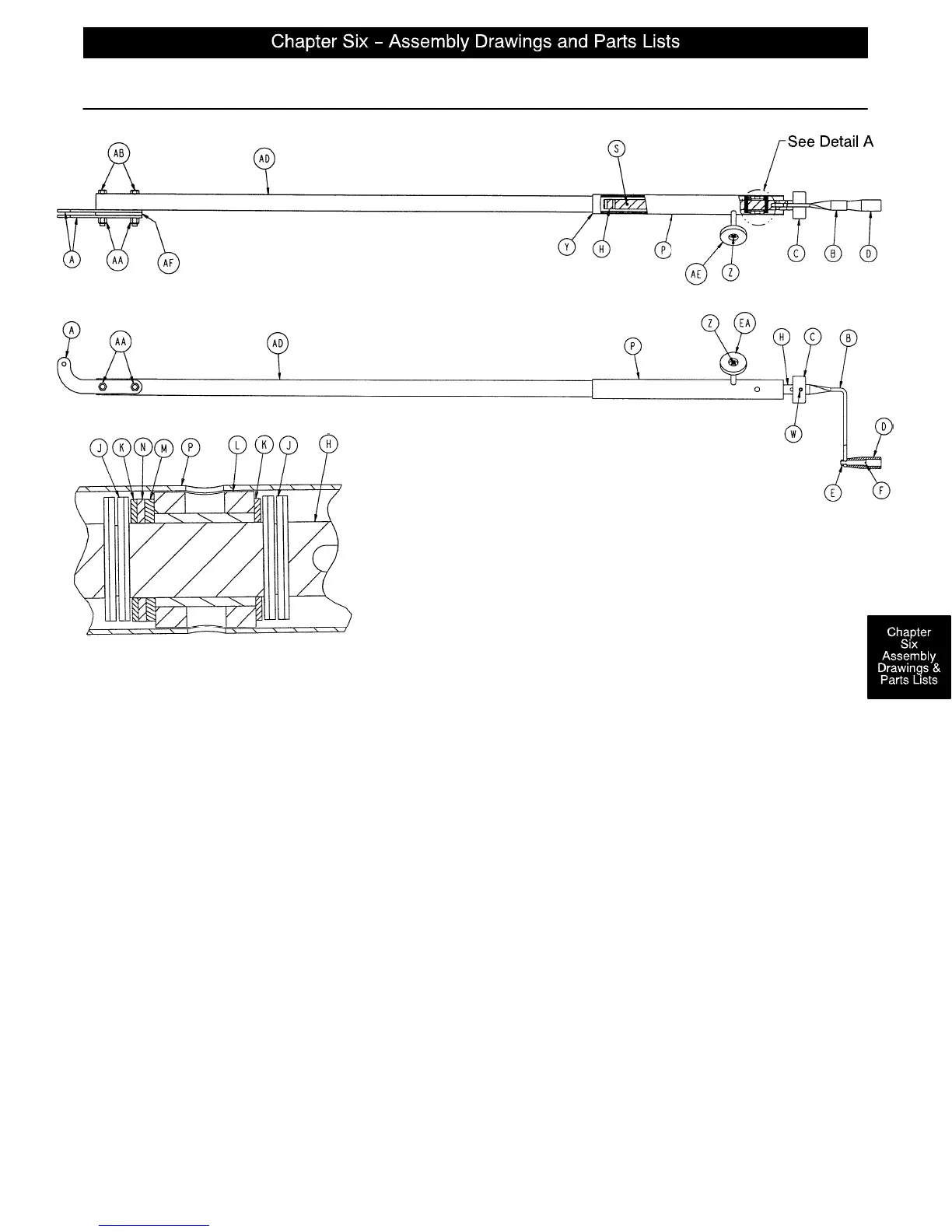

1069–42–10 Optional Fowler Crankscrew Assembly
DETAIL A
Item Part No. Part Name Qty.
A 1069–42–23 Crank Arm Link 2
B 1550–1–16 Crank Handle 1
C 946–33–18 Crank Disc 1
D 938–1–177 Knob 1
E16–5 Conelock Nut 1
F 378–24–29 Shoulder Bolt 1
H 946–33–35 Fowler Screw 1
J26–14 Roll Pin 2
K81–174 Thrust Washer 2
L 938–1–175 Bearing Assembly 1
M81–176 Thrust Washer 1
N81–175 Thrust Washer 1
P 1510–34–84 Screw Cover Assembly 1
S26–10 Roll Pin 1
W26–45 Roll Pin 1
Y 7900–1–102 Velcro Pile Tape 4”
Z4–7 Soc. Hd. Cap Screw 1
AA 16–35 Nylon Hex Nut 2
AB 3–27 Hex Hd. Cap Screw 2
AD 1069–42–21 Drive Tube Assembly 1
AE 1550–1–14 Magnet 1
AF 1069–42–24 Crank Spacer 1
