page 6–39

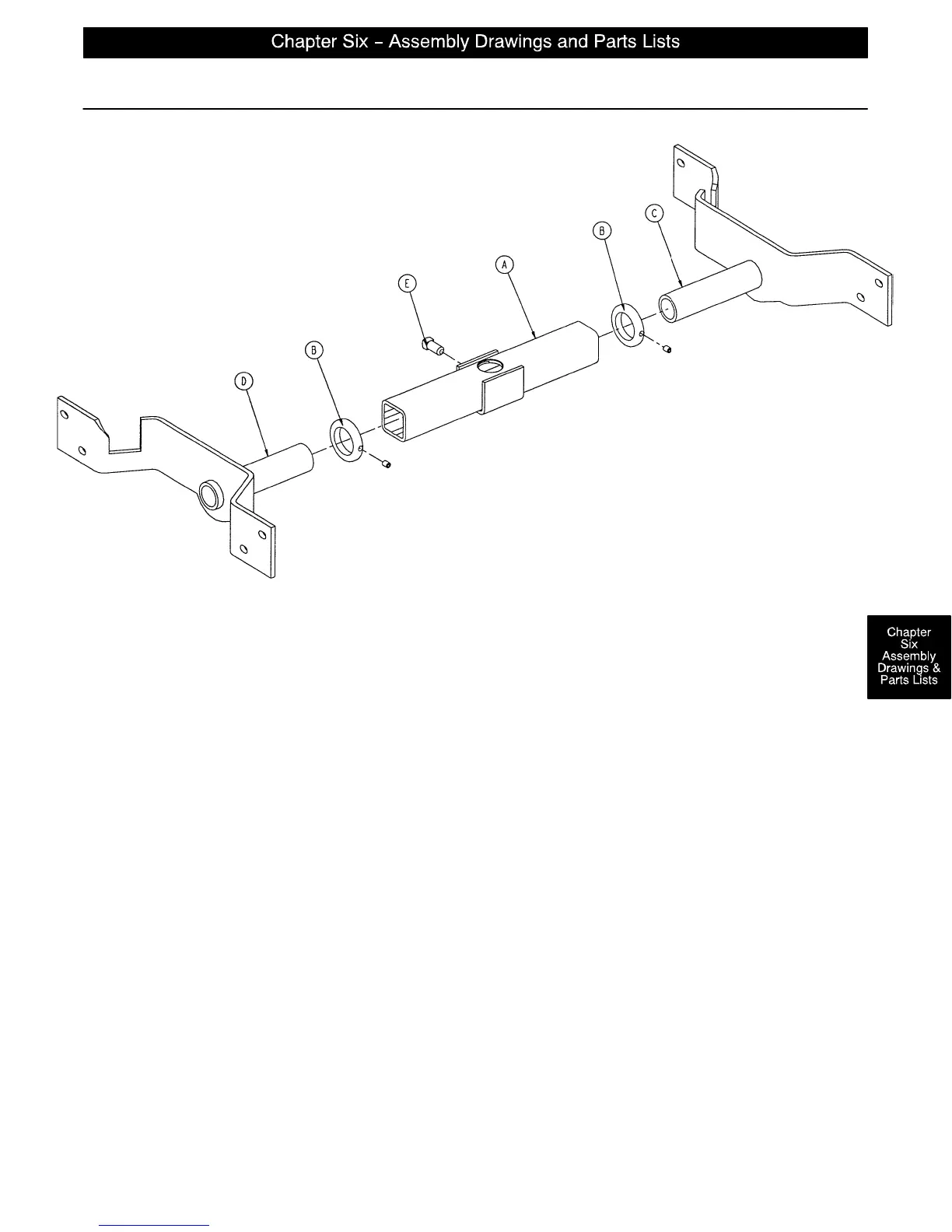

Head End Jack Support Assembly
Assembly part number 1069–30–30 (reference only)
Item Part No. Part Name Qty.
A 721–32–160 Support Tube Assembly 1
B 938–1–401 Collar 2
C 1069–30–20 Jack Mount Weldment, Left 1
D 1069–30–25 Jack Mount Weldment, Right 1
E46–1 Sq. Hd. Set Screw 1
