Stryker 1069 - Siderail to Litter Assembly, Two-Position Siderails

page 6–78

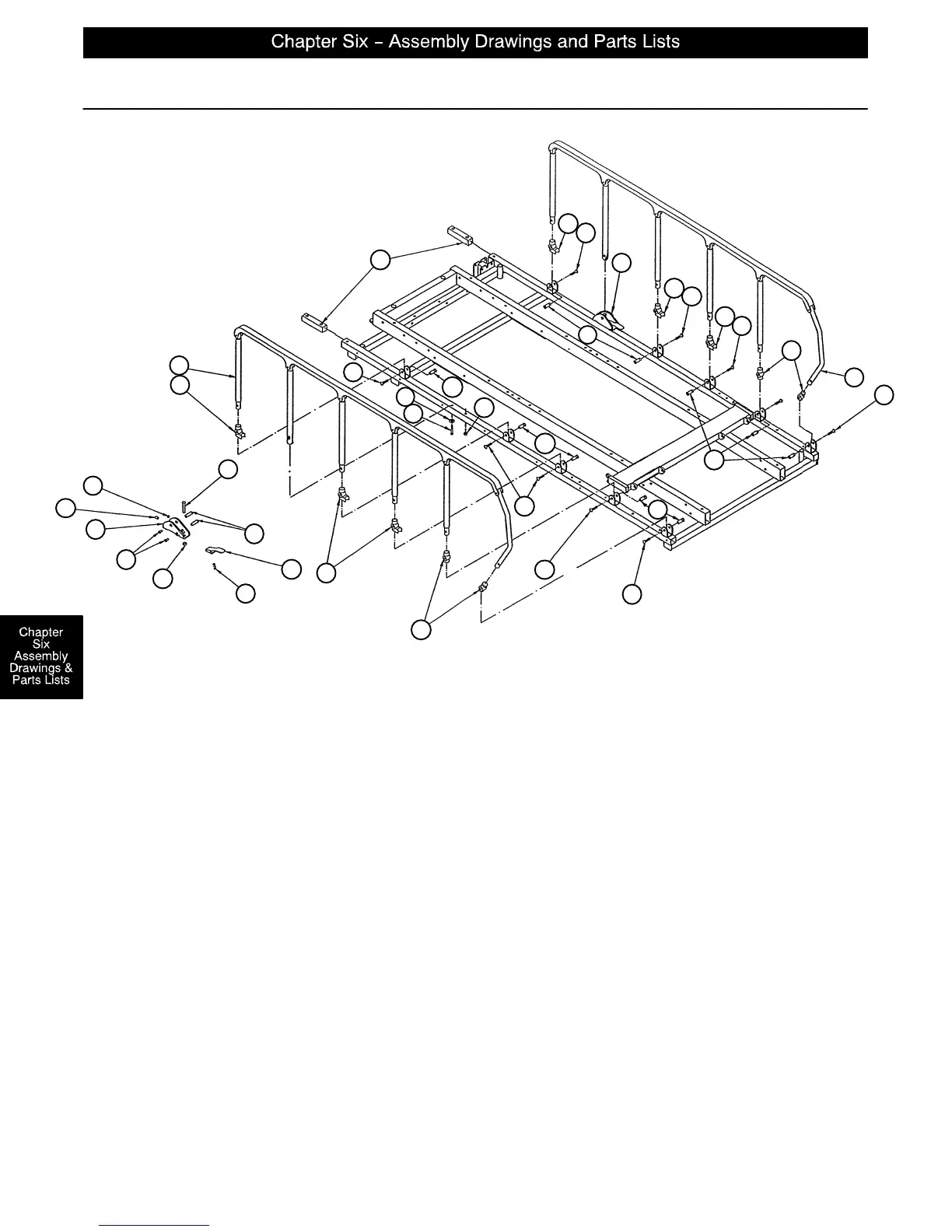

Siderail to Litter Assembly, Two–Position Siderails
F
J
L
J
J
L
L
C
H
A
L
K
K
L
L
L
L
L
K
T
S
P
K
K
J
H
J
B
S
K
E
R
P
D
M
W
Assembly part number 1068–20–10 (reference only)
FOOT END
Item Part Number Part Name Qty.
A (page 6–79) Siderail Assembly, Right 1
B (page 6–79) Siderail Assembly, Left 1
C 1010–26–80 Lock Housing, Right 1
D 1010–26–81 Lock Housing, Left 1
E 721–26–74 Lock Handle 2
F 1010–26–69 Lock Support 2
H 721–26–69 Sleeve Upright 4
J 721–26–68 Cradle Upright 6
K 721–26–66 Pivot Screw 14
L4–136 Button Hd. Cap Screw 14
M21–104 Set Screw 2
P16–28 Nylock Hex Nut 2
R38–220 Compression Spring 2
S4–135 Button Hd. Cap Screw 4
T11–2 Flat Washer 4
W37–74 Hole Plug 2
