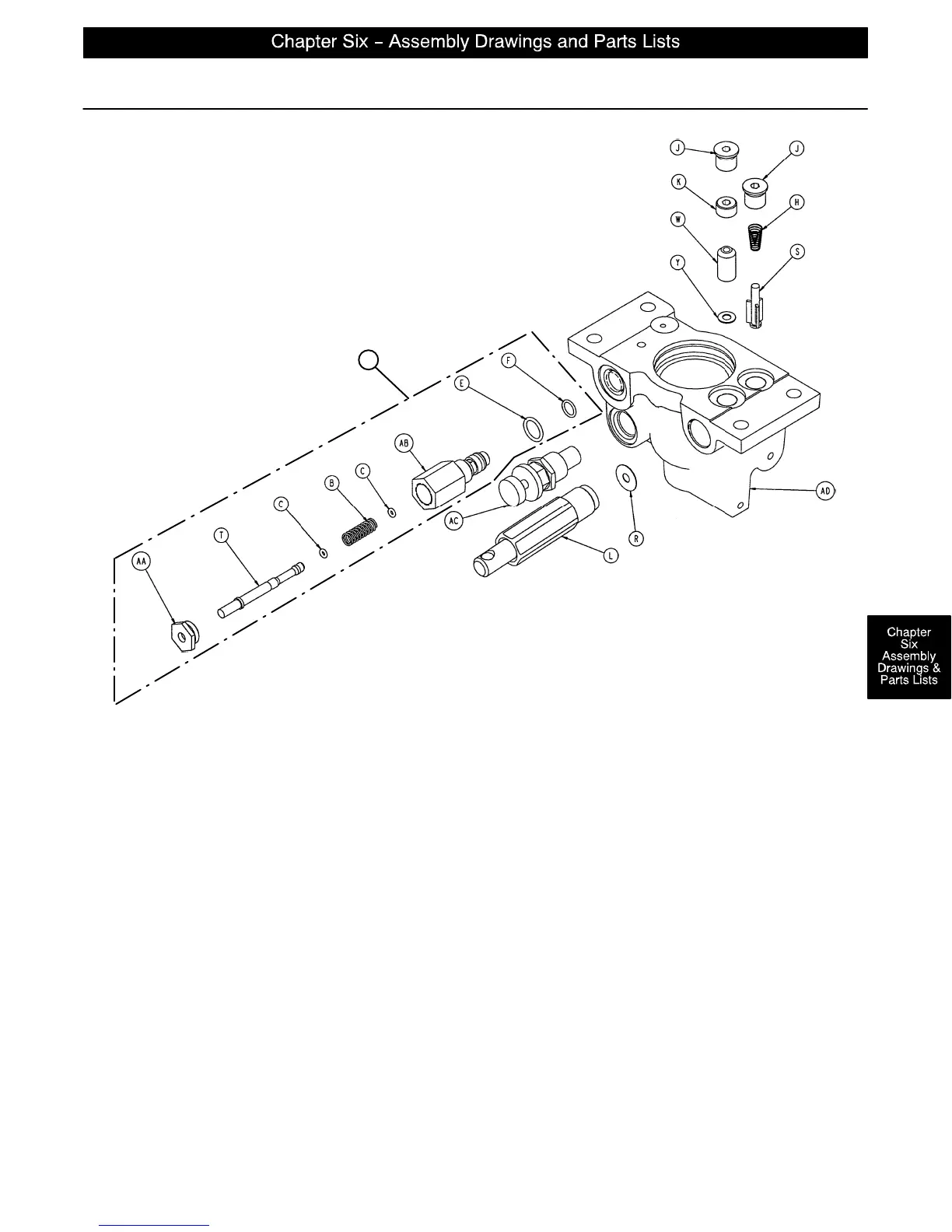

Constant Flow Jack Base Assembly
Assembly part number 5050–370–100 (reference only)
AE
Item Part No. Part Name Qty. Item Part No, Part Name Qty.
B38–311 Compression Spring 1 S 715–1–341 Poppet 1
C45–6O–Ring 2 T 715–270–1 Pin 1
E45–966 O–Ring 1 W 926–20–153 Check Valve 1
F45–967 O–Ring 1 Y 926–20–154 Seal 1
H 390–2–134 Conical Comp. Spring 1 AA 1210–170–13 Base Plug 1
J48–147 Base Plug 2 AB 2025–75–87 Pin Housing 1
K 715–1–309 Valve Plug 1 AC 5050–70–50 Adj. P.C. Valve Cartridge 1
L (page 6–20) Pump Piston Assembly 1 AD 5050–370–110 Jack Base 1
R 715–1–329 Pump Seal 1 AE 2025–700–26 Relief Valve Assembly 1
