Stryker 1069 - Brake Adjustment

page 3–5

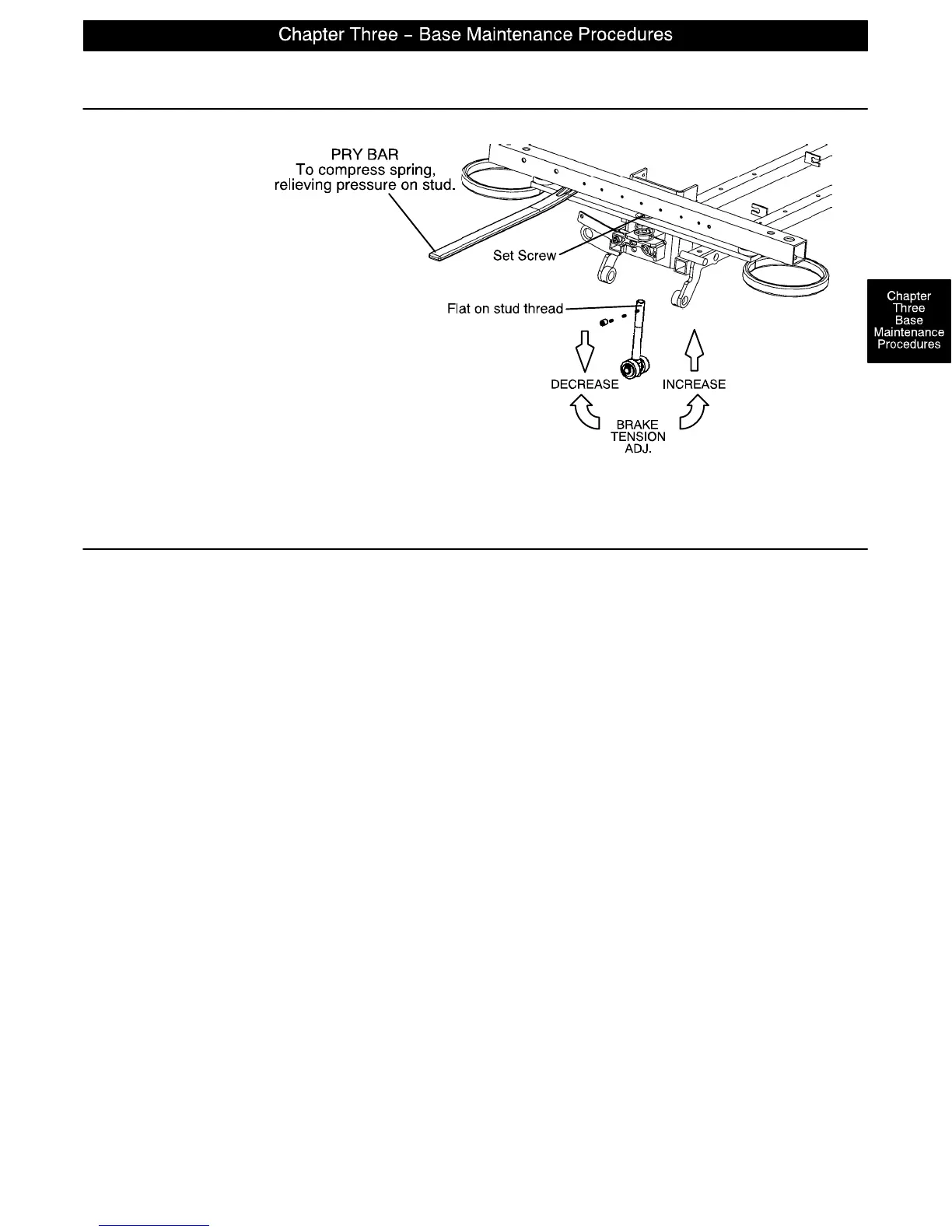

Brake Adjustment
Required Tools:
3/32” Hex Allen Wrench
Pry Bar
Thread ”Locktite”
Flat on thread of stud must always be
aligned with the set screw. Turn must
always be full circle only.
Base Side Control Pedal Linkage Adjustment
Required Tools:
3/8” Wrench 5/32” Hex Allen Wrench 7/16” Wrench
Bungee Cords
Adjustment Procedure:
1. Place 150–200 pounds on the litter and pump the litter up to full height.
2. Lift the base hood, separating the hood from the base frame. Using the bungee cords, support the base
hood.
3. Using a 3/8” wrench and a 5/32” hex Allen wrench, loosen the appropriate pedal linkage adjustment nut
until the jack stops ”drifting”. Raise the litter to full up.
4. Tighten the pedal linkage adjustment nut until the jack begins to slowly descend.
5. Using a 7/16” wrench, back the pedal linkage adjustment nut out four full turns. Raise the litter to full up.
6. Loosen the pedal linkage adjustment nut and ensure no drift occurs. If the jack drifts, repeat procedure.
