page 6–21

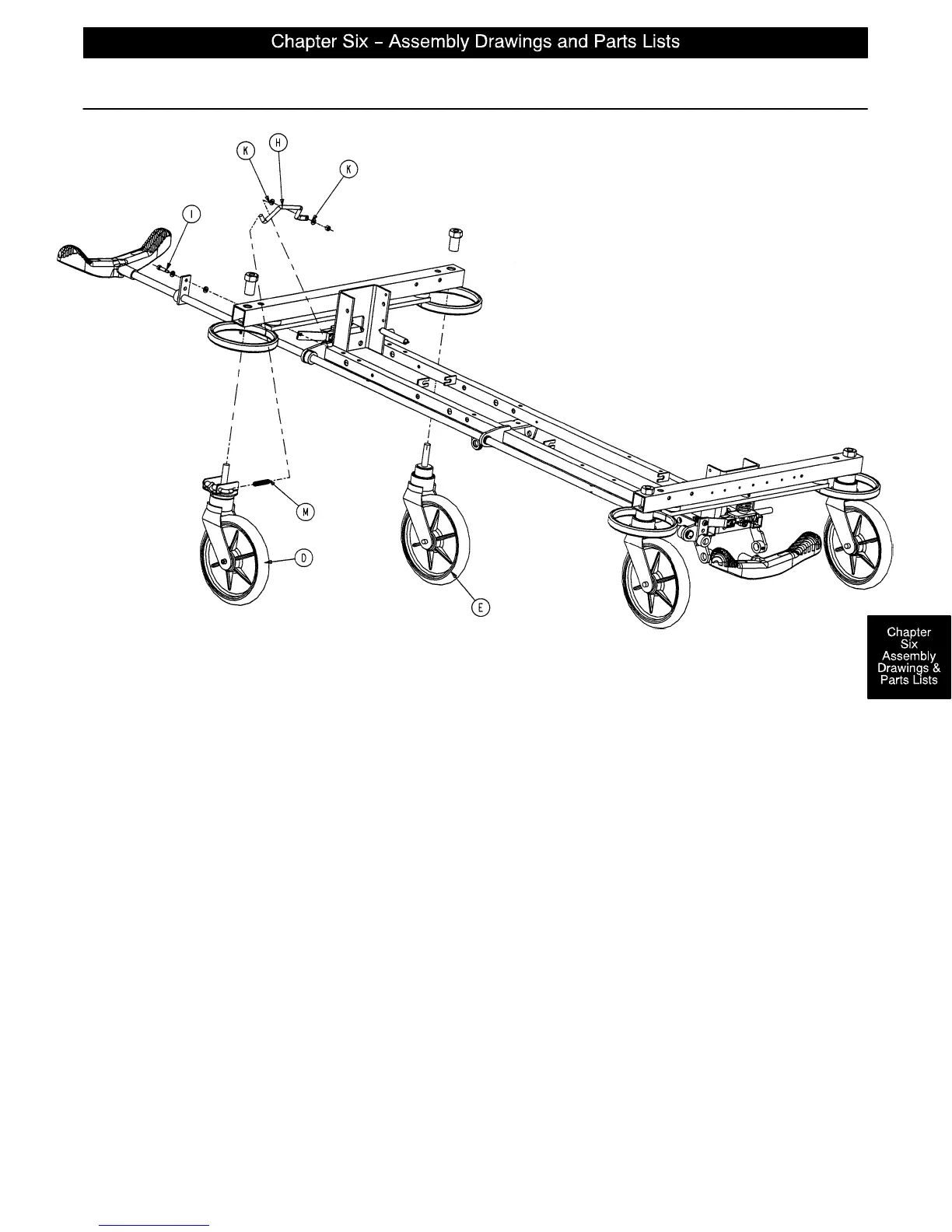

Base Assembly with Steerlock Caster Option
Assembly part number 1000–159
(reference only)
HEAD END
Item Part No. Part Name Qty.
D (page 6–22) Steer Caster Assembly 1
E (page 6–23) Caster Assembly 3
H 1000–210–62 Steer Lock Linkage Bar 1
I8–21 Shoulder Bolt 1
K14–2 Washer 2
M38–211 Spring 1
To Next Page
