page 6–31

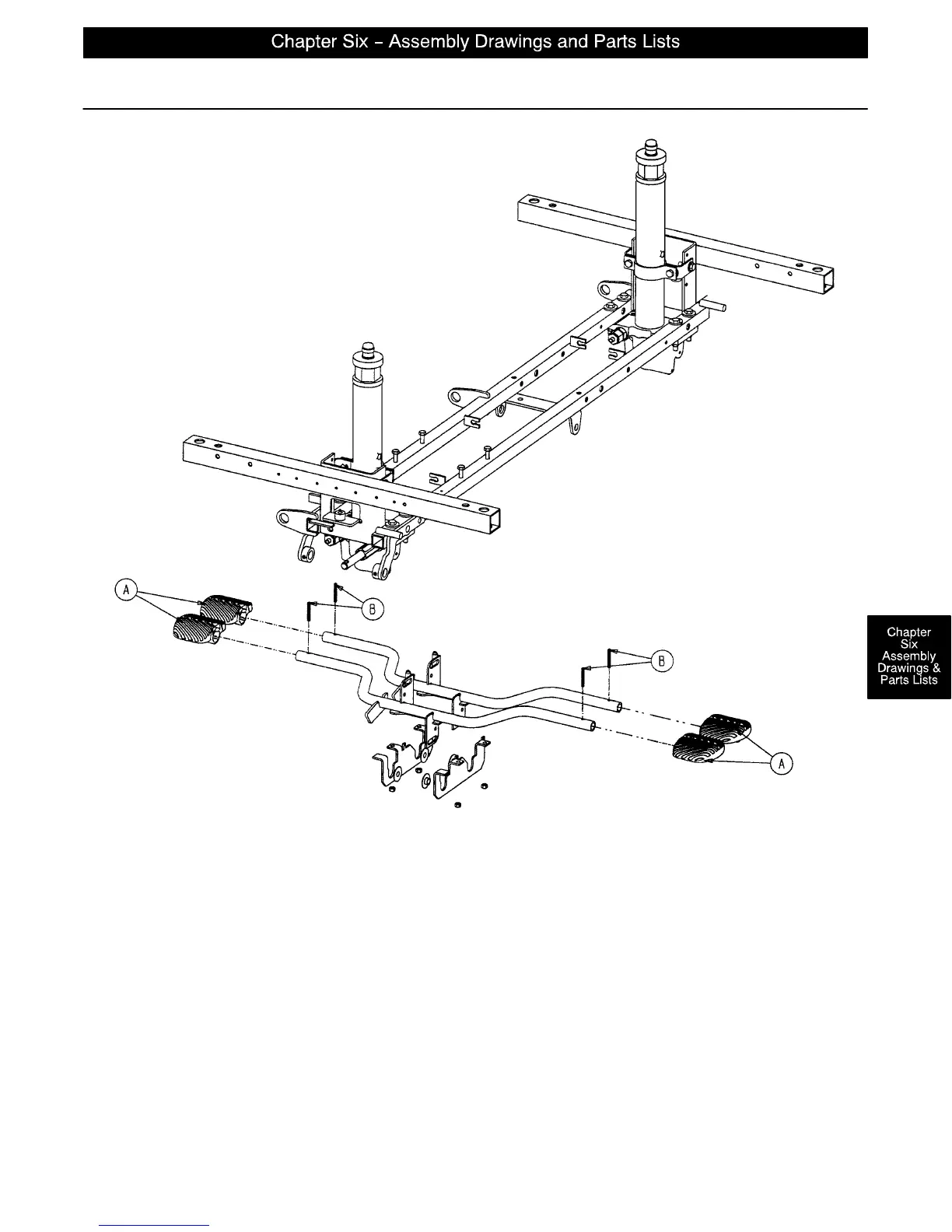

Optional Dual Lowering Pedal Assembly
Assembly part number 1210–501 (reference only)
FOOT END
HEAD END
Item Part No. Part Name Qty.
A 715–201–126 Pump Pedal 4
B26–143 Groove Pin 4
