Stryker 1069 - Constant Flow Jack Assembly

page 6–18

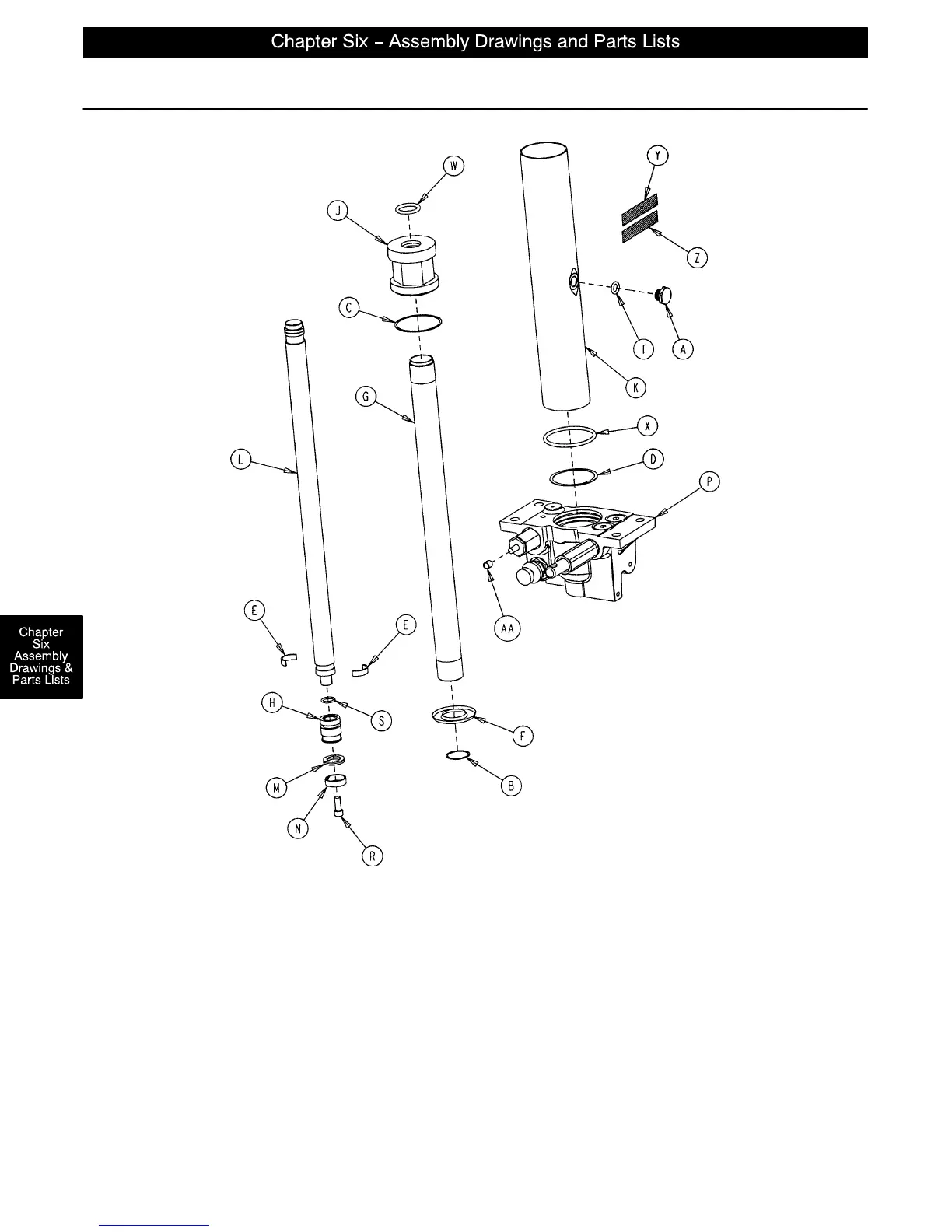

1231–70–210 Constant Flow Jack Assembly
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 388–100–38 Plug 1 M 926–20–161 Parker Packing 1
B 390–1–238 Actuator Gasket 1 N 926–20–162 Wear Ring 1
C 390–1–243 Gasket 1 P (page 6–19) Jack Base Ass’y1
D 390–1–244 Base Gasket 1 R 4–14 Soc. Hd. Cap Screw 1
E 390–2–139 Retaining Ring 2 S 45–14 O–Ring 1
F 715–1–320 Jack Screen 1 T 45–110 O–Ring 1
G 715–1–323 Actuator Cylinder 1 W 45–904 O–Ring 1
H 715–1–331 Piston End 1 X 45–978 O–Ring 1
J 715–1–340 Jack Cap Assembly 1 Y 1231–70–211 Label 1
K 715–1–422 Reservoir 1 Z 921–1–252 Serial Number Label 1
L 715–1–325 Actuator Rod 1 AA 715–1–333 Rel. Rod Stop Sleeve 1
