Stryker 1069 - Page 133

page 6–94

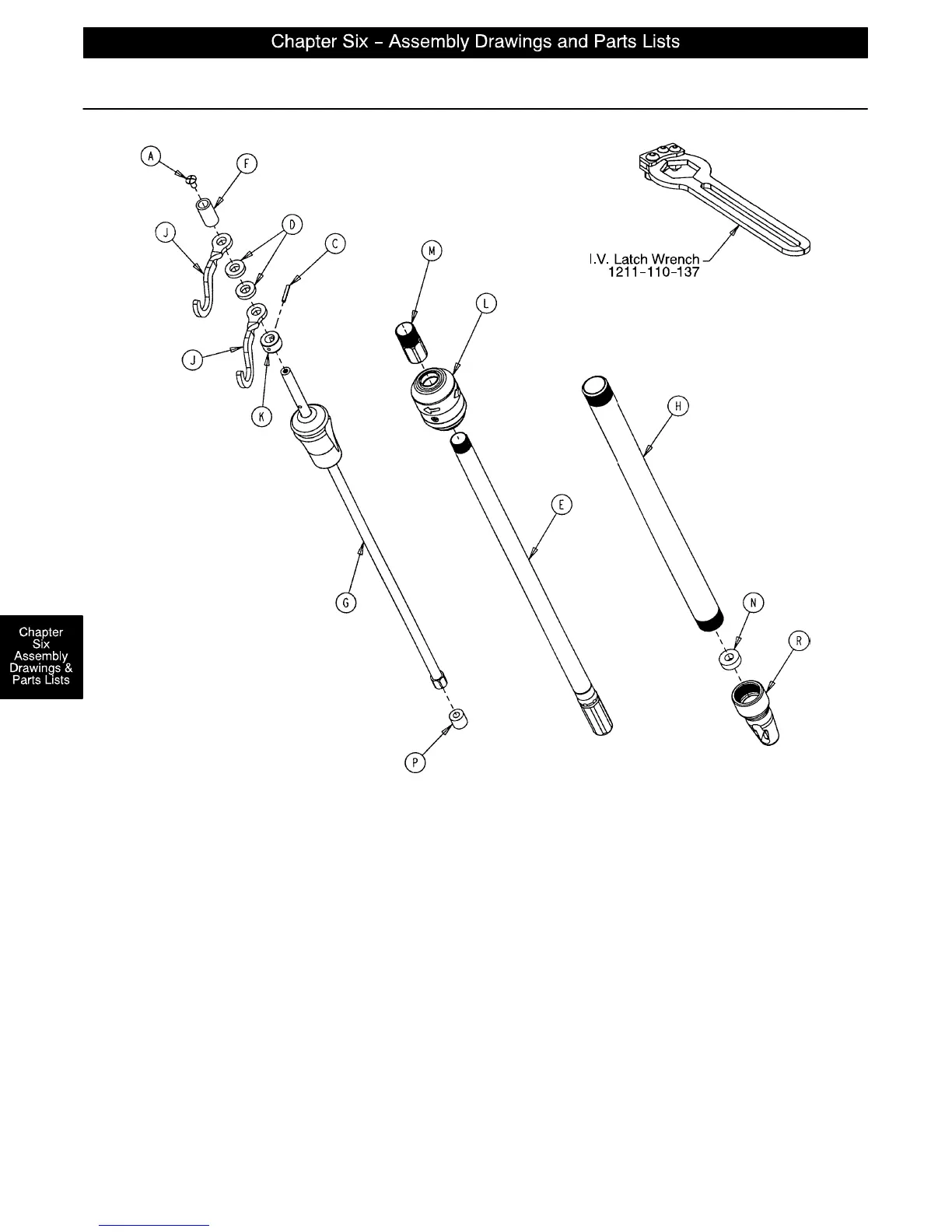

1211–211–10 Optional 3–Stage I.V. Pole Assembly
Item Part No. Part Name Qty.
A7–4 Truss Hd. Machine Screw 1
C26–76 Roll Pin 1
D52–17 Spacer 2
E 1211–210–31 2nd Stage Assembly 1
F 926–400–162 Spacer 1
G (page 6–95) 3rd Stage Assembly 1
H 1001–161–23 Base Tube 1
J 1010–259–16 I.V. Hook 2
K 1010–61–14 Collar 1
L (page 6–96) I.V. Pole Latch 1
M 1211–110–16 Threaded Adaptor 1
N 1001–359–13 Dampener 1
P 1001–359–14 Dampener 1
R 1001–359–112 Pivot 1
