Stryker 1069 - Page 119

page 6–80

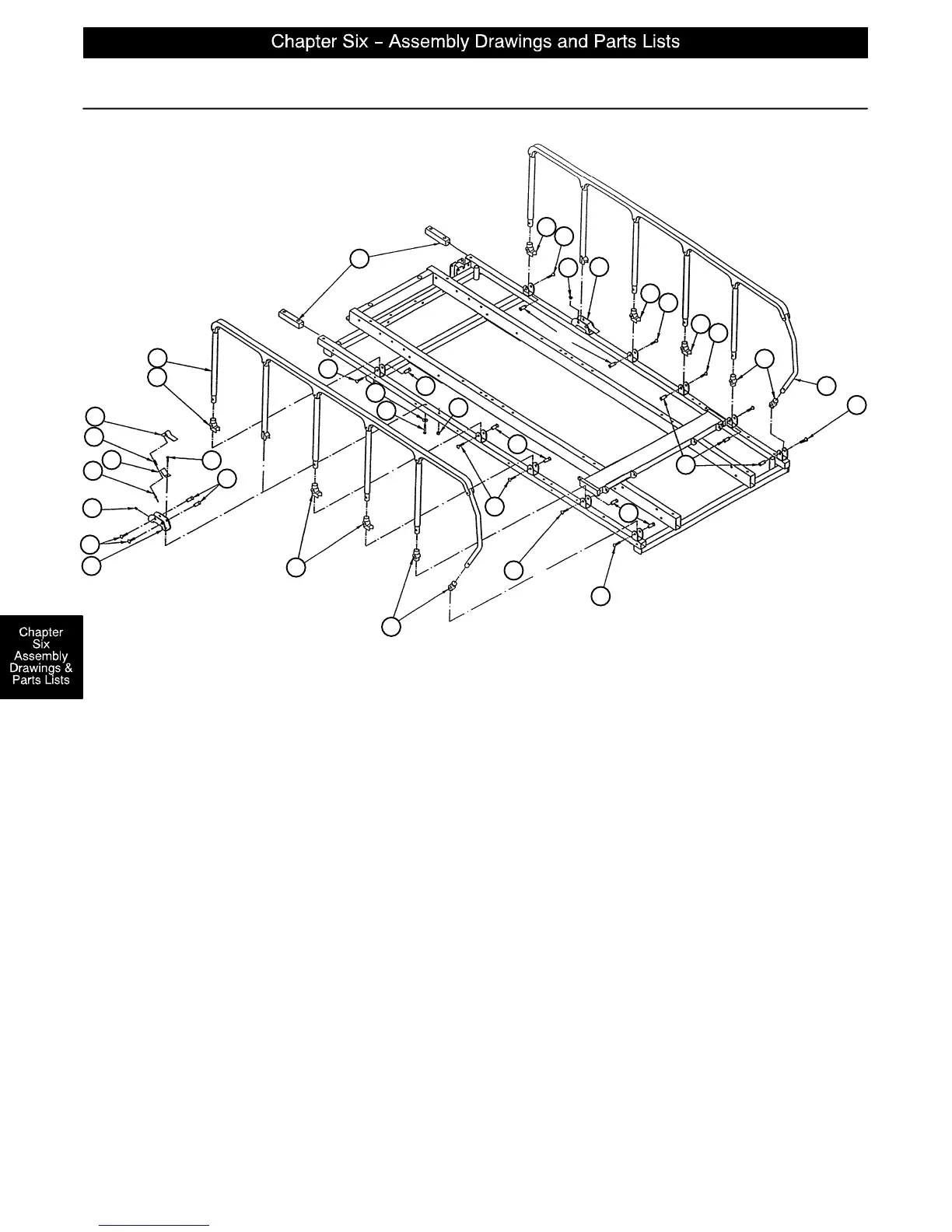

Siderail to Litter Assembly, Optional Three Position Siderails
J
F
J
J
L
L
L
C
W
H
A
L
K
L
K
K
K
P
L
L
L
T
S
H
J
J
B
S
K
E
R
X
Y
M
D
L
FOOT END
Assembly part number 1068–21–10 (reference only)
Item Part Number Part Name Qty.
A (page 6–81) Siderail Assembly, Right 1
B (page 6–81) Siderail Assembly, Left 1
C 1066–26–18 Lock Housing, Right 1
D 1066–26–16 Lock Housing, Left 1
E 1066–26–22 Lock Handle 2
F 1010–26–69 Lock Support 2
H 721–26–69 Sleeve Upright 4
J 721–26–68 Cradle Upright 6
K 721–26–66 Pivot Screw 14
L4–136 Button Hd. Cap Screw 14
M21–104 Set Screw 2
P16–28 Nylock Hex Nut 2
R38–220 Compression Spring 2
S4–135 Button Hd. Cap Screw 4
T11–2 Flat Washer 4
W37–74 Hole Plug 2
X 1066–26–19 Spring Plate 2
Y25–38 Pop Rivet 2
