page 6–104

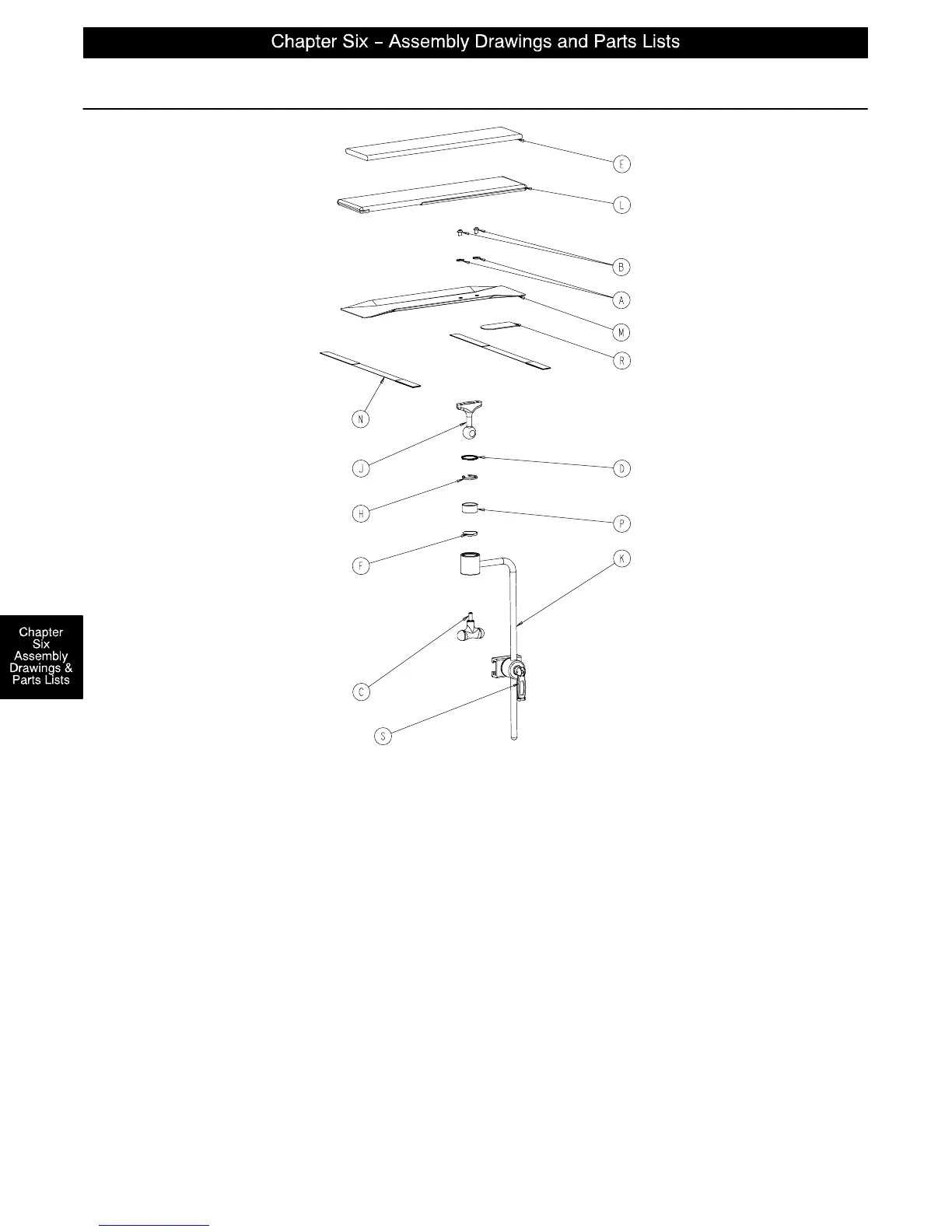

1068–56–110 Optional Arm Board Assembly with Direct Clamp
Item Part No. Part Name Qty.
A11–3 Flat Washer 2
B4–269 Button Hd. Cap Screw 2
C24–44 T–Handle 1
D28–104 Retaining Ring 1
E 390–11–12 Foam Pad 1
F 1060–1–152 Disc 1
H 1060–1–154 Split Ring 1
J 1060–1–155 Ball Post 1
K 1060–1–159 Leg Support Bar 1
L 1068–56–13 Arm Board Cover 1
M 1068–56–15 Arm Board 1
N 1068–56–16 Restraint Strap Assembly 2
P 8812–670–000 Jaw 1
R 7900–1–102 Adhesive Velcro Pile 4”
S 1068–54–10 Direct Clamp 1
