Stryker 1069 - Page 84

page 6–45

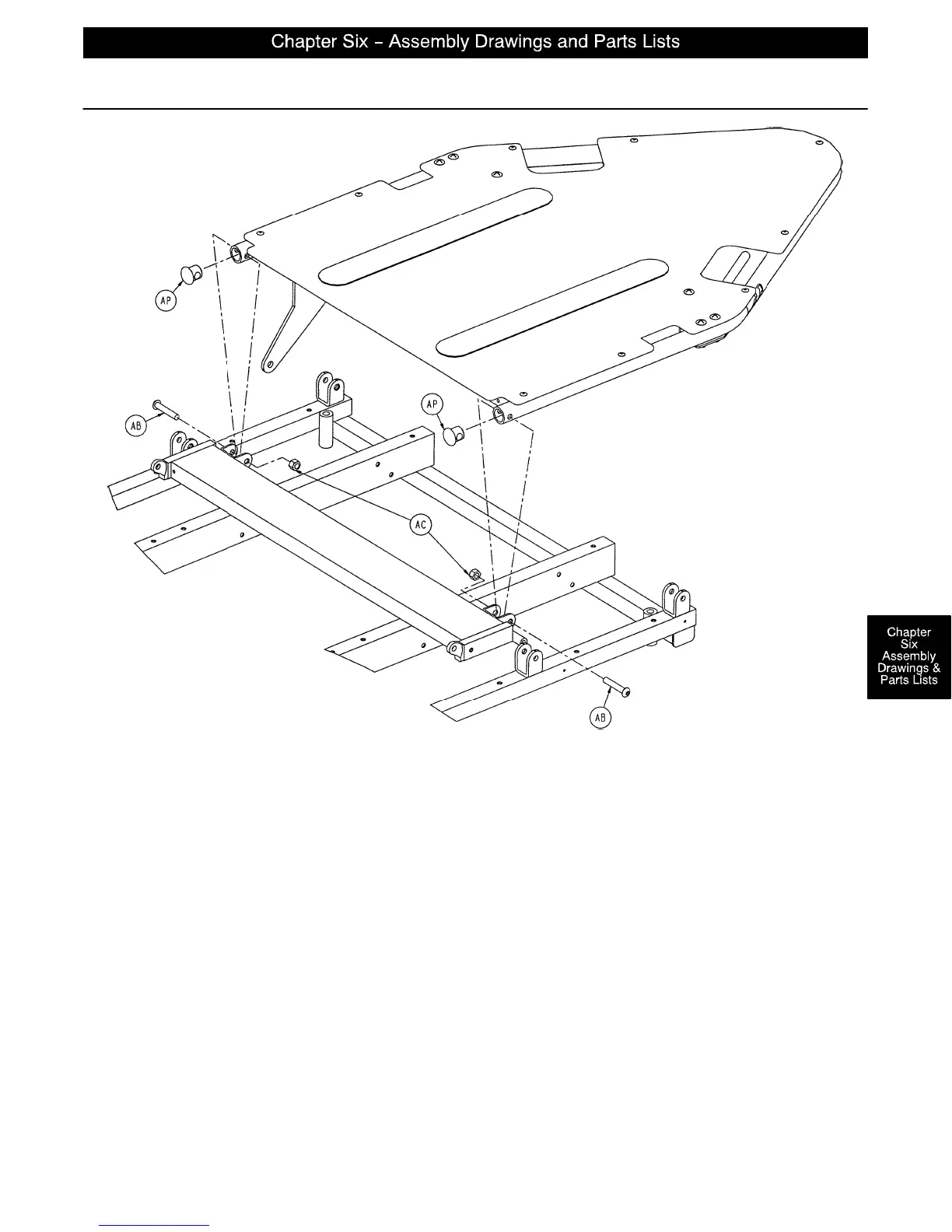

1069–32–20 Zero Articulating Pneumatic Fowler Assembly
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A 1069–31–11 Rivet 4 V 14–87 Nylon Flat Washer 2
B 1069–31–41 Handle Pivot Bracket, Lt. 1 W 11–180 Steel Flat Washer 2
C 1210–31–103 “L” Bracket 2 X 16–28 Nylock Nut 4
D 1069–31–46 Handle Pivot Bracket, Rt. 1 Y 13–18 Ext. Tooth Lock Washer 2
E 1069–31–200 Red Handle Cover 2 Z 7–19 Truss Hd. Screw 2
F 1069–31–85 Handle Weldment, Rt. 1 AA 38–436 Extension Spring 2
G15–3 Jam Nut 4 AB 4–54 Button Hd. Screw 2
H7–50 Truss Hd. Screw 2 AC 16–11 Nylock Nut 2
J 1069–31–31 Handle Adj. Link, Short 1 AD 15–59 M10 Nut 2
K 1069–31–32 Handle Adj. Link, Long 1 AE 360–31–77 Pneumatic Cylinder 2
L 1069–31–80 Handle Weldment, Lt. 1 AF 52–86 Nyliner 4
M 1069–32–65 Fowler Skin 1 AG 11–63 Flat Washer 4
N 7900–1–102 Velcro Pile 2 AH 3–37 Hex Hd. Cap Screw 2
P25–50 Pop Rivet 10 AJ 4–323 M10 Soc. Hd. Cap Scr. 2
Q7–42 Truss Hd. Screw 4 AK 16–90 M10 Nylock Nut 2
R 1069–32–60 Fowler Weldment 1 AL 1069–31–36 Cylinder Mounting Box 2
S 1069–31–12 Barrel Nut 4 AM 1069–60–91 Fowler Rel. Label, Rt. 1
T7–62 Truss Hd. Screw 2 AN 1069–60–92 Fowler Rel. Label, Lt. 1
U 3001–300–99 Fowler Pivot Bushing 2 AP 1069–31–13 Hole Plug 2
