Stryker EPIC II - EPIC II PLUS Battery Assembly

Return To Table of Contents
104 2030-809-002 REV D www.stryker.com

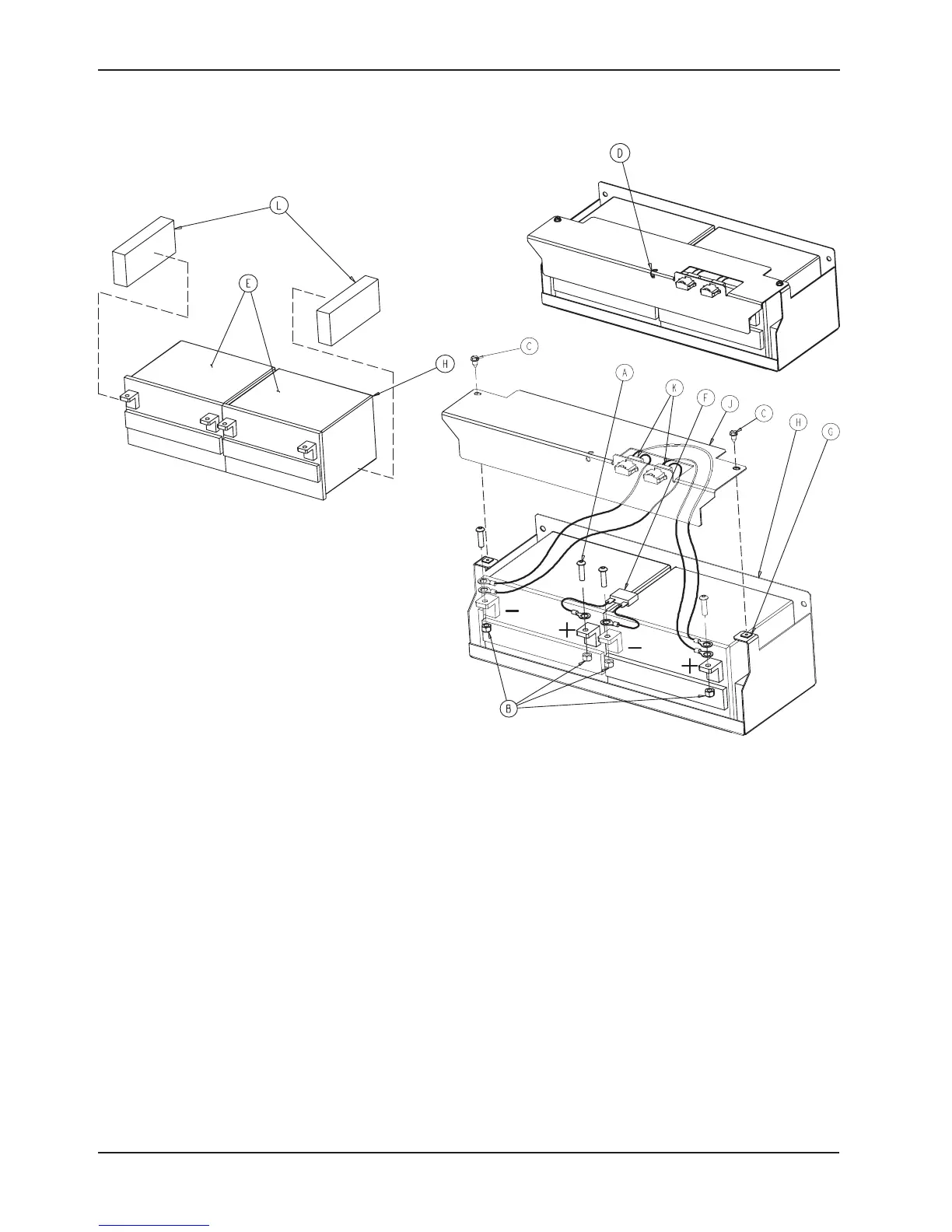

WIRING VIEW
EPIC II
®
PLUS Battery Assembly - 3002-001-015 (Reference Only)
Item Part No. Part Name Qty.
A 0004-046-000 But. Hd. Cap Screw 4
B 0016-028-000 Nylock Nut 4
C 0023-025-000 Hex Washer Hd. Screw 2
D 0038-151-000 Cable Tie 1
E 2040-001-070 Battery 2
F 2040-001-802 Battery Jumper Cable 1
G 3000-300-002 Push Nut 2
H 3002-001-069 Battery Tray 1
J 3002-001-091 Terminal Guard 1
K 3002-001-803 Battery Harness Cable 2
L 3002-101-043 Foam Spacer 2
EPIC II
®
PLUS Battery Assembly
3002-001-015 (Reference Only) Replacement Kit (Batteries Only) - 2040-700-013
