Stryker EPIC II - Optional EPIC; PLUS AC Crossover Board - 2040-031-900

Return To Table of Contents
36 2030-809-002 REV D www.stryker.com
Electrical System Information

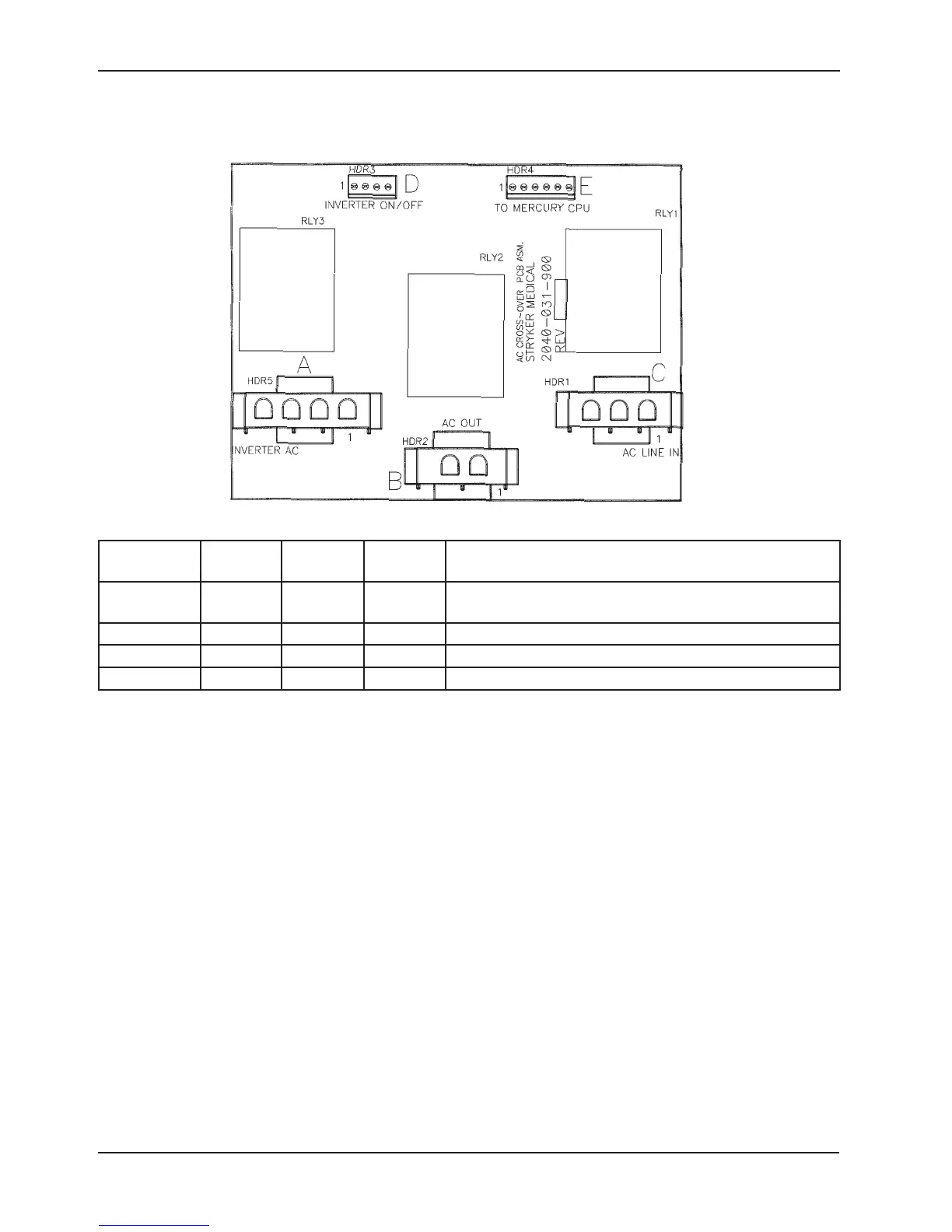

OPTIONAL EPIC II
®
PLUS AC CROSSOVER BOARD - 2040-031-900
CONNECTOR
LOCATION
VOLTAGE
POSITIVE
LED
NEGATIVE
LED
DESCRIPTION
HDR 5 (A) 120 VAC Pin 4 Pin 1
AC Input to Board from the Inverter with the Power Cord
unplugged
HDR 1 (C) 120 VAC Pin 3 Pin 1 AC Input to Board from the Wall receptacle.
HDR 2 (B) 120 VAC Pin 2 Pin 1 AC Output of Board to Main Power.
HDR 4 (E) +5 VDC Pin 4 Pin 1 +5 VDC when AC is Unplugged from the Wall receptacle.
