FOOTBOARD MODULE REPLACEMENT
Tools Required:
• #2 Phillips Screwdriver
Procedure:
1. Unplug the bed power cord from the wall socket. Remove the Footboard Lid (see above).
Note
Regardless of which module is being replaced, the farthest module to the right must be removed first.
2. Pull the module out of the footboard and disconnect the cable from the module (A).
3. Reverse the above steps to install the new module.
CAUTION

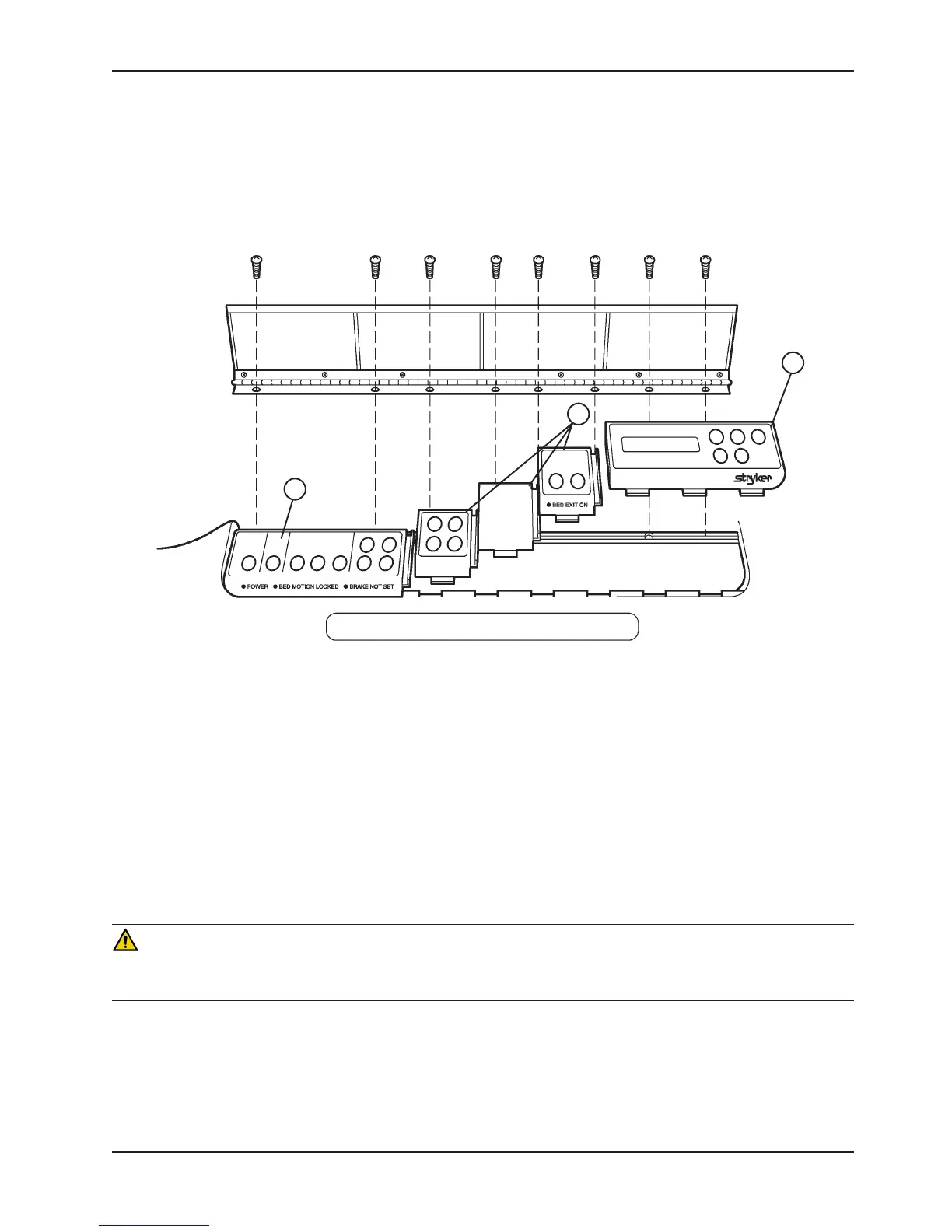

The modules must be overlapped as shown in the illustration to prevent fluids from entering the board cavity and causing
damage.
