74 2030-809-002 REV D www.stryker.com
FOOTBOARD INTERFACE PLUG REPLACEMENT
Tools Required:
• #2 Phillips Screwdriver
Procedure:
1. Unplug the bed power cord from the wall socket.
2. Remove the footboard from the bed to access the bottom of the board.
3. Properly ground yourself (Refer to Static Discharge Precautions procedure).
4. Using a #2 Phillips screwdriver, remove the eight screws holding the footboard door to the footboard and remove
the door.
5. Using a #2 Phillips screwdriver, remove the two screws (A) holding the plug to the footboard.
6. Disconnect the cable from the footboard module cable. Note proper placement of the cable so it will be reconnected
properly.
7. Reverse the above steps to install the new interface plug.
CAUTION
Be sure to install the plug with the flat edge (B) at the top left, as shown in the illustration, or the footboard interface plug
will not mate properly with the bed and damage to the plug or footboard could result.

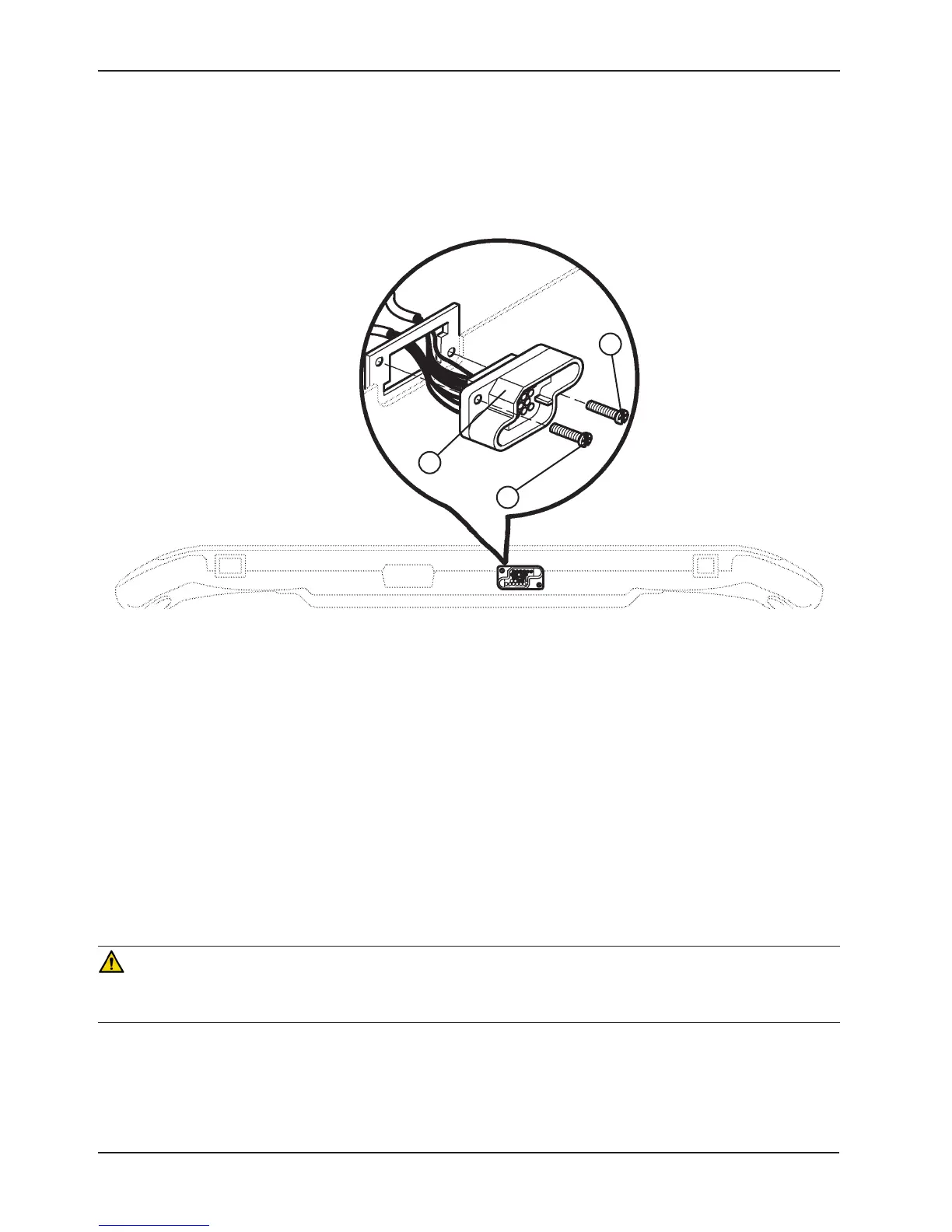

BOTTOM VIEW OF FOOT BOARD
A
B
A
Service Information
