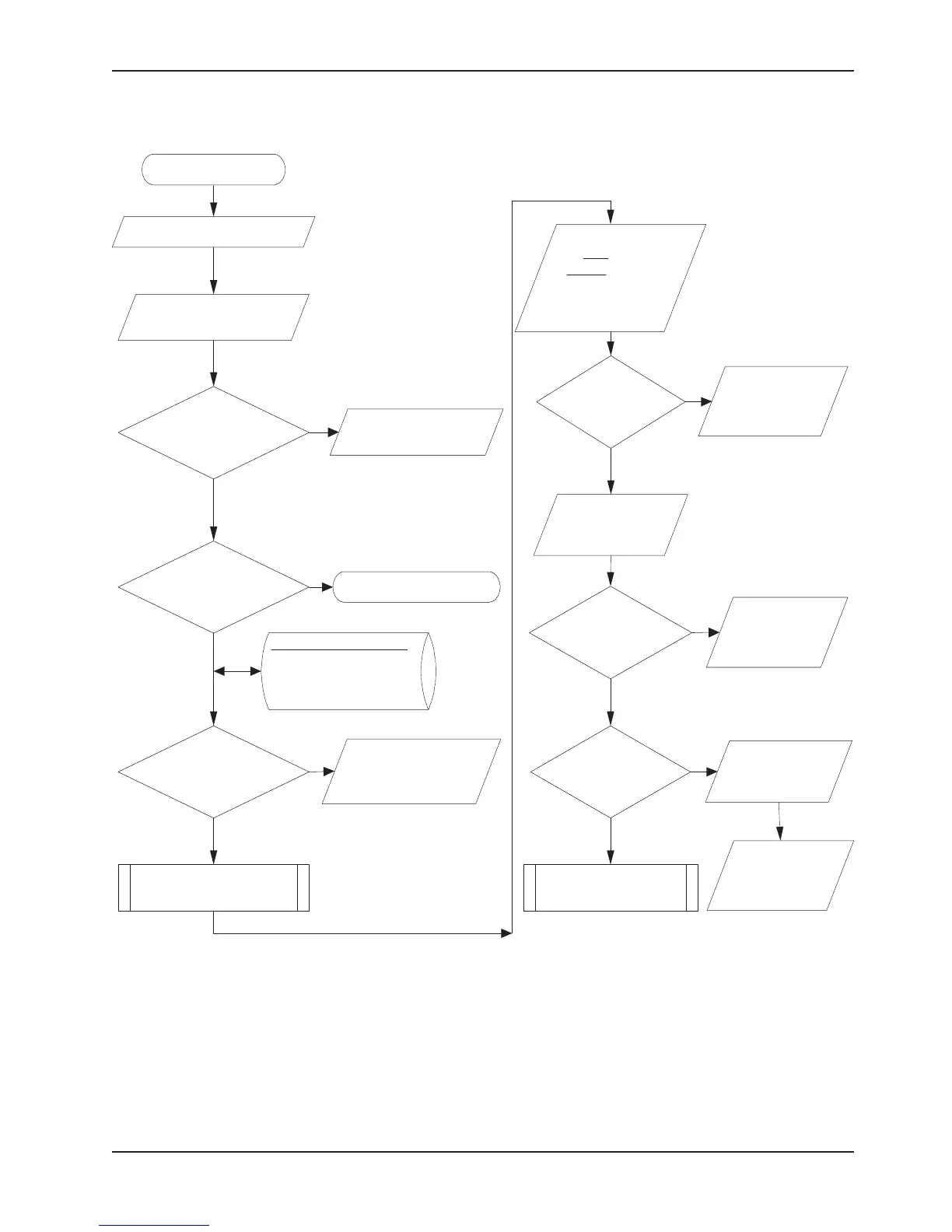

INVERTER/CHARGER, BATTERY & ZOOM
®
TROUBLESHOOTING
Bed is not working
Is the Power LED ON ?
Are all the Non−Zoom
functions working ?
Is the Bed moving
Display board: Battery status
3 LEDs Flash: >66 %
2 LEDs Flash: 33−66%
1 LED Flash: <33%
Put the Bed in
Drive mode
Release the Brake
Squeeze the
Handle Bar
switches
Inverter is Good
Check Fuse F1 in
Power supply board:
Replace Inverter/
Charger assembly
Is
at least one LED Flashing
during start−up process
?
Recalibrate the
Potentiometer
(Control bar
POT Burn−in)
Is the Bed driving in
opposite directions
?
Check the
Motor wire
connectors
reversal
Push/Pull the
Zoom Handle
Bar
Is the Zoom
working properly?
Check the
Battery wire
connectors
reversal
Replace
Inverter/
Charger
assembly
Put ON/OFF Switch in
ON position
Zoom is Good
Ref. Battery and Charger Module
Yes
No
Yes
Yes
Yes
Yes
Yes
No
No
No
Start
No
Refer to Bed
Troubleshooting GUide
No
Troubleshooting Guide
