Stryker EPIC II - Brake Bar Assembly - 3006-200-335

Return To Table of Contents
www.stryker.com 2030-809-002 REV D 91
Item Part No. Part Name Qty.
A 0005-018-000 Carriage Bolt 4
B 0016-035-000 Nylock Hex Nut 6
C 3000-200-318 Guide Pin 2
D 3002-200-310 Brake Bar Return Spring 2
E 3000-200-324 Brake Bar Bumper 2
F 3003-200-323 Brake Bar 1
G 3006-200-327 Machine Toothed Brake Ring 2

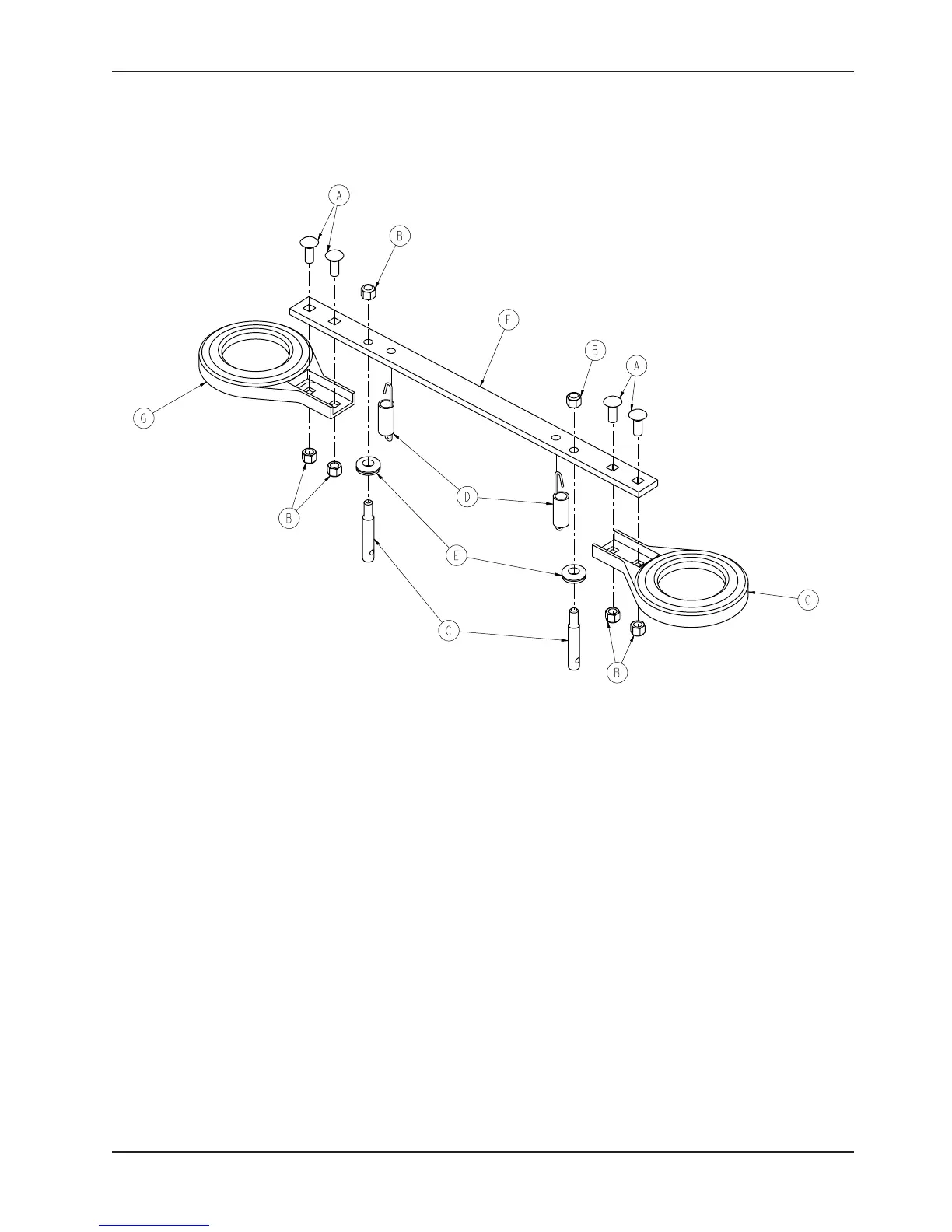

Brake Bar Assembly - 3006-200-335
Torque item B to
20 - 30 ft - lbs
Torque item B to
20 - 30 ft - lbs
Torque item B to
20 - 30 ft - lbs
Torque item B to
20 - 30 ft - lbs
