34 2030-809-002 REV D www.stryker.com
Electrical System Information

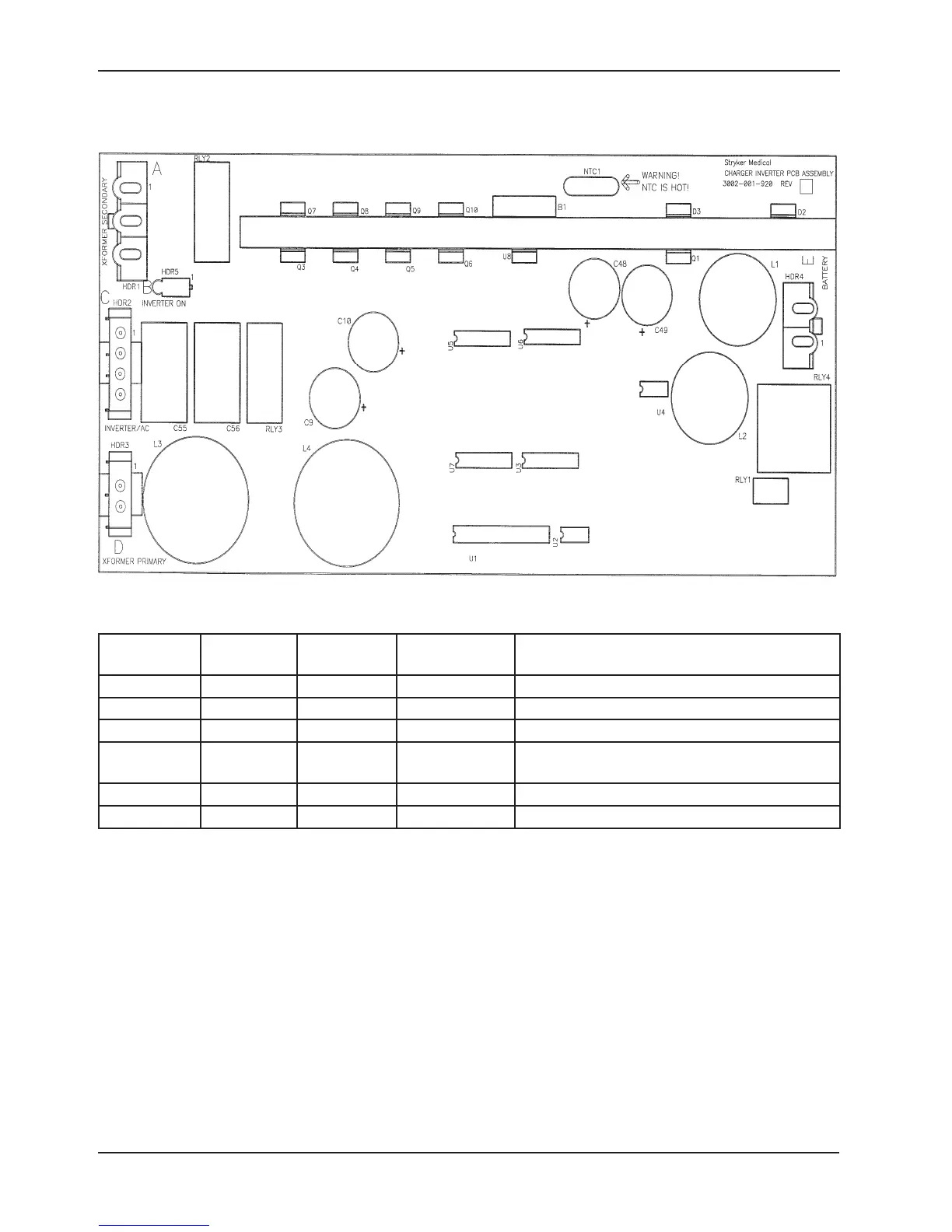

OPTIONAL EPIC II
®
PLUS INVERTER/CHARGER BOARD - 2030-001-030
CONNECTOR
LOCATION
VOLTAGE
POSITIVE
LED
NEGATIVE LED DESCRIPTION
HDR 4 26 VDC Pin 2 Red Pin 1 Black From Battery - unplugged
HDR 1 22 VAC Pin 3 Red Pin 2 Secondary from Transformer - plugged in
HDR 1 34 VAC Pin 1 Green Pin 2 Brown Secondary from Transformer - plugged in
HDR 2 110 -14 0 VAC Pin 4 Brown Inverter Module
Pin 3 Blue
Unplugged
HDR 2 110V Pin 2 Brown Pin 1 Blue From Wall - plugged in
HDR 3 120V Pin 2 Plug-In Pin 1 Wall Voltage - plugged in
