Electrical System Information

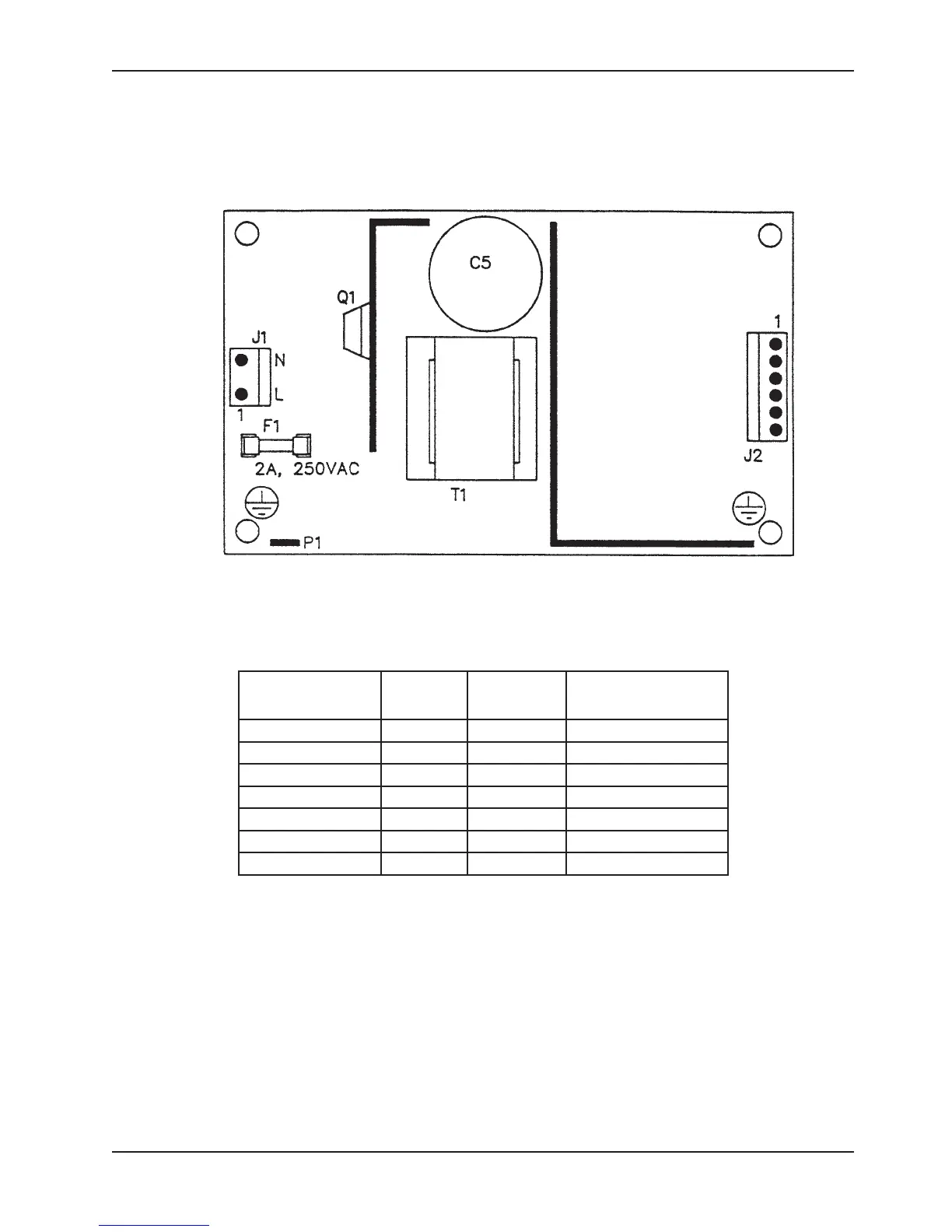

POWER SUPPLY - 0000-059-157
CONNECTOR
LOCATION
VOLTAGE
POSITIVE
LED
NEGATIVE LED
J1 120V Pin 1 Pin 2
J2 12V Pin 1 Pin 4 or 5
J2 5V Pin 2 Pin 4 or 5
J2 5V Pin 3 Pin 4 or 5
J2 GND Pin 4 Pin 4 or 5
J2 GND Pin 5 Pin 4 or 5
J2 -12V Pin 6 Pin 4 or 5
