Stryker EPIC II - EPIC II PLUS Option AC Crossover Board Replacement

Return To Table of Contents
66 2030-809-002 REV D www.stryker.com
EPIC II
®
PLUS OPTION AC CROSSOVER BOARD REPLACEMENT
Tools Required:
• T27 Torx
• 1/2” Combination Wrench
• #2 Phillips Screwdriver
• Wire Cutters
• Small Flat Blade Screwdriver
• Needle Nose Pliers
• 5/16” Nut Driver
Procedure:
1. Raise the litter and the head end to the full up position.
2. Remove the headboard from the bed.
3. Unplug the power cord from the wall socket and push the battery power on/off switch to the “Off” position.
4. Using a 5/16” nut driver, remove the screw (A) holding the power cord clamp to the bumper weldment and remove
the clamp from the bumper.
5. Using a T27 Torx, remove the four bolts (C) at the head end of the bed holding the control bar mounting bracket
to the head end (see Figure 2).

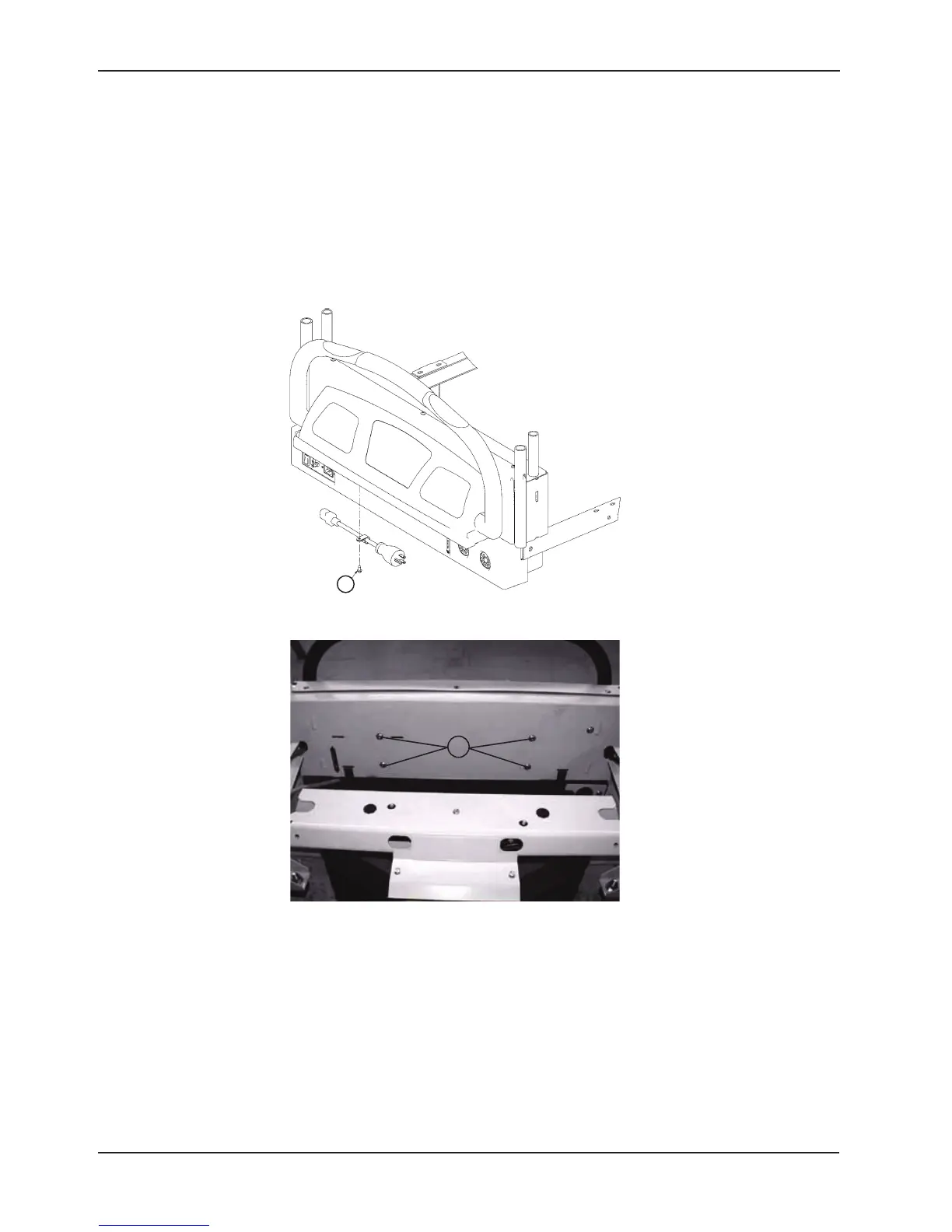

A
FIGURE 1
FIGURE 2
C
Service Information
