EPIC II
®
PLUS OPTION AC CROSSOVER BOARD REPLACEMENT (CONTINUED)
PROCEDURE (CONTINUED):
6. Using a #2 Phillips screwdriver, remove the three screws (D) holding the control bar cover to the head end of the
bed (see Figure 3).
7. Using a T-27 Torx, remove the 2 bolts holding the AC crossover board cover to the head end frame and remove
the cover.
8. Disconnect all wires from the AC crossover board.
9. Using needle nose pliers, release the four mounting stand-offs from the board and remove the board.
10. Reverse steps 9 - 12 to install the new board.
11. Reverse steps 1 - 8 of the control bar potentiometer replacement procedure to reassemble the bed.

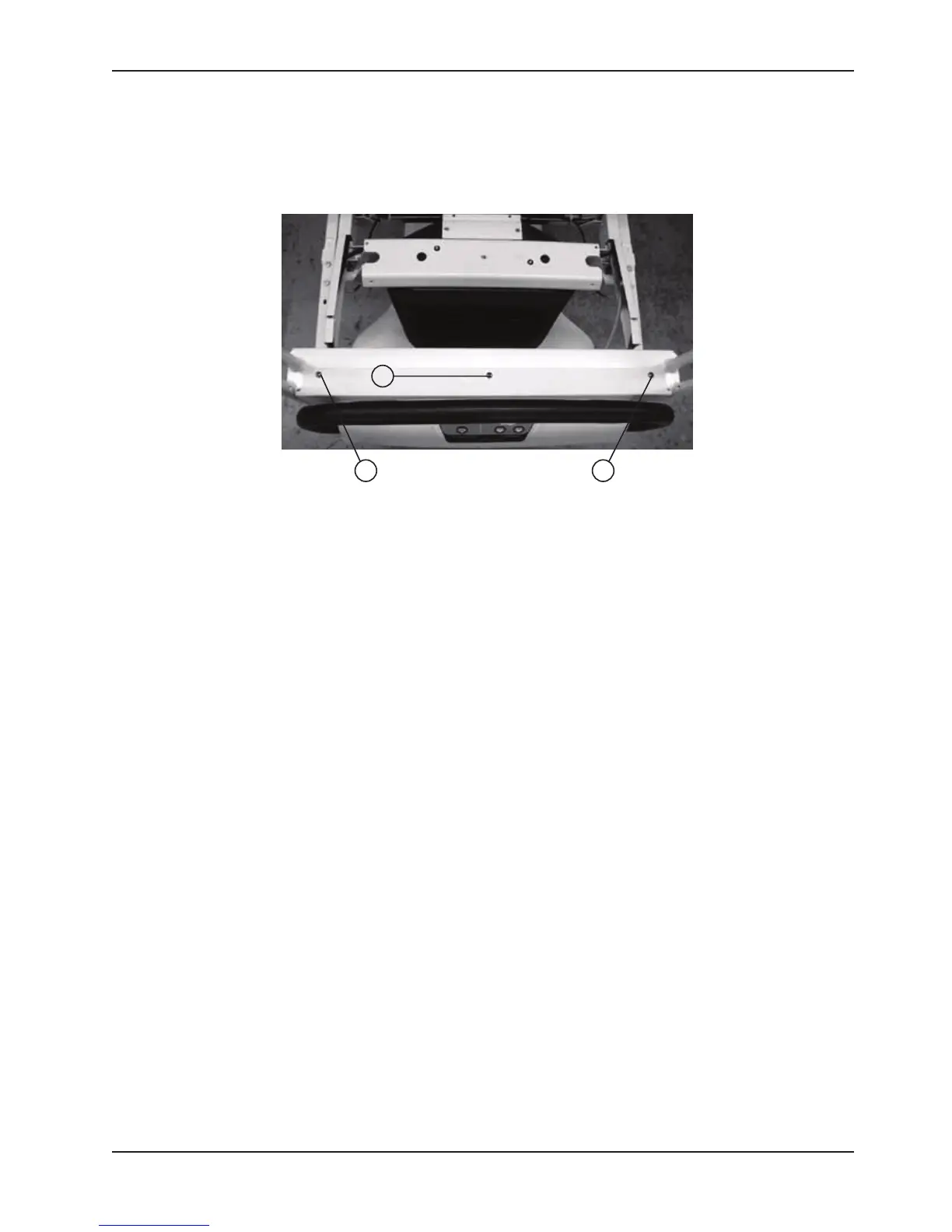

FIGURE 3
D
