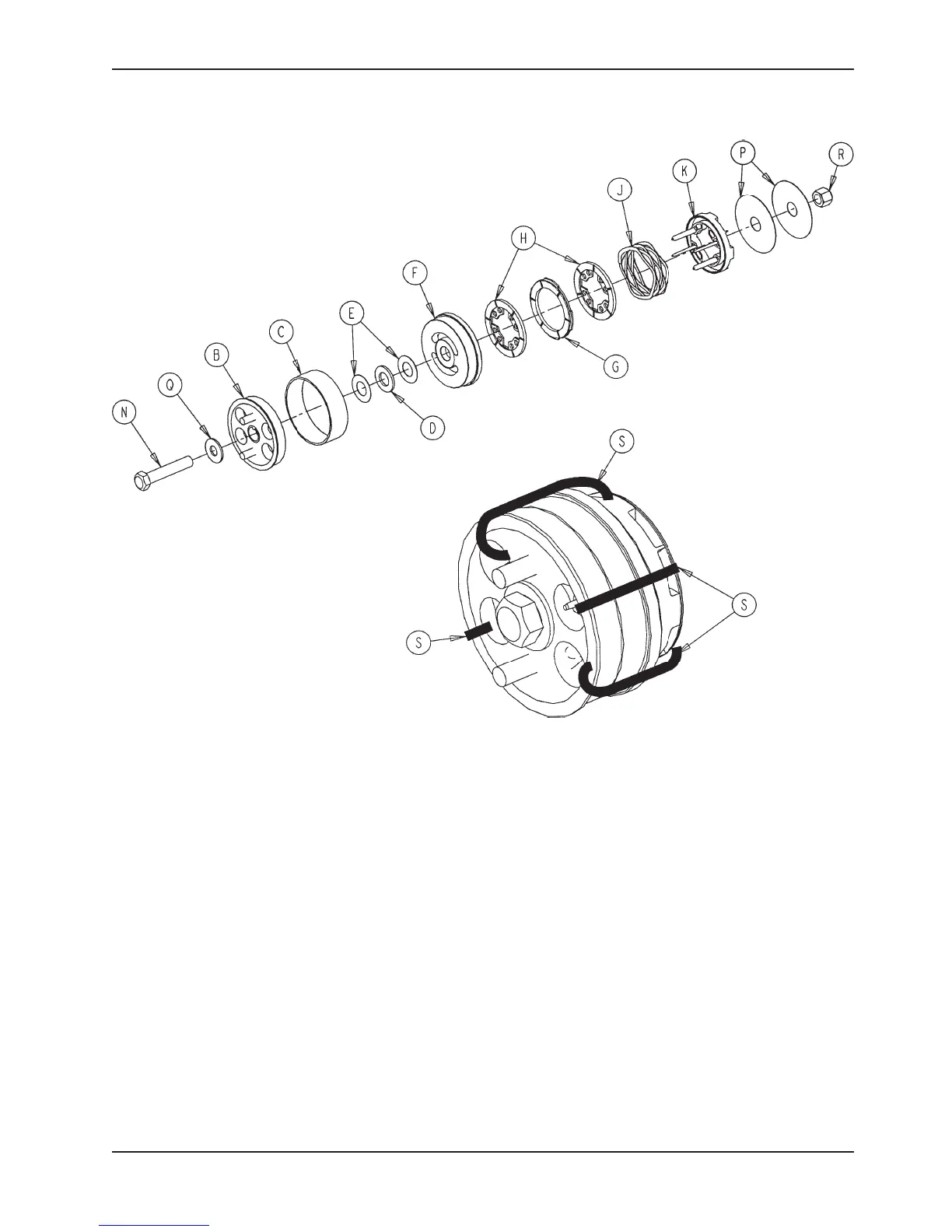

Fowler Brake Kit Assembly - 3001-300-775 (Reference Only)
Item Part No. Part Name Qty.
B 3001-300-455 CPR Coupler Assembly 1
C 3000-300-465 CPR Clutch Spring 1
D 0081-212-000 Thrust Needle Roller Brg. 1
E 3000-200-224 Idler Gear Thrust Washer 2
F 3001-300-569 Brake Cup 1
G 3001-300-552 CPR Brake Disc 1
H 3001-300-551 CPR Spring Cup 2
J 3001-300-563 CPR Brake Spring 1
K 3001-300-570 CPR Spring Cup 1
N 0003-064-000 Hex Hd. Cap Screw 1
P 3000-200-245 Flat Washer 2
Q 0011-193-000 Heavy Flat Washer 1
R 0016-012-000 Nylock Nut 1
S 3000-300-138 Wire Tie 4
