Electrical System Information

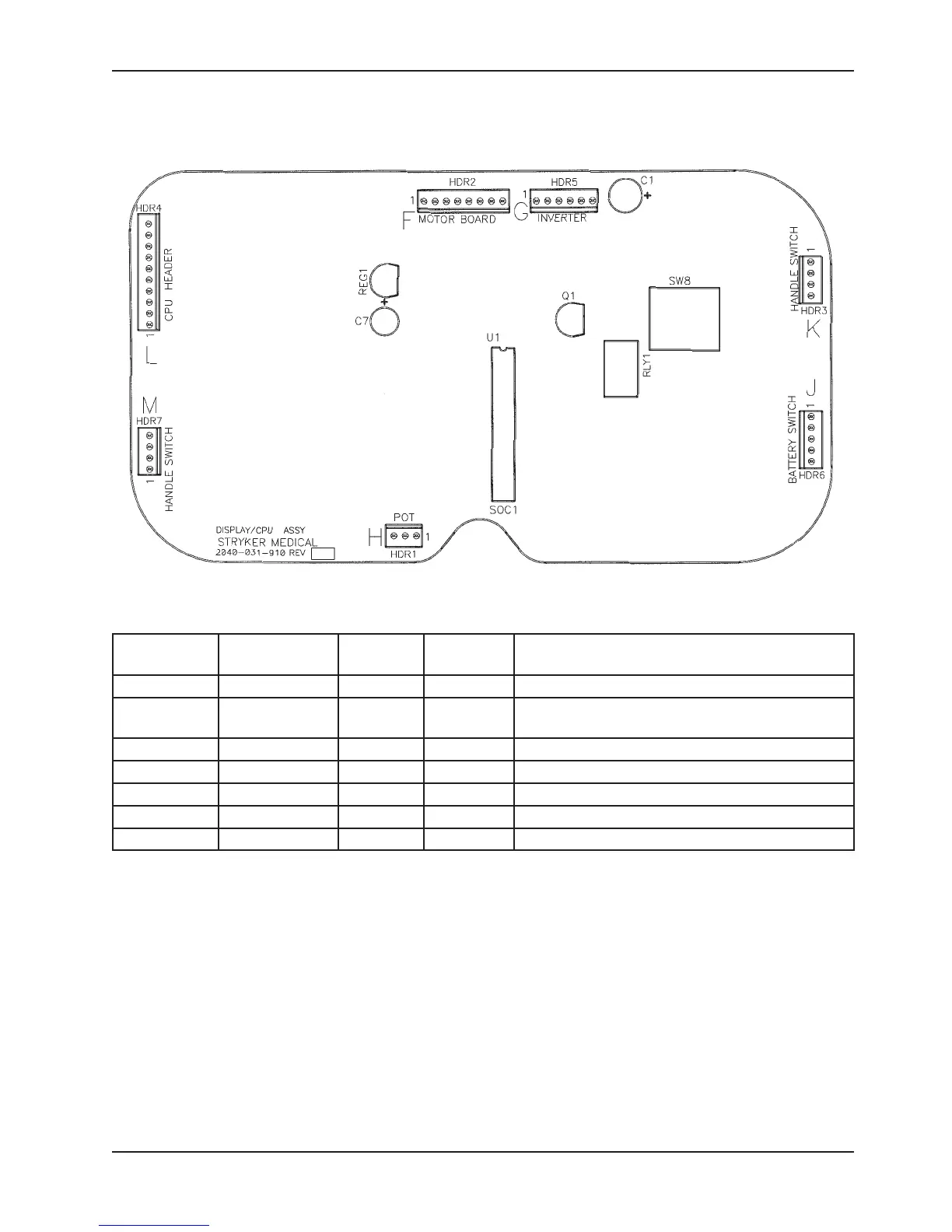

OPTIONAL EPIC II
®
PLUS DISPLAY/CPU - 2030-031-910
CONNECTOR
LOCATION
VOLTAGE
POSITIVE
LED
NEGATIVE
LED
DESCRIPTION
HDR 1 (H) 0-5 VDC Pin 1 Pin 2 Control Pot Wiper Voltage (with Switch On)
HDR 6 (J)
Battery voltage
around 26 VDC
Pin 1 Pin 5
Battery Voltage Return from On/Off Switch (with
Switch On)
HDR 4 (L) 5 VDC Pin 9 Pin 1 Voltage from CPU
HDR 1 5 VDC Pin 1 Pin 3 DC Voltage to Pot
HDR 7 Continuity Pin 1 Pin 4 Right Hand Switch
HDR 3 Continuity Pin 1 Pin 4 Left Hand Switch
HDR 2 26 VDC Pin 3 Pin 1 Battery Voltage
