22 2030-809-002 REV D www.stryker.com

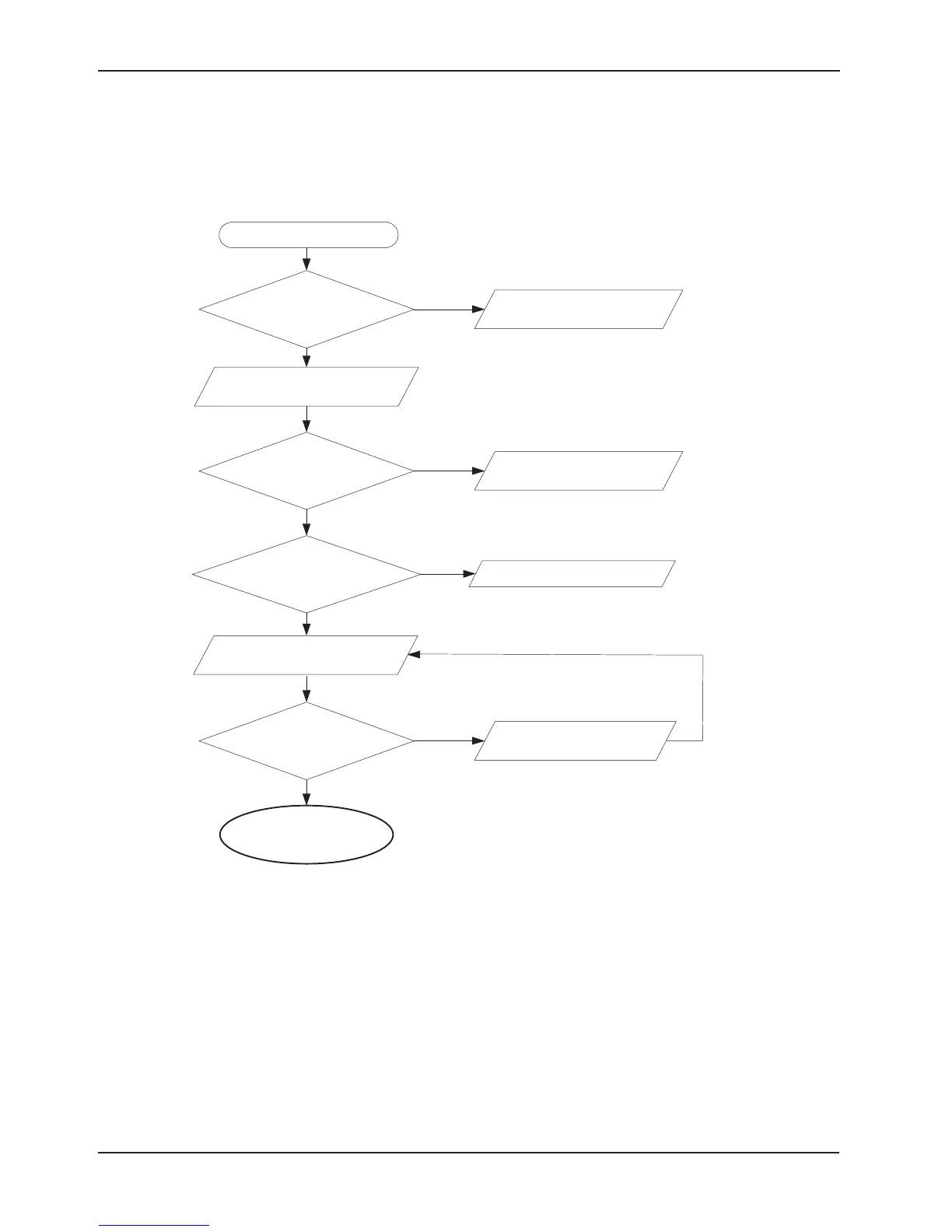

INVERTER/CHARGER, BATTERY & ZOOM
®
TROUBLESHOOTING (CONTINUED)
Connect Bed to
Wall Power (~120VAC)
Replace the Inverter
/ Charger assembly
Are the Circuit Breakers OK ?
Reset the
Circuit Breaker
Is the Input supply Voltage
(~120VAC) Good?
Is the Battery Voltage
Increasing?
Is Battery Volage Sufficient?
(> 26VDC)
Replace the Batteries
Battery and Charger Module
No
Yes
No
Yes
No
Yes
Yes
Check Wall Outlet
No
Plug Bed into Wall Socket
(For Charging/Te st)
Return Bed to Service
Troubleshooting Guide
To Next Page
