Stryker EPIC II Service Manual
4
of 1
of 1 rating
228 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Retu
rn T
o T
ab
le of C
onten
ts
19
2
2
03
0
-
8
0
9
-
0
0
2 RE
V D
ww
w.st
ryker
.com

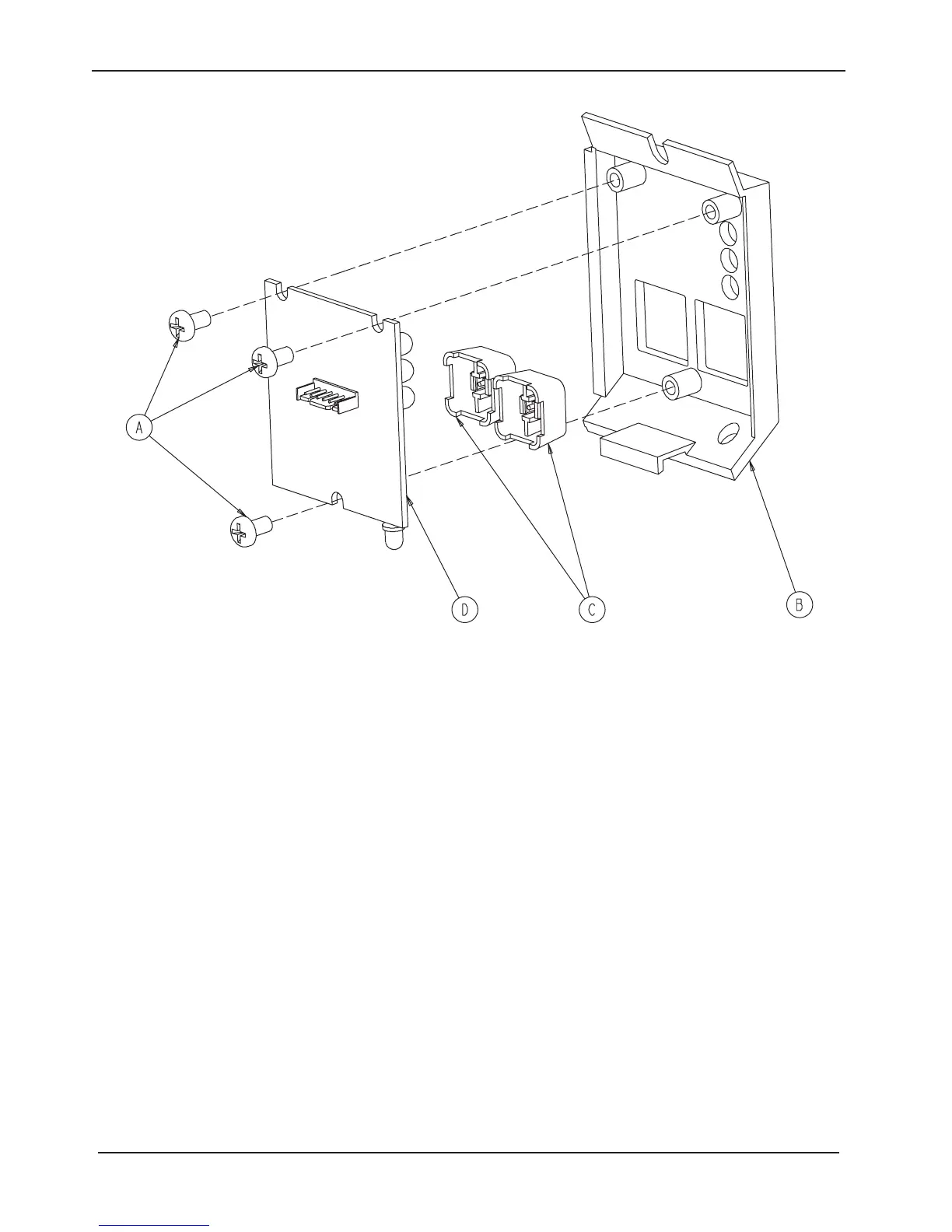

Item
Par
t
No.
Par
t
Nam
e
Qty
.
A
0
023-
087
-
000
Hi
-Low T
app
ing Screw
3
B
30
00
-508
-001
End E
xit Mo
dule Panel
1
C
30
0
1
-
40
0-953
Sw
itch
Cap
2
D
3
002-508-9
00
Bed
Ex
it
Board
1
Opt
iona
l Fo
ot
board Bed Exi
t Modu
le, Mu
lti-
Zo
ne - 30
02-5
08
-
030
191
193
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
7
Intended Use
7
Specifications
7
Mattress Specifications
7
Warning / Caution / Note Definition
8
Symbols
9
Summary of Safety Precautions
10
Ibed Awareness Option
12
Battery Backup Option - Optional Inverter Protection Features
12
Setup Procedures
13
Preventative Maintenance
14
General Information
14
Battery Charger Circuit Breaker (EPIC II ® PLUS Option)
14
Checklist
15
Cleaning
16
Troubleshooting Guide
17
Troubleshooting
21
Ibed Awareness System Error Codes
23
Error Handling
23
Logged Errors
23
Error Messages
24
Quick Reference Replacement Parts List
27
Electrical System Information
29
Standard CPU Board = 3002-407-950 / Ibed Awareness CPU Board - 3003-407-900
29
Software Configuration
31
Power Supply - 0000-059-157
33
Optional EPIC
34
PLUS Inverter/Charger Board - 2030-001-030
34
Optional EPIC
35
PLUS Display/Cpu - 2030-031-910
35
Optional EPIC
36
PLUS AC Crossover Board - 2040-031-900
36
Bed Communications Tester - 3002-045-805
37
Service Information
39
Static Discharge Precautions
39
Static Protection Equipment
39
Brake Pedal Replacement
40
Lift Motor and Capacitor Removal and Replacement
41
Lift Housing Removal and Replacement
42
Lift Potentiometer Replacement and Adjustment
43
Lift Potentiometer "Burn-In" (Standard Bed)
44
Lift Potentiometer "Burn-In" (Ibed Awareness Option)
44
Lift Motor Coupler Replacement
45
Power and Sensor Coil Cord Replacement
46
Optional Battery Removal and Replacement
48
Scale System Diagnostics and Calibration (Standard Bed)
49
Optional Ibed Awareness Maintenance Menu Guide
51
Service Information (Continued)
51
Maintenance Menu Items
51
Load Cell Replacement
58
Head End Motor Removal and Replacement
59
Knee Motor Removal and Replacement
60
Power Supply Removal and Replacement
61
CPU Board Removal and Replacement
62
Fowler Potentiometer Replacement
62
Fowler Potentiometer "Burn-In" Procedure
63
Fowler Potentiometer "Burn-In" Procedure (Ibed Awareness Option)
63
Optional Smart TV Interface "Burn-In" Procedure
64
Optional Smart TV Interface "Burn-In" Procedure (Ibed Awareness Option)
65
EPIC II ® PLUS Option AC Crossover Board Replacement
66
EPIC II ® PLUS Option Display/Cpu Board Replacement
67
Head and Foot Siderail Cover Removal
69
Head and Foot Molded Siderail Replacement
70
Footboard Lid Removal
72
Nurse Call 9V Battery Replacement
72
Footboard Module Replacement
73
Footboard Interface Plug Replacement
74
Base Assembly and Options
75
Lift Assembly
84
Motor Isolation Plate Assembly - 3001-201-214
88
Brake Shaft Assembly, Left - 3001-200-340
89
Brake Shaft Assembly, Right - 3001-200-345
89
Brake Crank Assembly - 3002-201-330
90
Brake Bar Assembly - 3006-200-335
91
Swivel Lock Caster Assembly, Opal - 2030-200-060
92
Steer Swivel Caster Assembly, Opal - 2030-200-065
93
6" Molded Wheel Assembly - 5000-002-010
94
Base Uni-Pan Cover Assembly - 3002-300-010
95
EPIC II ® PLUS, Optional Base Assembly
97
EPIC II ® PLUS, Optional Base Power Assembly - 2030-001-030
102
Foot End Bottom Cover Assembly - 3001-200-022
103
EPIC II ® PLUS Battery Assembly
104
Litter Assembly
105
Litter Assembly, Ibed Awareness Option, Std. Components
121
Litter Assembly, Ibed Awareness Option W/Scale & Bed Exit
128
Litter Ass'y, Ibed Awareness Option W/Scale/Bed Exit/Zone Cntrl
130
EPIC II ® PLUS, Optional Litter Assembly
132
EPIC II ® , no Optional 120V Outlet Assembly
138
EPIC II ® , Optional 110V Outlet Assembly
139
EPIC II ® PLUS, no Optional 110V Outlet Assembly
141
EPIC II ® PLUS, Optional 110V Outlet Assembly
143
Box Assembly - 2035-031-220
146
Actuator Box Cover Assembly
148
Fowler Brake Kit Assembly - 3001-300-775
149
Head End Siderail Assembly
150
Head End Siderail Outer Panel Assembly - 2032-400-050
158
Head End Siderail Inner Panel Assembly
159
Timing Link Assembly, Head End, Left - 3003-402-005
160
Timing Link Assembly, Head End, Right - 3003-402-010
161
Siderail Latch Assembly, Head End, Left - 3002-400-070
162
Siderail Latch Assembly, Head End, Right - 3002-400-075
163
Siderail Latch Assembly, Head End, Left - 3003-400-070
164
Siderail Latch Assembly, Head End, Right - 3003-400-075
165
Siderail Bypass Detent Clip Assembly
166
Siderail Assembly, Ibed Awareness Option, Head End, Left - 2032-403-105
167
Siderail Assembly, Ibed Awareness Option, Head End, Right - 2032-403-205
168
Switch Assembly, Ibed Awareness Option, Head End
169
Foot End Siderail Assembly
170
Timing Link Assembly, Foot End, Left - 2032-401-030
174
Timing Link Assembly, Foot End, Right - 2032-401-025
175
Siderail Release Lever Assembly, Left - 3002-400-055
176
Siderail Release Lever Assembly, Right - 3002-400-065
177
Siderail Assembly, Ibed Awareness Option, Foot End, Left
178
Siderail Assembly, Ibed Awareness Option, Foot End, Right
179
Switch Assembly, Ibed Awareness Option, Foot End
180
Headboard Assembly - 2035-130-010
181
Footboard Assembly - 2030-135-010
182
Footboard Assembly, no Options - 2030-135-011
183
Footboard Assembly, Scale Option - 2030-135-013
184
Footboard Assembly, Bed Exit Option - 2030-135-012
185
Footboard Ass'y, Bed Exit W/Zone Control Option - 2030-135-015
186
Footboard Assembly, Bed Exit/Scale Option - 2030-015-014
187
Footboard Ass'y, Scale/Bed Exit W/Zone Control Option - 2030-015-016
188
Footboard Main Module Assembly - 2030-235-020
189
Optional Footboard Emergency Drop/Cardiac Chair Module
190
Optional Footboard Bed Exit Module, Single Zone - 3001-508-030
191
Optional Footboard Scale Module Assembly - 3002-507-030
193
Footboard Assembly, Ibed Awareness Option
194
Footboard Assembly, Ibed Awareness Option W/ Bed Exit
196
Footboard Assembly, Ibed Awareness Option W/ Zone Control
197
Pendants Assembly
198
Optional Removable I.V. Pole Assembly - 3000-300-080
199
Optional Head End 2-Stage I.V. Assembly - 2035-112-000
200
Optional Dual Head End 2-Stage I.V. Assembly - 2035-113-000
201
2-Stage I.V. Pole - 2035-112-010 & 2035-113-011
202
Pole Latch Assembly - 0785-035-103
203
Optional Fowler X-Ray Cassette Holder Assembly - 2032-140-010
204
Optional I.V. Pole Transducer Mount Assembly - 2035-018-010
205
Optional Defibrillator Tray Assembly - 2025-120-010
206
Optional Pump Rack Assembly - 2040-111-000
207
Optional Upright Oxygen Bottle Holder - 2025-150-010
208
Optional Bed Extender Pad - 2025-040-010
209
Optional Siderail Pad Set - 3003-336-020
210
Recycling Passport
211
EMC Information
220
Warranty
224
Limited Warranty
224
To Obtain Parts and Service
224
Service Contract Coverage
224
Return Authorization
225
Damaged Merchandise
225
International Warranty Clause
225
