Stryker EPIC II Service Manual

Return To Table of Contents
38 2030-809-002 REV D www.stryker.com
Electrical System Information
Pin 1 Option 2 Common
Pin 2 Read Light
Pin 3 Room Light
Pin 4 Speaker High
Pin 5 Pot Wiper
Pin 6 Radio Common
Pin 7 Nurse Call Interlock
Pin 8 Audio Transfer -
Pin 9 Audio Transfer +
Pin 10 Interlock +
Pin 11 Interlock -
Pin 12 Spare
Pin 13 Options 3 Common
Pin 14 Pot Low Common
Pin 15 Pot High Common (Std.)/Audio (STV)
Pin 16 Nurse Answer Light +
Pin 17 Option 1 NO/NC
Pin 18 Option 1 Common
Pin 19 Nurse Call Light +
Pin 20 Option 2 NO/NC
Pin 21 Option 3 NO/NC
Pin 22 Option 3 A NO/NC
Pin 23 Option 2 A Common
Pin 24 Option 2 A NO/NC
Pin 25 Nurse Call +
Pin 26 Nurse Call NO/NC
Pin 27 Room/Read Light Common
Pin 28 Nurse Call Light -
Pin 29 Nurse Answer Light -
Pin 30 Priority NO/NC
Pin 31 Priority Common
Pin 32 Option 3 A Common
Pin 33 TV - (Std.)/Data (STV)
Pin 34 TV + (Std.)/(STV)
Pin 35 Speaker Low Common
Pin 36 Audio Shield
Pin 37 Radio NO/NC

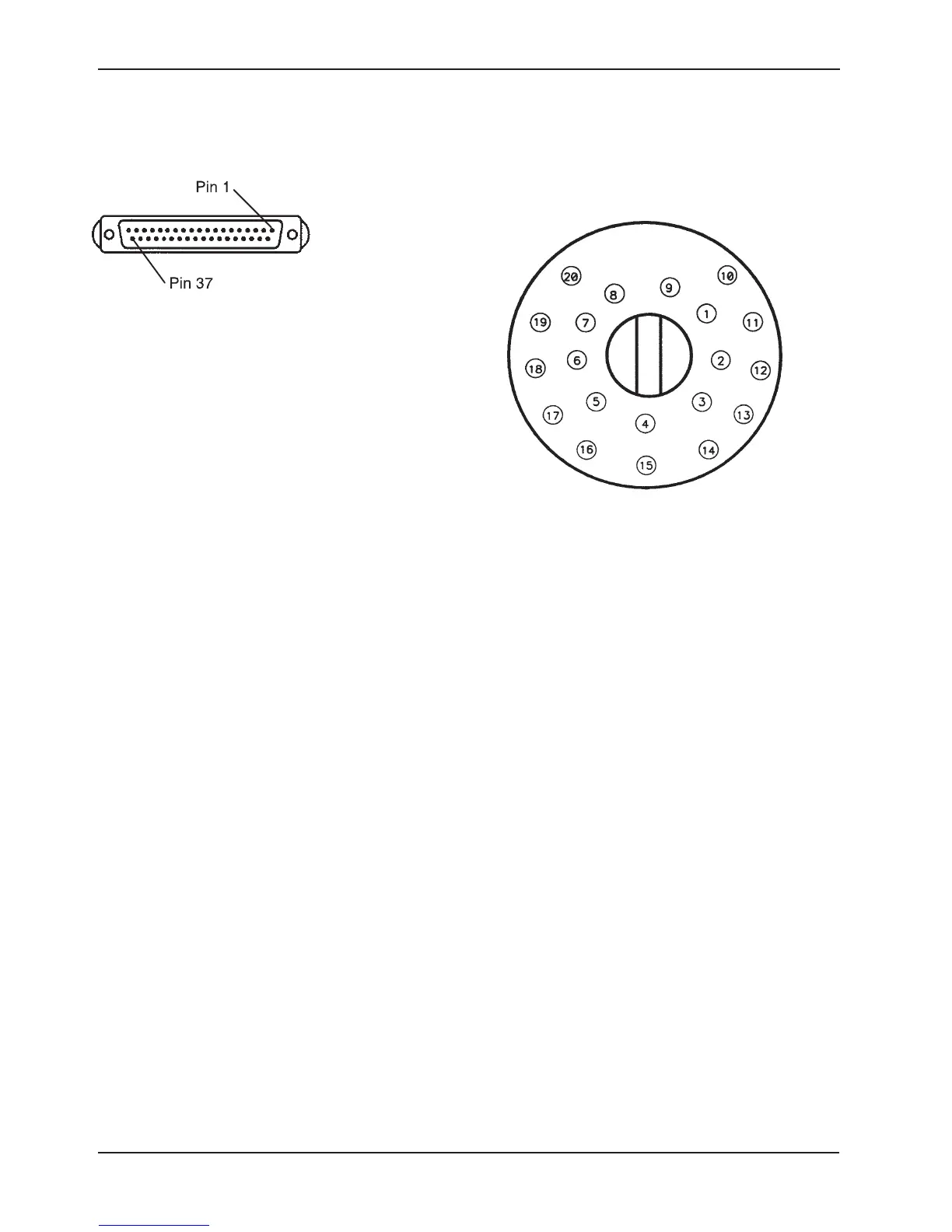

37−PIN CONNECTOR
1 Scan Line
2 Audio (-)
3 Nurse Call (+)
4 +5 VDC
5 Scan Line
6 Scan Line
7 Nurse Call (-)
8 TV Channel Up
9 Backlight
10 Audio (+)
11 Gatch Up/Fowler In/Foot Up/DMS Firm
12 Gatch Down Fowler ut/Foot Out/DMS Soft
13 Fowler Up/Trend In
14 Fowler Down/Trend Out
15 Audio Shield
16 Not Used - Socket Filled
17 Bed Up
18 Ground
19 Read Light/Bed Down
20 Room Light
STRYKER PENDANT PORT
