GENERAL DESCRIPTION
I
MECHANICAL

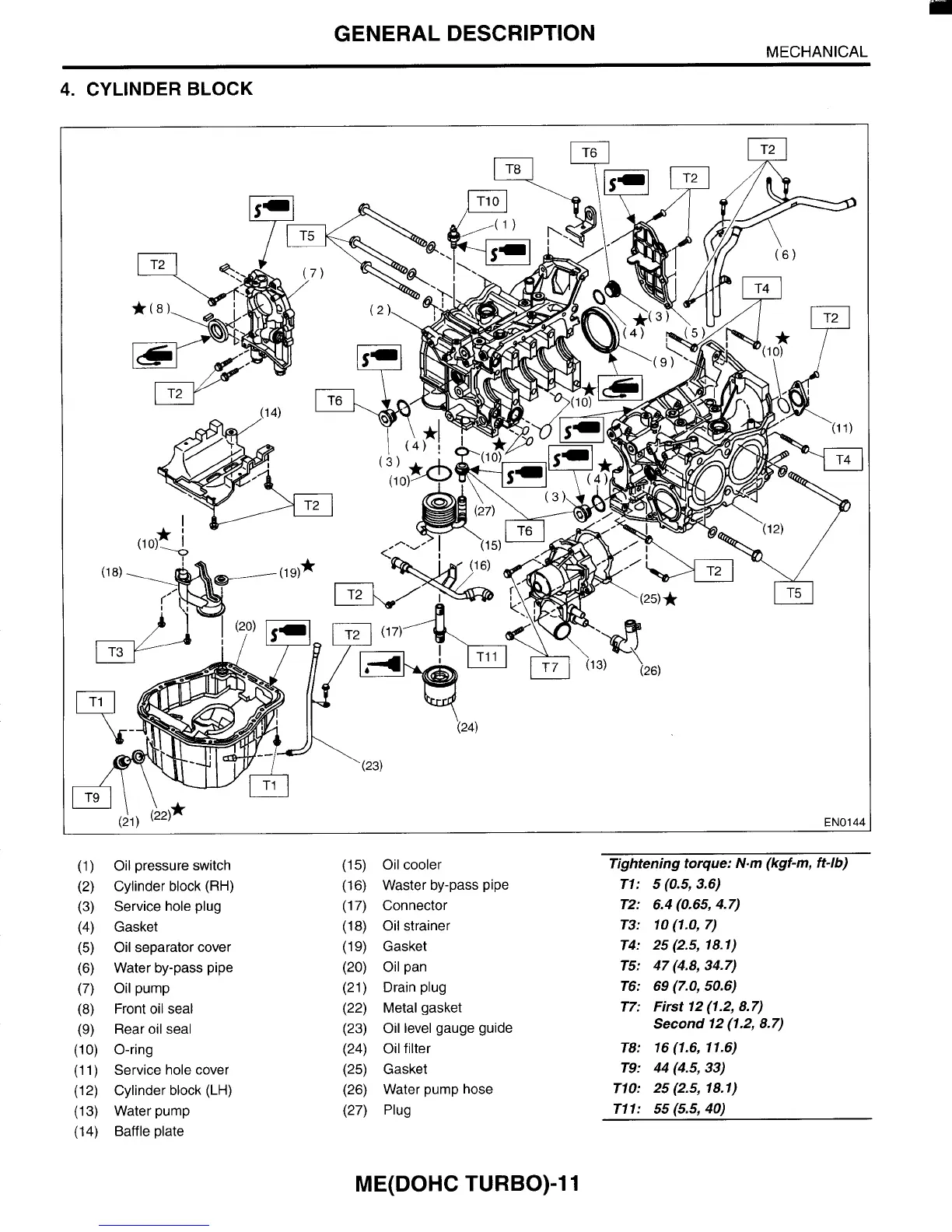

4. CYLINDER BLOCK
EN0144
Oil pressure switch
Cylinder block
(RH)
Service hole plug
Gasket
Oil separator cover
Water by-pass pipe
Oil pump
Front oil seal
Rear
oil seal
O-ring
Service hole cover
Cylinder block
(LH)
Water pump
Baffle plate
Oil cooler
Waster by-pass pipe
Connector
Oil strainer
Gasket
Oil pan
Drain plug
Metal gasket
Oil level gauge guide
Oil filter
Gasket
Water pump hose
Plug
Tightening torque: N.m (kgf-m, ft-lb)
T1: 5 (0.5, 3.6)
T2: 6.4 (0.65, 4.7)
T3: lO(1.0, 7)
T4: 25 (2.5, 18.1)
T5: 47 (4.8, 34.7)
T6: 69 (7.0, 50.6)
T7:
First 12 (1.2, 8.7)
T8: 16 (1.6, 11.6)
T9r 44 (4.5, 33)
TlO: 25 (2.5, 18.1)
T11: 55 (5.5, 40)
Second 12 (1.2, 8.7)
