GENERAL DESCRIPTION
MECHANICAL

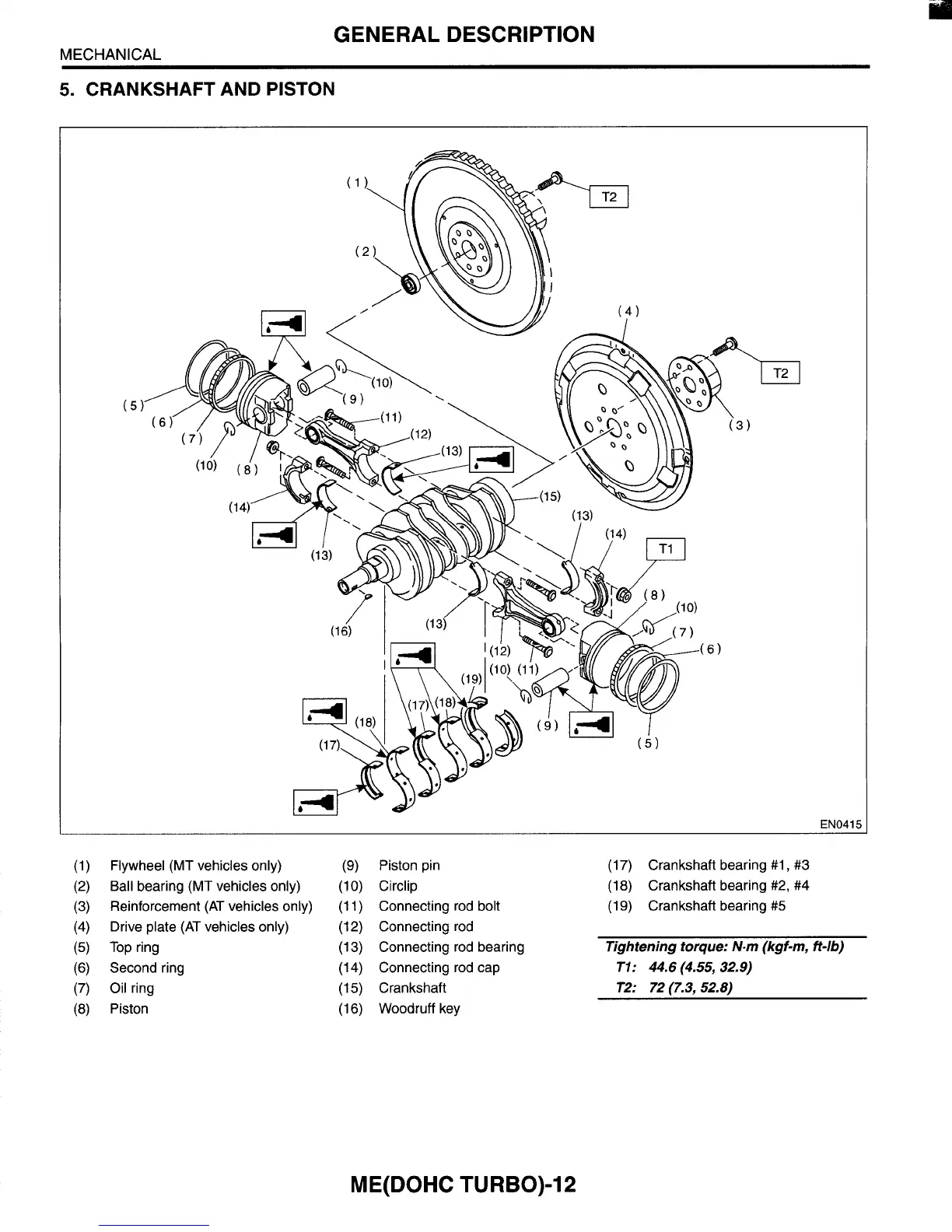

5. CRANKSHAFT AND PISTON
EN0415
(1) Flywheel (MT vehicles only) (9) Piston pin (1 7) Crankshaft bearing #I, #3
(2) Ball bearing (MT vehicles only) (IO) Circlip (1 8) Crankshaft bearing #2, #4
(3) Reinforcement (AT vehicles only) (1 1) Connecting rod bolt (1 9) Crankshaft bearing #5
(4) Drive plate (AT vehicles only) (12) Connecting rod
(5) Top ring (13) Connecting rod bearing Tightening torque: N.m (kgf-m, I?-lb)
(6) Second ring
(7) Oil ring
(8) Piston
(14) Connecting rod cap T1: 44.6 (4.55, 32.9)
(15) Crankshaft T2: 72 (7.3, 52.8)
(16) Woodruff key
