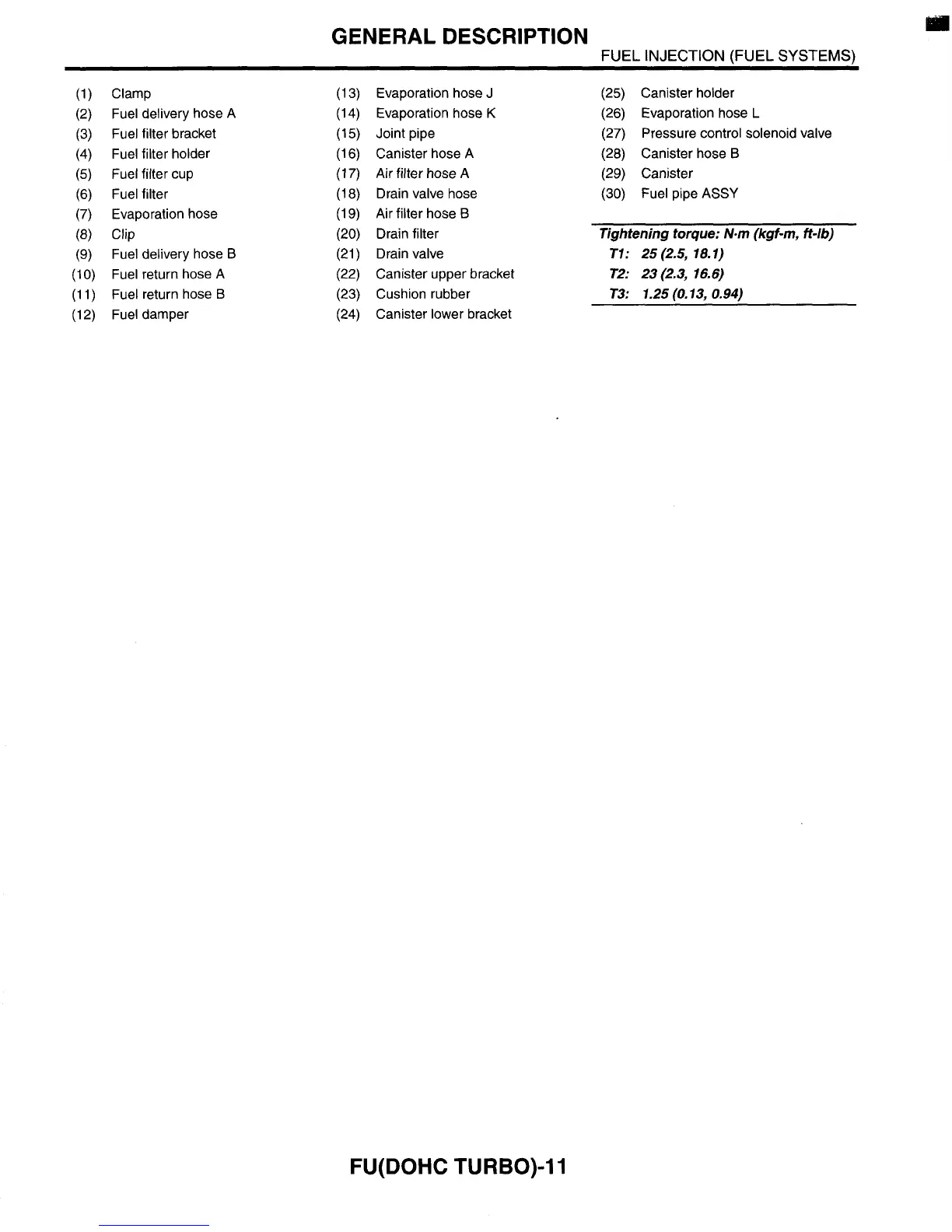

GENERAL DESCRIPTION
FUEL INJECTION (FUEL SYSTEMS)
Clamp
Fuel delivery hose
A
Fuel filter bracket
Fuel filter holder
Fuel filter cup
Fuel filter
Evaporation hose
Clip
Fuel delivery hose
B
Fuel return hose A
Fuel return hose B
Fuel damper
Evaporation hose
J
Evaporation hose K
Joint pipe
Canister hose
A
Air filter hose A
Drain valve hose
Air filter hose
B
Drain filter
Drain valve
Canister upper bracket
Cushion rubber
Canister lower bracket
(25) Canister holder
(26) Evaporation hose
L
(27) Pressure control solenoid valve
(28) Canister hose
B
(29) Canister
(30) Fuel pipe ASSY
Tightening torque: N-m (kgf-m, ft-lb)
T1: 25 (2.5, 18.1)
T2:
23 (2.3, 16.6)
T3:
1.25 (0.13, 0.94)
FU(D0HC TURBO)-I 1
