GENERAL DESCRIPTION
FUEL INJECTION (FUEL SYSTEMS)

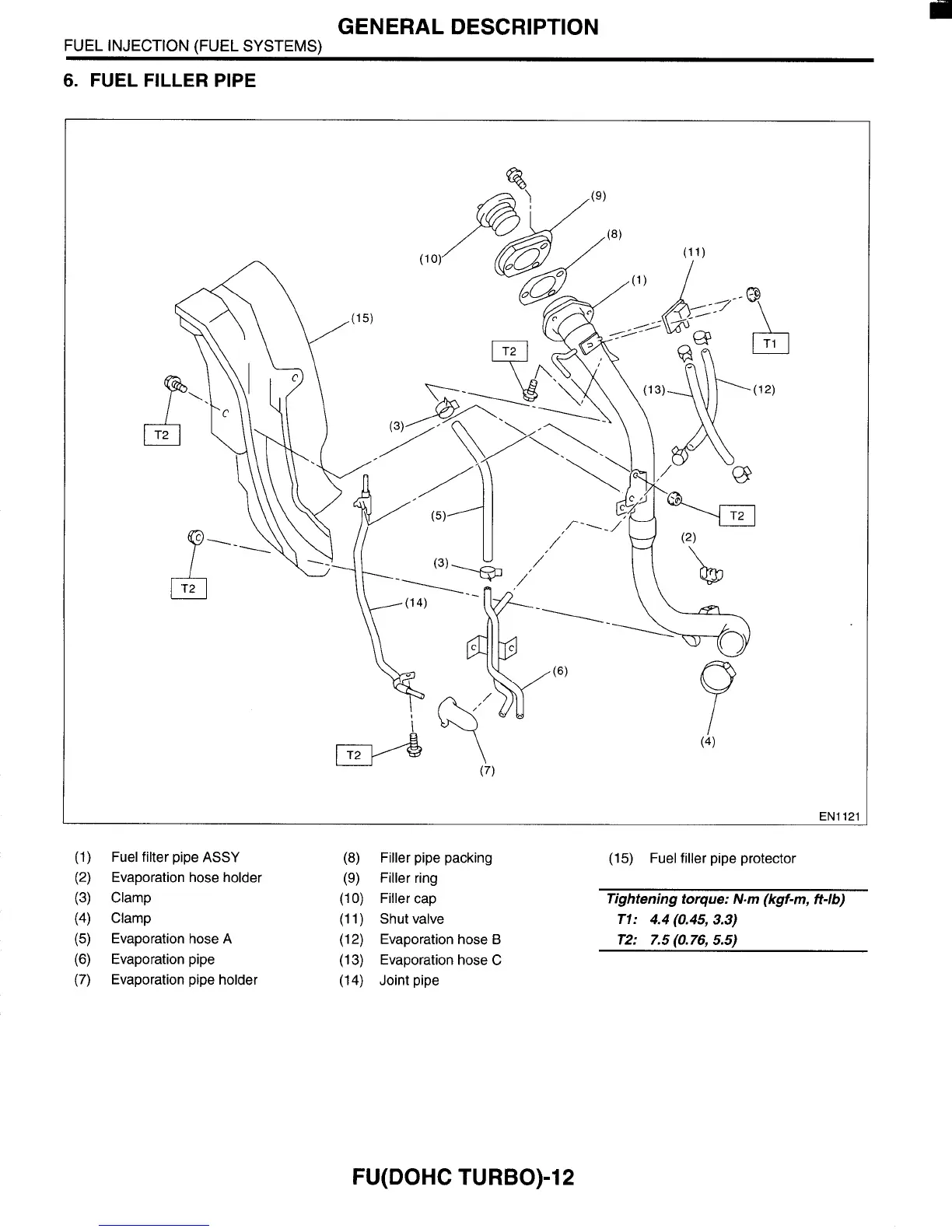

6. FUEL FILLER PIPE
EN1 121
(1) Fuel filter pipe ASSY (8) Filler pipe packing
(2) Evaporation hose holder (9) Filler ring
(3) Clamp
(4) Clamp
(5) Evaporation hose A
(6) Evaporation pipe
-
(1 0) Filler cap
(1 5)
Fuel filler pipe protector
Tightening torque: N.m (kgf-m, ft-lb)
(1 1) Shut valve T1: 4.4 (0.45, 3.3)
(12) Evaporation hose 6 T2: 7.5 (0.76, 5.5)
(1 3) Evaporation hose C
(7) Evaporation pipe holder (1 4) Joint pipe
FU(D0HC TURBO)-I 2
