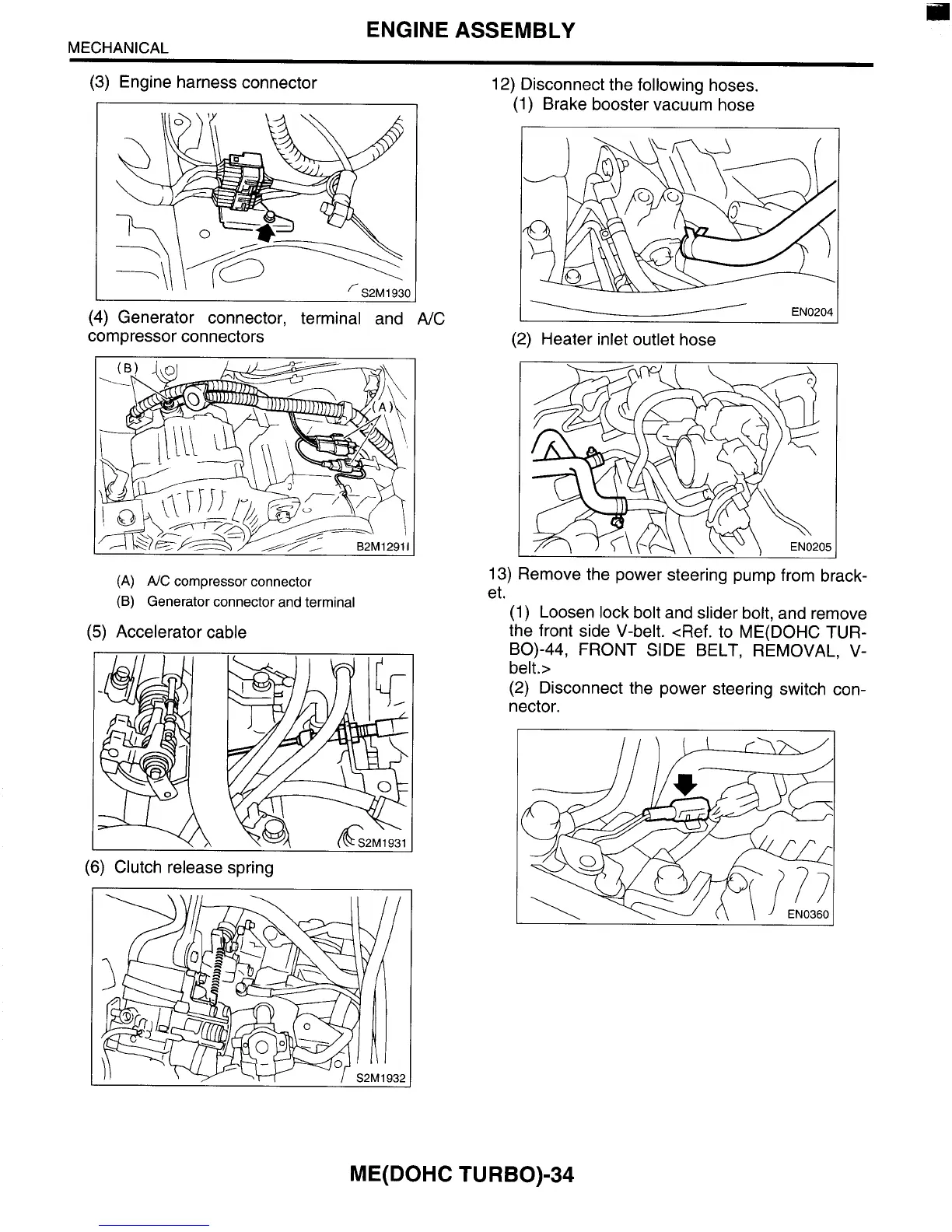

ENGINE ASSEMBLY
MECHANICAL
(3) Engine harness connector
' S2M1930
Ill '
(4) Generator connector, terminal and A/C
compressor connectors
(A) A/C compressor connector
(B) Generator connector and terminal
(5) Accelerator cable
(6) Clutch release spring
12) Disconnect the following hoses.
(1) Brake booster vacuum hose
- EN0204
(2) Heater inlet outlet hose
13) Remove the power steering pump from brack-
et.
(1) Loosen lock bolt and slider bolt, and remove
the front side V-belt. <Ref. to ME(D0HC TUR-
belt.>
(2) Disconnect the power steering switch con-
nector.
BO)-44,
FRONT SIDE BELT, REMOVAL, V-
ME(D0HC TURBO)-34
