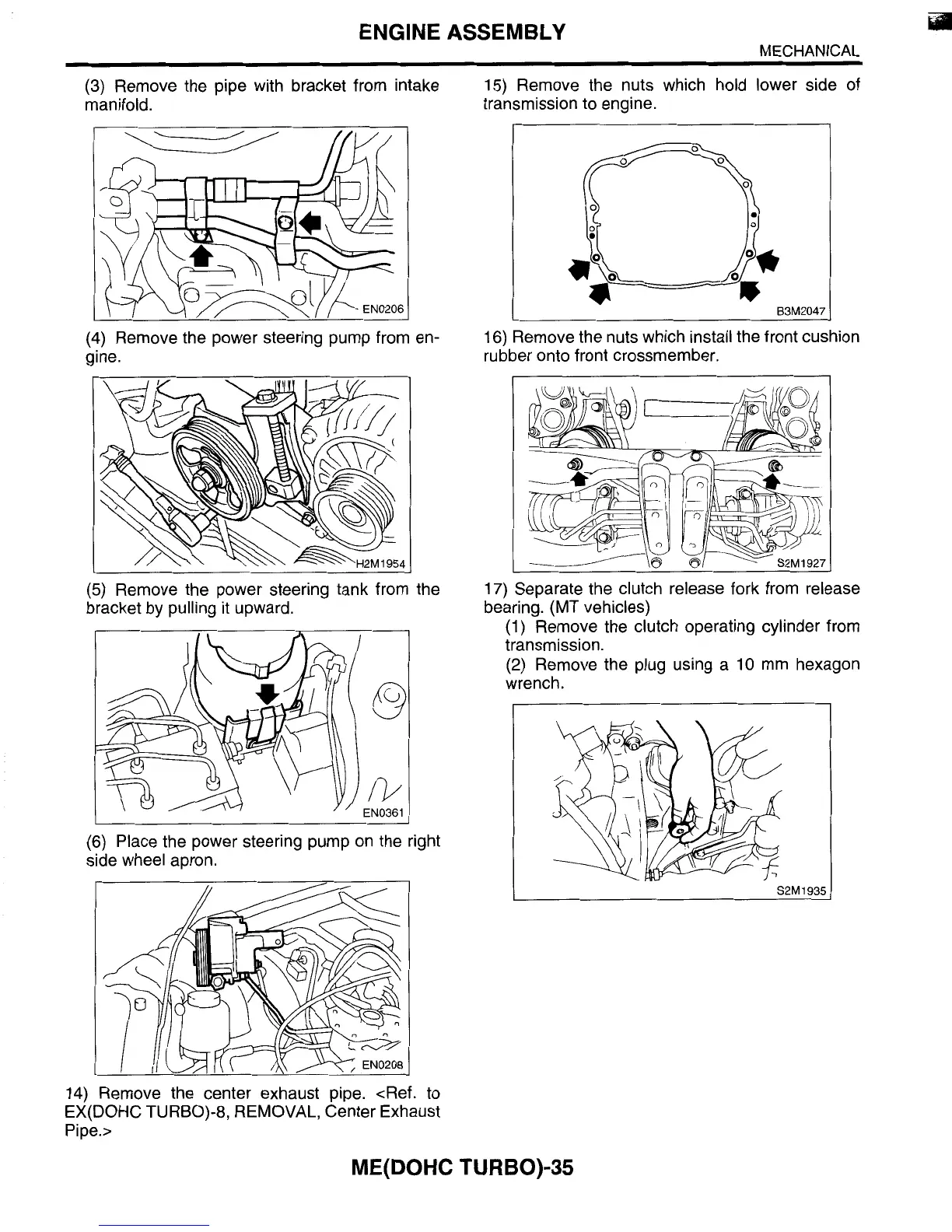

ENGINE ASSEMBLY
MECHANICAL
(3)
Remove the pipe with bracket from intake
manifold.
(4)
Remove the power steering pump from en-
gine.
(5)
Remove the power steering tank from the
bracket by pulling it upward.
I
I
(6)
Place the power steering pump on the right
side wheel apron.
14)
Remove the center exhaust pipe. <Ref. to
EX(D0HC
TURBO)-8,
REMOVAL, Center Exhaust
Pipe.>
15)
Remove the nuts which hold lower side of
transmission to engine.
16)
Remove the nuts which install the front cushion
rubber onto front crossmember.
17)
I
SeDarate the clutch release fork from release
bearing.
(MT vehicles)
(1)
Remove the clutch operating cylinder from
transmission.
(2)
Remove the plug using a
10
mm hexagon
wrench.
I
S2M193:
ME(D0HC TURBO)-35
To Next Page
