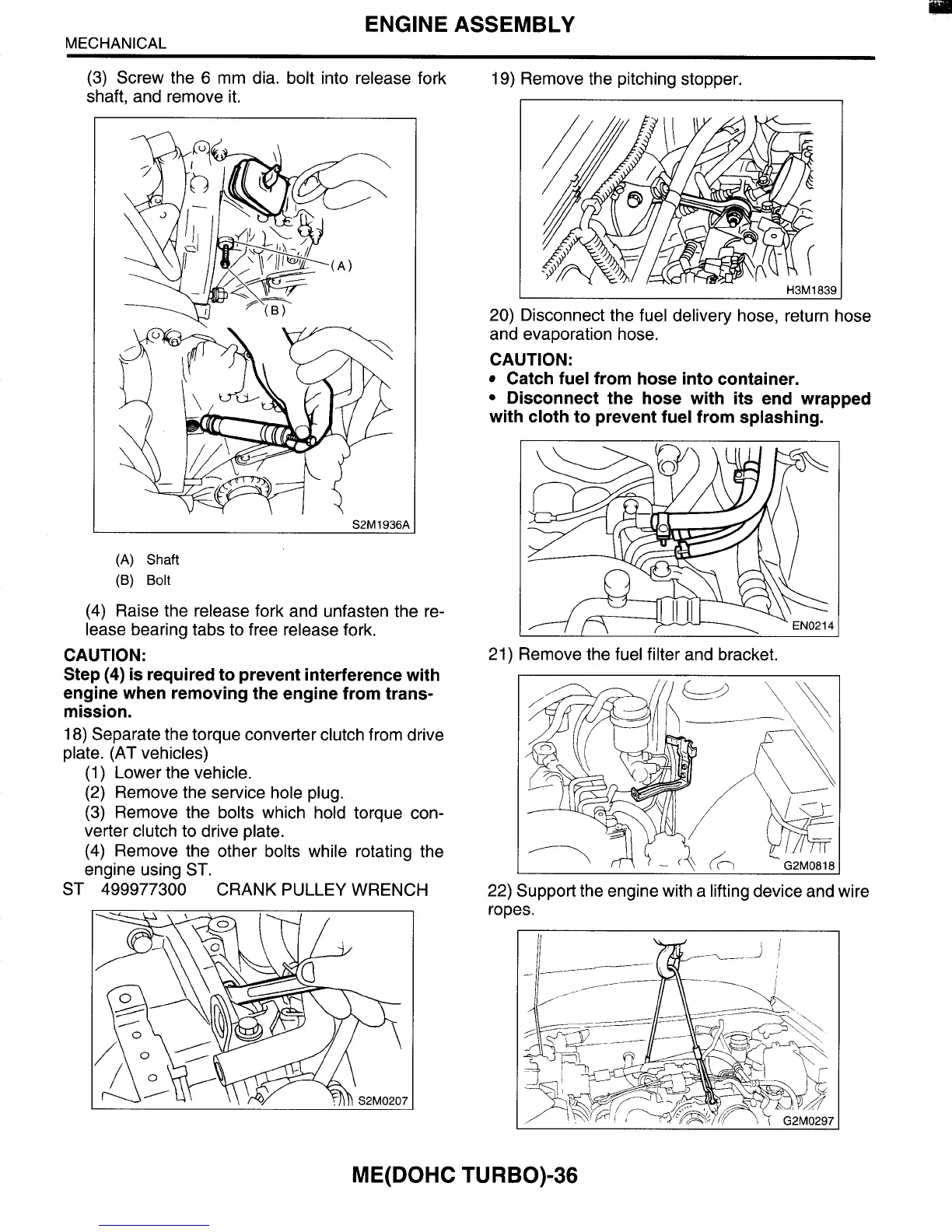

ENGINE ASSEMBLY
MECHANICAL
(3) Screw the
6
mm dia. bolt into release fork
shaft, and remove it.
S2M
1936A
(A)
Shaft
(6)
Bolt
(4) Raise the release fork and unfasten the re-
lease bearing tabs to free release fork.
CAUTION:
Step
(4)
is required to prevent interference with
engine when removing the engine from trans-
mission.
18)
Separate the torque converter clutch from drive
plate. (AT vehicles)
(1)
Lower the vehicle.
(2)
Remove the service hole plug.
(3) Remove the bolts which hold torque con-
verter clutch to drive plate.
(4) Remove the other bolts while rotating the
engine using
ST.
ST
499977300 CRANK PULLEY WRENCH
19) Remove the pitching stopper.
20)
Disconnect the fuel delivery hose, return hose
and evaporation hose.
CAUTION:
Catch fuel from hose into container.
Disconnect the hose with its end wrapped
with cloth to prevent fuel from splashing.
I
I'
.
21)
Remove the fuel filter and bracket.
22)
Support the engine with a lifting device and wire
ropes.
ME(D0HC
TURBO)-36
