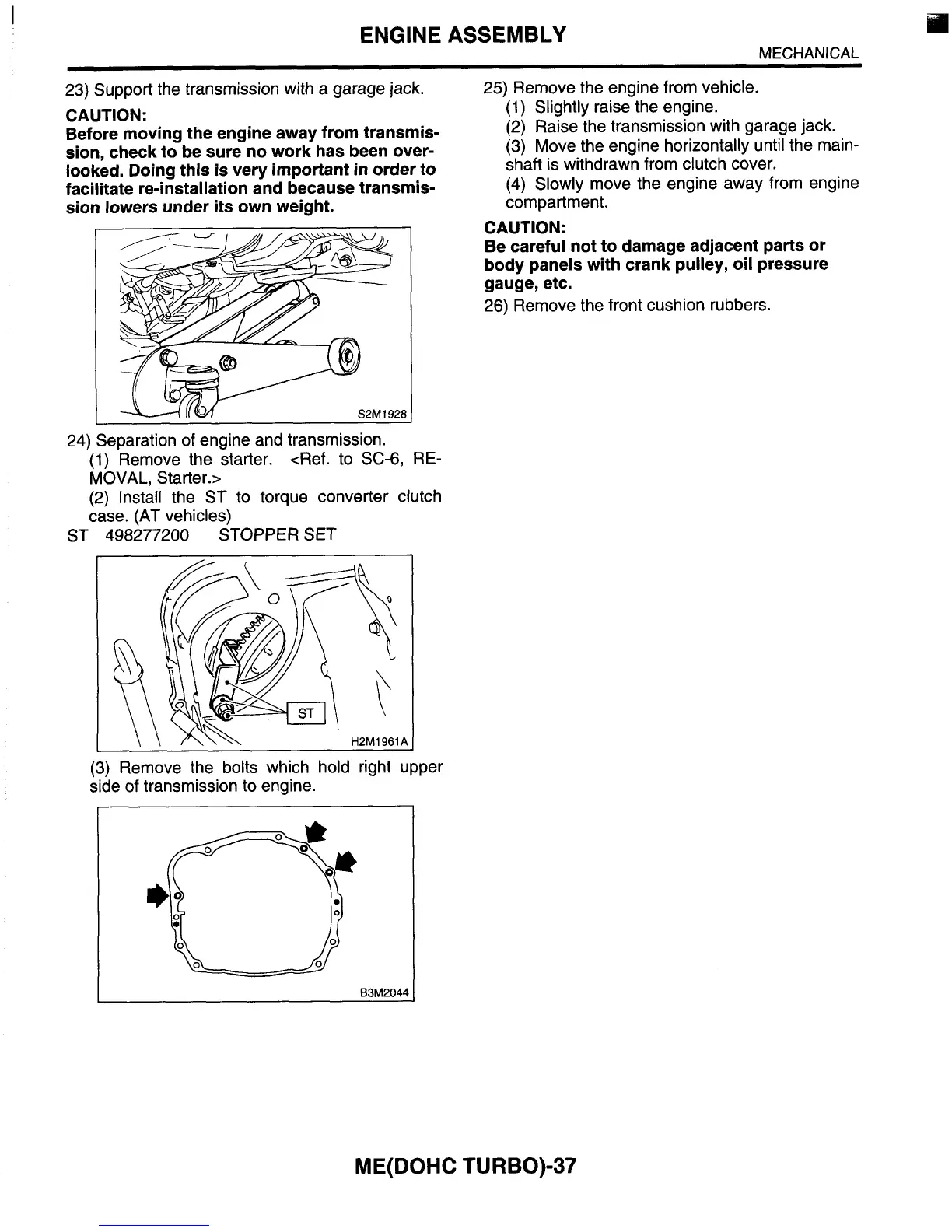

ENGINE ASSEMBLY
23) Support the transmission with a garage jack.
CAUTION:
Before moving the engine away from transmis-
sion, check
to
be sure no work has been over-
looked. Doing this is very important
in
order
to
facilitate re-installation and because transmis-
25) Remove the engine from vehicle.
(1)
Slightly raise the engine.
(2)
Raise the transmission with garage jack.
(3)
Move the engine horizontally until the main-
shaft
is
withdrawn from clutch cover.
(4) Slowly move the engine away from engine
sion lowers under
its
own weight.
24) Separation of engine and transmission.
(1)
Remove the starter. <Ref. to
SC-6,
RE-
MOVAL, Starter.>
(2) Install the ST to torque converter clutch
case. (AT vehicles)
ST 498277200 STOPPER
SET
(3)
Remove the bolts which hold right upper
side of transmission to engine.
B3M2044
compartment.
CAUTION:
Be careful not to damage adjacent parts or
body panels with crank pulley, oil pressure
gauge, etc.
26) Remove the front cushion rubbers.
ME(D0HC TURBO)-37
