I
MECHANICAL
ENGINE ASSEMBLY

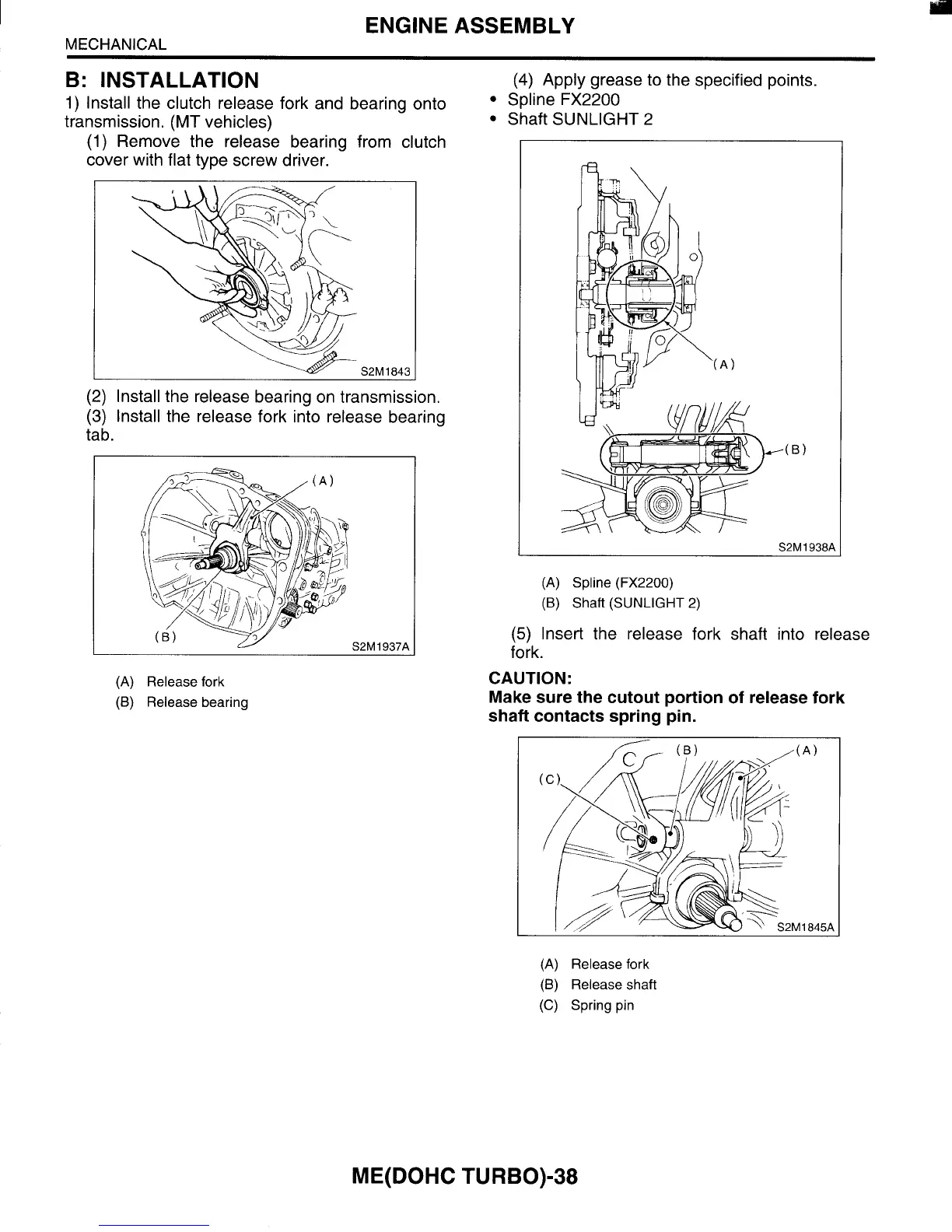

B: INSTALLATION
(4)
Apply grease
to
the specified points.
1)
Install the clutch release fork and bearing onto
transmission.
(MT
vehicles)
Spline
~x2200
Shaft
SUNLIGHT
2
(1)
Remove the release bearing from clutch
cover with flat type screw driver.
(2)
Install the release bearing on transmission.
(3)
Install the release fork into release bearing
tab.
S2M1937A
(A)
Release fork
(B)
Release bearing
m\
S2M1938A
(A)
Spline
(FX2200)
(B)
Shaft
(SUNLIGHT
2)
(5)
Insert the release fork shaft into release
fork.
CAUTION:
Make sure the cutout portion of release fork
shaft contacts spring pin.
(A)
Release fork
(B)
Release shaft
(C)
Spring pin
ME(D0HC TURBO)-38
