MECHANICAL
TIMING BELT ASSEMBLY

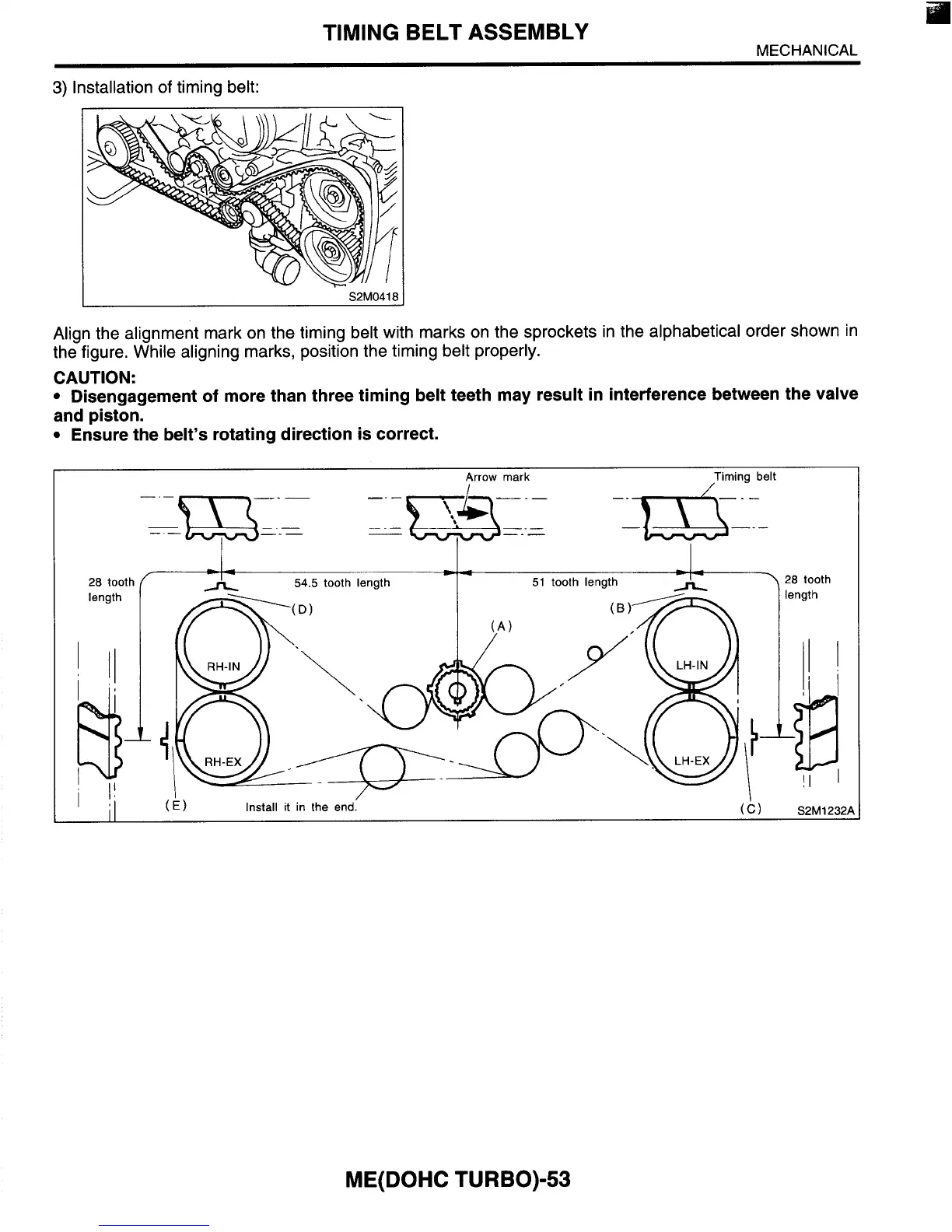

3) Installation of timing belt:
S2M0410
Align the alignment mark on the timing belt with marks on the sprockets in the alphabetical order shown in
the figure. While aligning marks, position the timing belt properly.
CAUTION:
Disengagement of more than three timing belt teeth may result in interference between the valve
and piston.
Ensure the belt’s rotating direction is correct.
Arrow mark Timing belt
I /
28 tooth
length
r
--
-_
-
.
54.5 tooth length 51 tooth length
/
(E)
Install it in the end.
28 tooth
ength
I
b !I I
S2M1232P
ME(D0HC TURBO)-53
