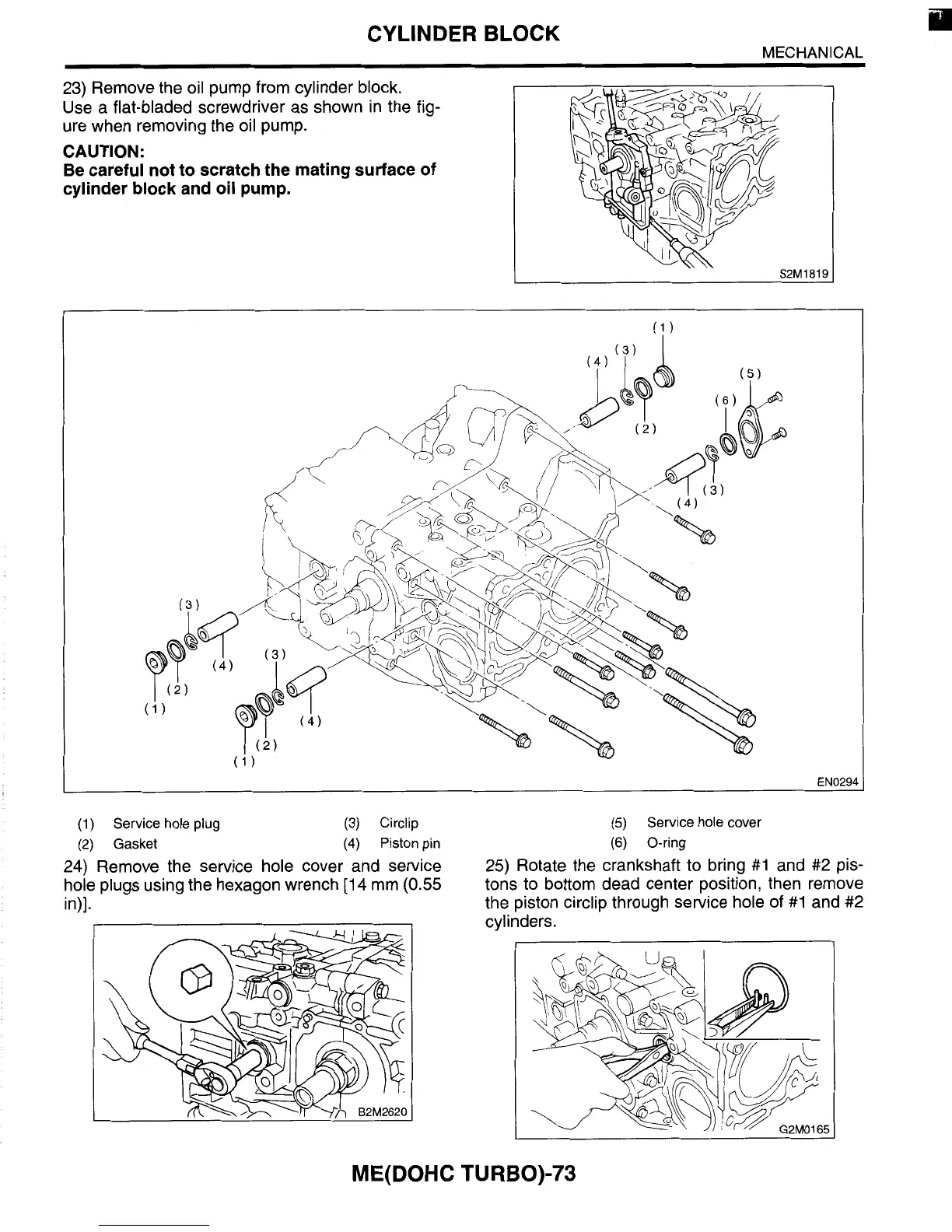

MECHANICAL
CYLINDER BLOCK
23)
Remove the oil pump from cylinder block.
Use a flat-bladed screwdriver as shown in the fig-
ure when removing the
oil
pump.
CAUTION:
Be careful not to scratch the mating surface of
cylinder block and oil pump.
\\
\\
S2M1819
I
EN029r
(1)
Service hole plug
(2)
Gasket
(3)
Circlip
(4)
Piston pin
(5)
Service hole cover
(6)
O-ring
~,
24) Remove the service hole cover and service
hole plugs using the hexagon wrench [14 mm
(0.55
25)
Rotate the crankshaft to bring
#1
and
#2
pis-
tons to bottom dead center position, then remove
the piston circlip through service hole
of
#1 and #2
in)].
cylinders.
ME(D0HC TURBO)-73
