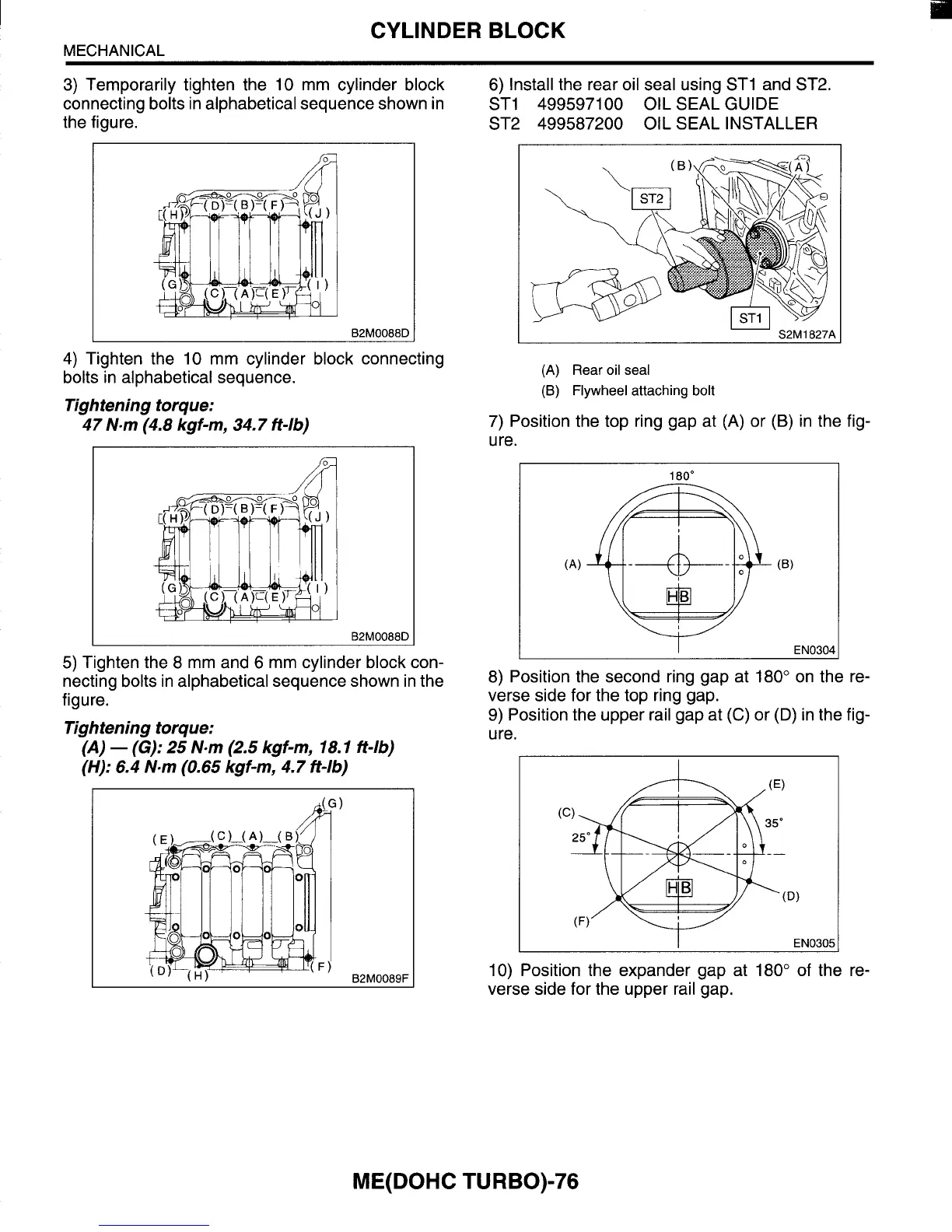

CYLINDER BLOCK
3) Temporarily tighten the 10 mm cylinder block
connecting bolts in alphabetical sequence shown in
the figure.
I B2M0088D I
4) Tighten the 10 mm cylinder block connecting
bolts in alphabetical sequence.
Tightening torque:
47 N.m (4.8 kgf-m, 34.7 ft-lb)
B2M0088D
5) Tighten the 8 mm and 6 mm cylinder block con-
necting bolts in alphabetical sequence shown in the
figure.
Tightening torque:
(A) - (G): 25 N-m (2.5 kgf-m, 18.1 ft-lb)
(H): 6.4 N-m (0.65 kgf-m, 4.7 ft-lb)
B2M0089F
6) Install the rear oil seal using ST1 and ST2.
ST1 499597100 OIL SEAL GUIDE
ST2 499587200
OIL SEAL INSTALLER
' ~ ' S2M1827A
(A) Rear oil seal
(B) Flywheel attaching bolt
7) Position the top ring gap at (A) or (B) in the fig-
ure.
180"
(B)
EN0304
8) Position the second ring gap at 180" on the re-
verse side for the top ring gap.
9) Position the upper rail gap at
(C) or (D) in the fig-
ure.
EN0305
10) Position the expander gap at 180" of the re-
verse side for the upper rail gap.
