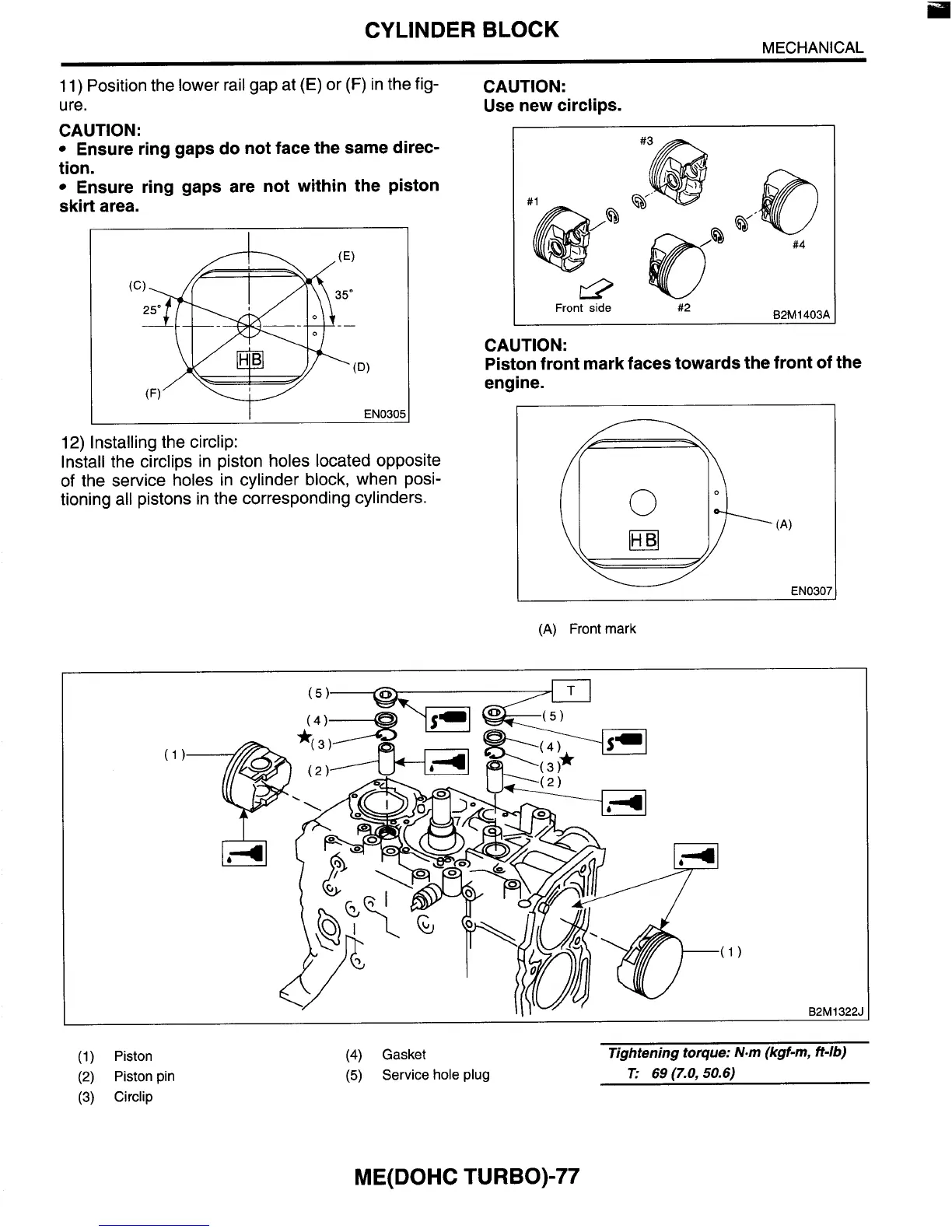

MECHANICAL
CYLINDER BLOCK
11)
Position the lower rail gap at
(E)
or
(F)
in the fig-
ure.
CAUTION:
Ensure ring gaps do not face the same direc-
tion.
Ensure ring gaps are not within the piston
skirt area.
EN0305
12)
Installing the circlip:
Install the circlips in piston holes located opposite
of the service holes in cylinder block, when posi-
tioning all pistons in the corresponding cylinders.
CAUTION:
Use new circlips.
B2M1403A
Front
side
#2
CAUTION:
Piston front mark faces towards the front of the
engine.
(A)
Front mark
(1)
Piston
(2)
Piston pin
(3)
Circlip
(4)
Gasket
(5)
Service hole plug
Tightening torque: N.m (kgf-m,
ft-lb)
T:
69
(7.0,
50.6)
ME(D0HC TURBO)-77
