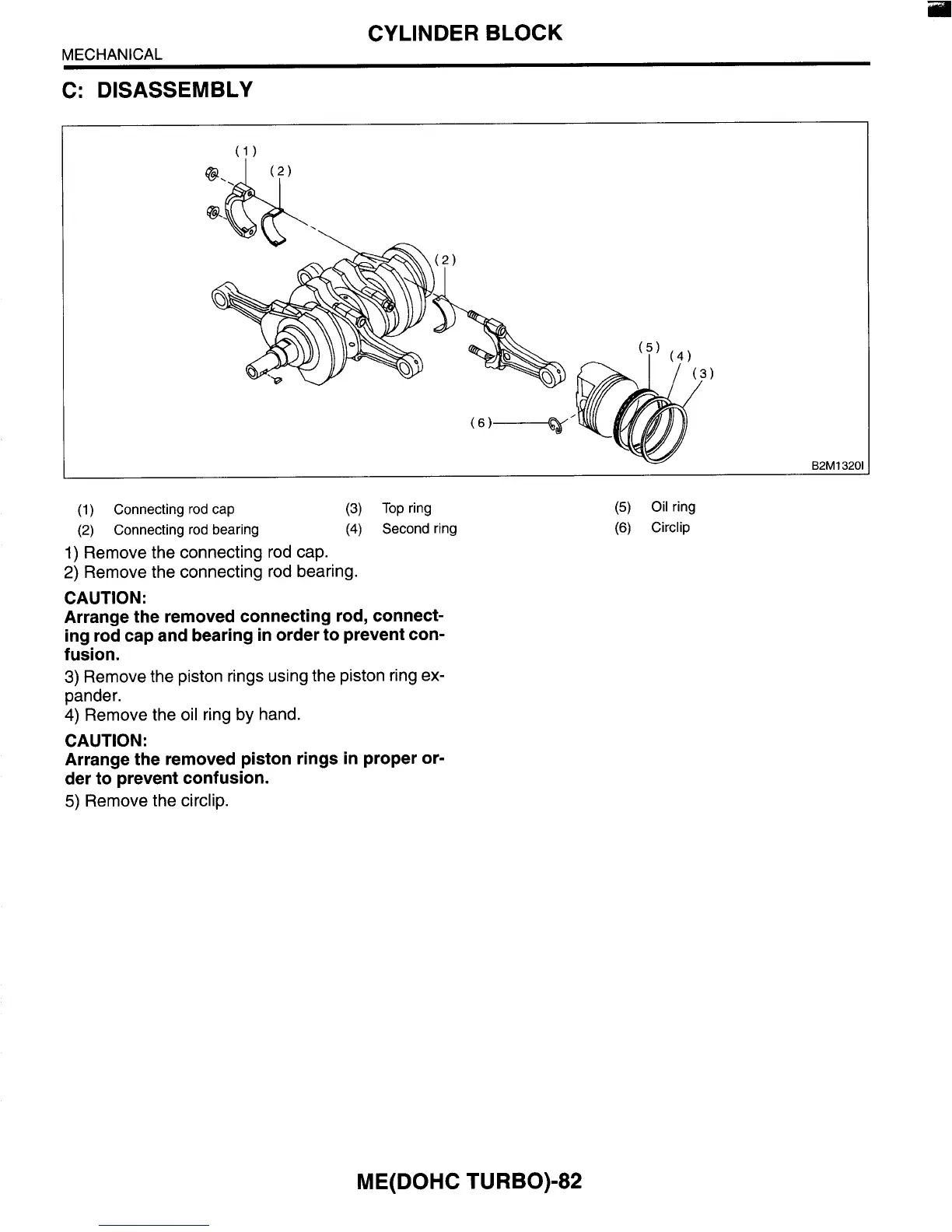

CYLINDER BLOCK
MECHANICAL
C: DISASSEMBLY
I
B2M13201
(1)
Connecting rod cap
(3)
Top ring
(2)
Connecting rod bearing
(4)
Second ring
1)
Remove the connecting rod cap.
2)
Remove the connecting rod bearing.
CAUTION:
Arrange the removed connecting rod, connect-
ing rod cap and bearing in order to prevent con-
fusion.
3)
Remove the piston rings using the piston ring ex-
pander.
4) Remove the oil ring by hand.
CAUTION:
Arrange the removed piston rings in proper or-
der to prevent confusion.
5)
Remove the circlip.
(5)
Oil ring
(6)
Circlip
ME(D0HC TURBO)-82
