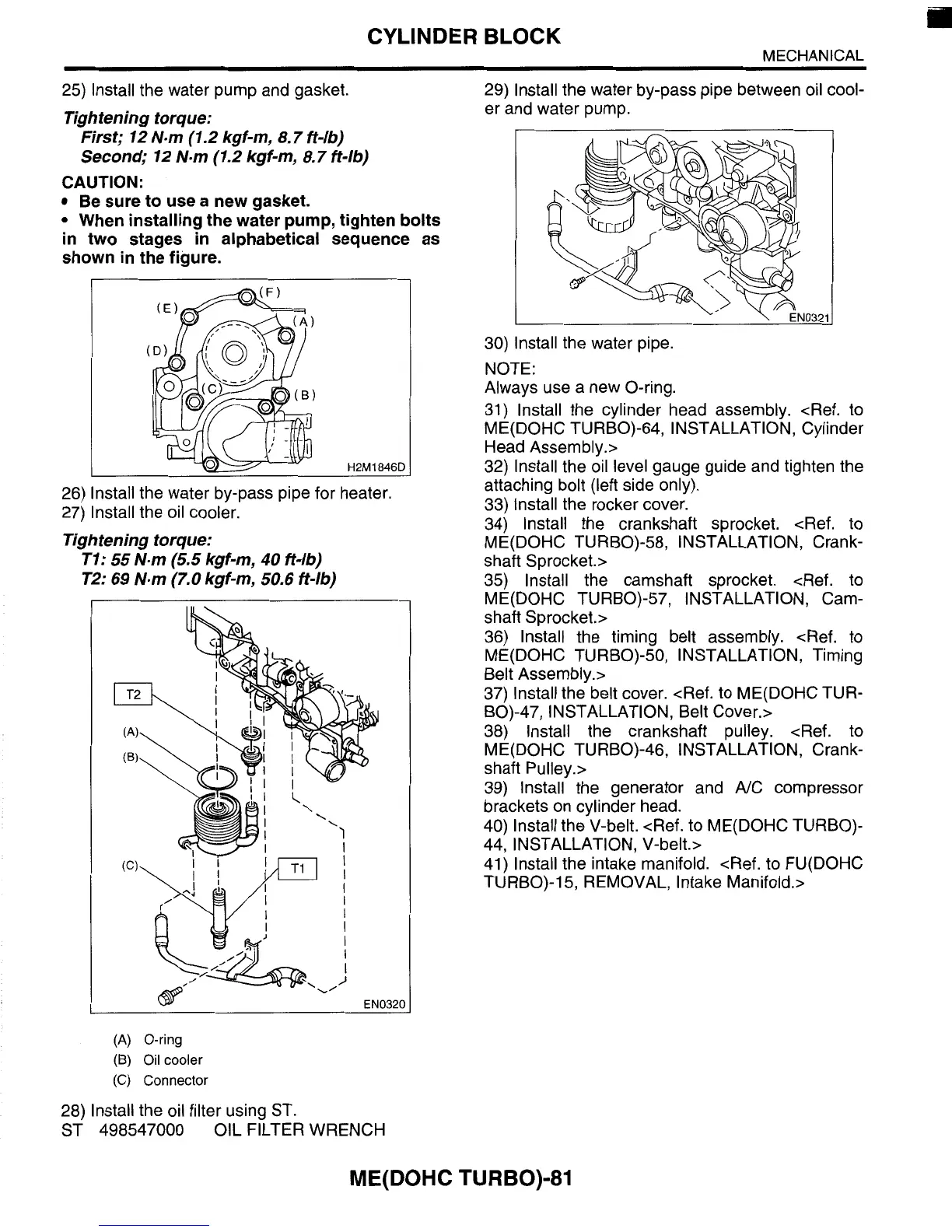

II
MECHANICAL
CYLINDER BLOCK
25) Install the water pump and gasket.
Tightening torque:
First;
12
N-m (1.2 kgf-m, 8.7
ft-16)
Second;
12
N.m (1.2 kgf-m, 8.7
ff-16)
CAUTION:
Be sure to use a new gasket.
When installing the water pump, tighten bolts
in two stages in alphabetical sequence as
shown in the figure.
H2M1846D
26) Install the water by-pass pipe for heater.
27) Install the oil cooler.
Tightening torque:
TI: 55 N-m (5.5 kgf-m,
40
ft-16)
T2: 69 N-m (7.0 kgf-m, 50.6
ff-16)
(A)
O-ring
(B)
Oil cooler
(C)
Connector
28) Install the oil filter using ST.
ST 498547000 OIL FILTER WRENCH
29) Install the water by-pass pipe between oil cool-
er and water pump.
30) Install the water pipe.
NOTE:
Always use a new O-ring.
31) Install the cylinder head assembly. <Ref. to
ME(D0HC TURBO)-64, INSTALLATION, Cylinder
Head Assembly.>
32) Install the oil level gauge guide and tighten the
attaching bolt (left side only).
33) Install the rocker cover.
34)
Install the crankshaft sprocket. <Ref. to
ME(D0HC TURBO)-58, INSTALLATION, Crank-
shaft Sprocket.>
35) Install the camshaft sprocket. <Ref. to
ME( DOHC TU RBO)-57, INSTALLATION, Cam-
shaft Sprocket.>
36) Install the timing belt assembly. <Ref. to
ME(D0HC TURBO)-50, INSTALLATION, Timing
Belt Assembly.>
37) Install the belt cover. <Ref. to ME(D0HC TUR-
BO)-47, INSTALLATION, Belt Cover.>
38) Install the crankshaft pulley. <Ref. to
ME(D0HC TURBO)-46, INSTALLATION, Crank-
shaft Pulley.>
39) Install the generator and A/C compressor
brackets on cylinder head.
40) Install the V-belt. <Ref. to ME(D0HC TURBO)-
44, INSTALLATION, V-belt.>
41) Install the intake manifold. <Ref. to FU(D0HC
TURBO)-1
5,
REMOVAL, Intake Manifold.>
ME(D0HC TURBO)-81
