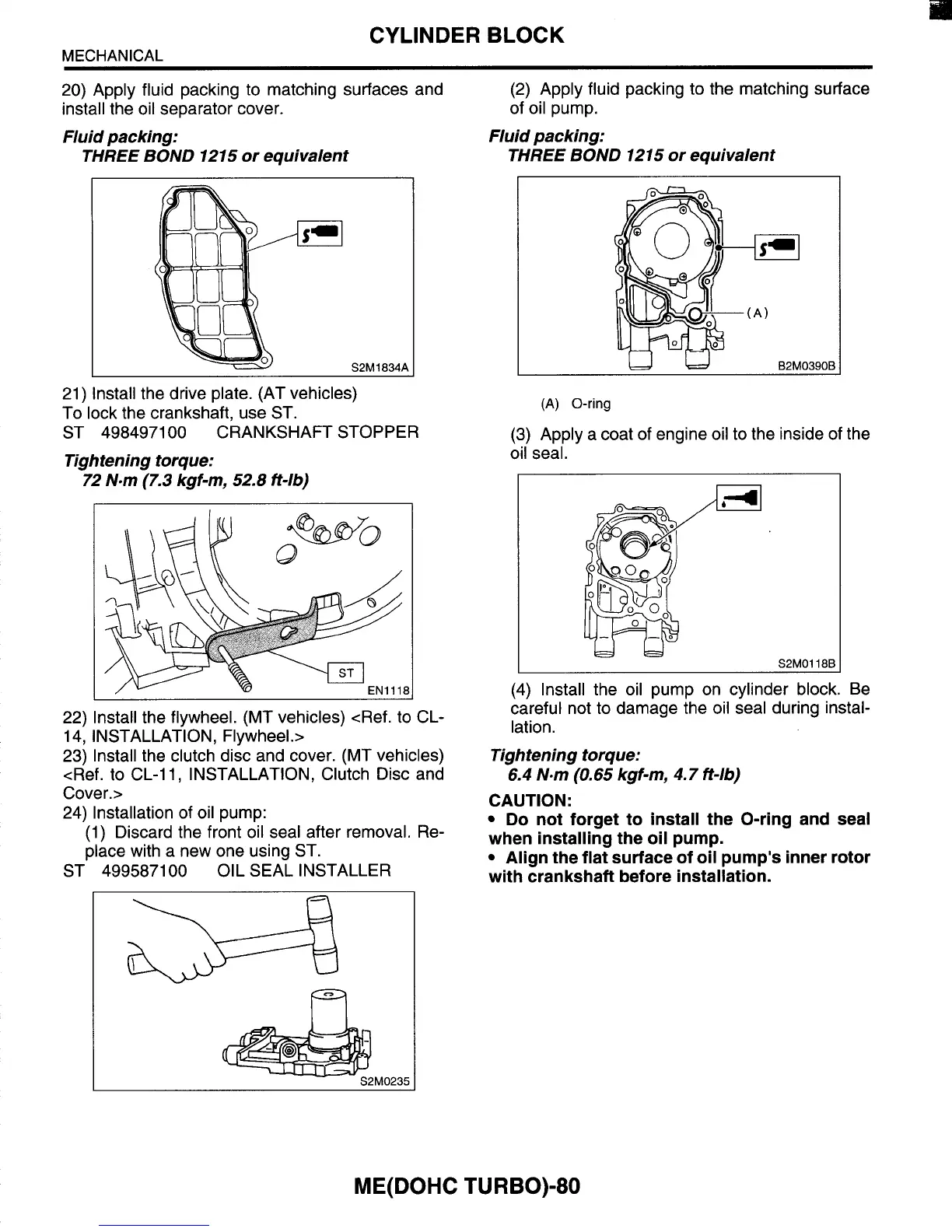

CYLINDER BLOCK
MECHANICAL
20) Apply fluid packing to matching surfaces and
install the oil separator cover.
Fluid packing:
THREE BOND 1215 or equivalent
(2)
Apply fluid packing to the matching surface
of oil pump.
Fluid packing:
THREE BOND 1215 or equivalent
S2M1
R34A
21) Install the drive plate. (AT vehicles)
To lock the crankshaft, use ST.
ST 4984971
00
CRANKSHAFT STOPPER
Tightening torque:
72 N.m (7.3 kgf-m, 52.8 ft-lb)
22) Install the flywheel. (MT vehicles) <Ref. to CL-
14, INSTALLATION, Flywheel.>
23) Install the clutch disc and cover. (MT vehicles)
<Ref.
to
CL-11, INSTALLATION, Clutch Disc and
Cover.>
24) Installation of oil pump:
(1) Discard the front oil seal after removal. Re-
place with a new one using ST.
ST 499587100 OIL SEAL INSTALLER
M0235
LJLJ
B2M03908
(A)
O-ring
(3) Apply a coat of engine oil to the inside of the
oil seal.
I
.
I
1
S2M0118B
W&
(4) Install the oil pump on cylinder block. Be
careful not to damage the oil seal during instal-
lation.
6.4 N.m (0.65 kgf-m, 4.7 ft-lb)
Tightening torque:
CAUTION:
Do not forget to install the O-ring and seal
when installing the oil pump.
Align the flat surface of oil pump's inner rotor
with crankshaft before installation.
ME(D0HC TURBO)-80
