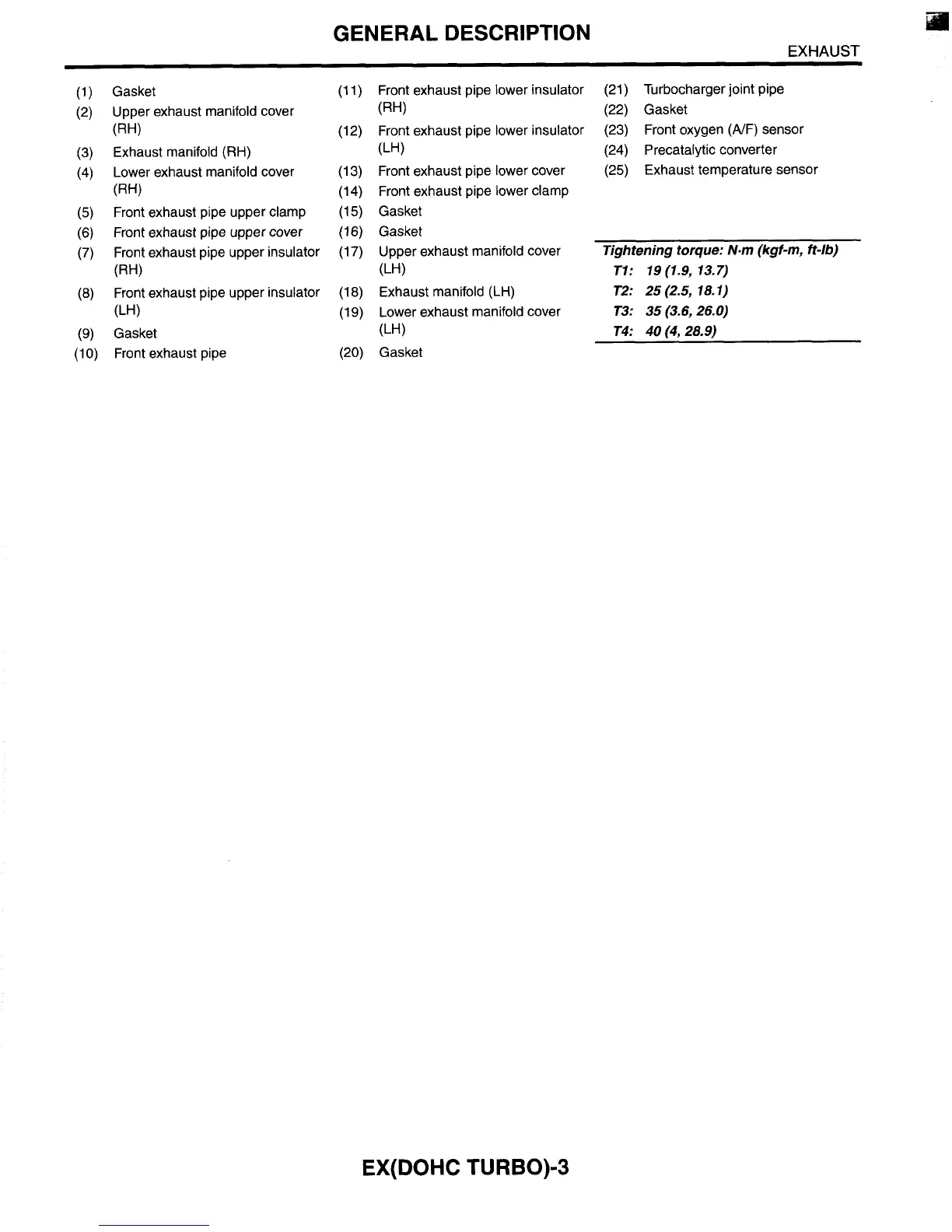

GENERAL DESCRIPTION
EXHAUST
Gasket
Upper exhaust manifold cover
(RH)
Exhaust manifold (RH)
Lower exhaust manifold cover
(RH)
Front exhaust pipe upper clamp
Front exhaust pipe upper cover
Front exhaust pipe upper insulator
(RH)
Front exhaust pipe upper insulator
(LH)
Gasket
Front exhaust pipe
Front exhaust pipe lower insulator
Front exhaust pipe lower insulator
Front exhaust pipe lower cover
Front exhaust pipe lower clamp
Gasket
Gasket
Upper exhaust manifold cover
(LH)
Exhaust manifold (LH)
Lower exhaust manifold cover
Gasket
(RH)
(LH)
(LH)
(21) Turbocharger joint pipe
(22) Gasket
(23) Front oxygen (NF) sensor
(24) Precatalytic converter
(25) Exhaust temperature sensor
Tightening torque: N.m (kgf-m,
ft-lb)
T1: 19 (1.9, 13.7)
T2: 25 (2.5, 18.1)
T3: 35 (3.6, 26.0)
T4: 40 (4, 28.9)
EX(D0HC TURB0)S
