GENERAL DESCRIPTION
EXHAUST

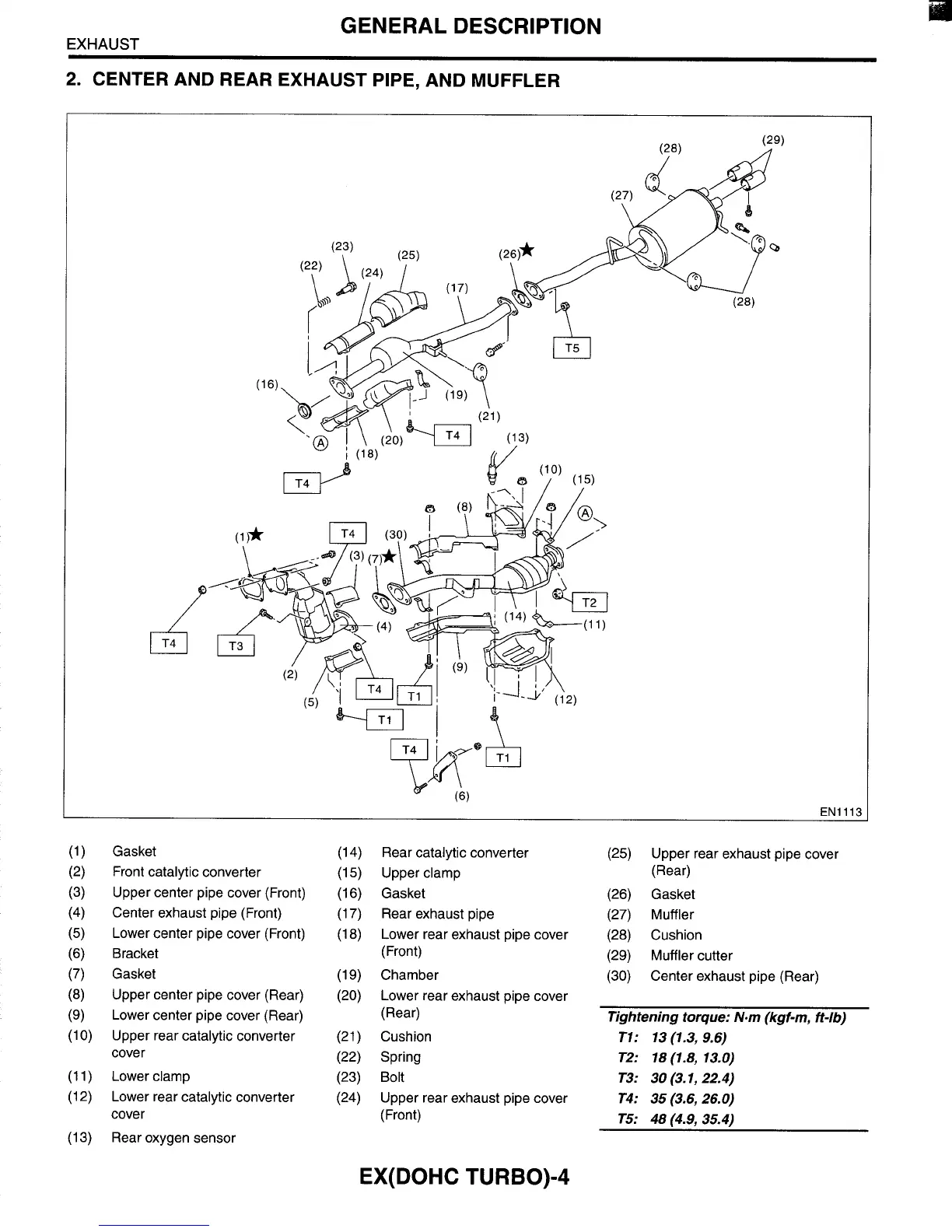

2. CENTER AND REAR EXHAUST PIPE, AND MUFFLER
L4
I \
EN1113
Gasket
Front catalytic converter
Upper center pipe cover (Front)
Center exhaust pipe (Front)
Lower center pipe cover (Front)
Bracket
Gasket
Upper center pipe cover (Rear)
Lower center pipe cover (Rear)
Upper rear catalytic converter
cover
Lower clamp
Lower rear catalytic converter
cover
Rear oxygen sensor
Rear catalytic converter
Upper clamp
Gasket
Rear exhaust pipe
Lower rear exhaust pipe cover
(Front)
Chamber
Lower rear exhaust pipe cover
(Rear)
Cushion
Spring
Bolt
Upper rear exhaust pipe cover
(Front)
(25) Upper rear exhaust pipe cover
(Rear)
(26) Gasket
(27) Muffler
(28) Cushion
(29) Muffler cutter
(30) Center exhaust pipe (Rear)
Tightening torque: N.m (kgf-m,
ft-lb)
T1: 13 (1.3, 9.6)
T2: lS(1.8, 13.0)
T3: 30 (3.1, 22.4)
T4: 35 (3.6, 26.0)
T5: 48 (4.9, 35.4)
EX(D0HC TURBO)-4
