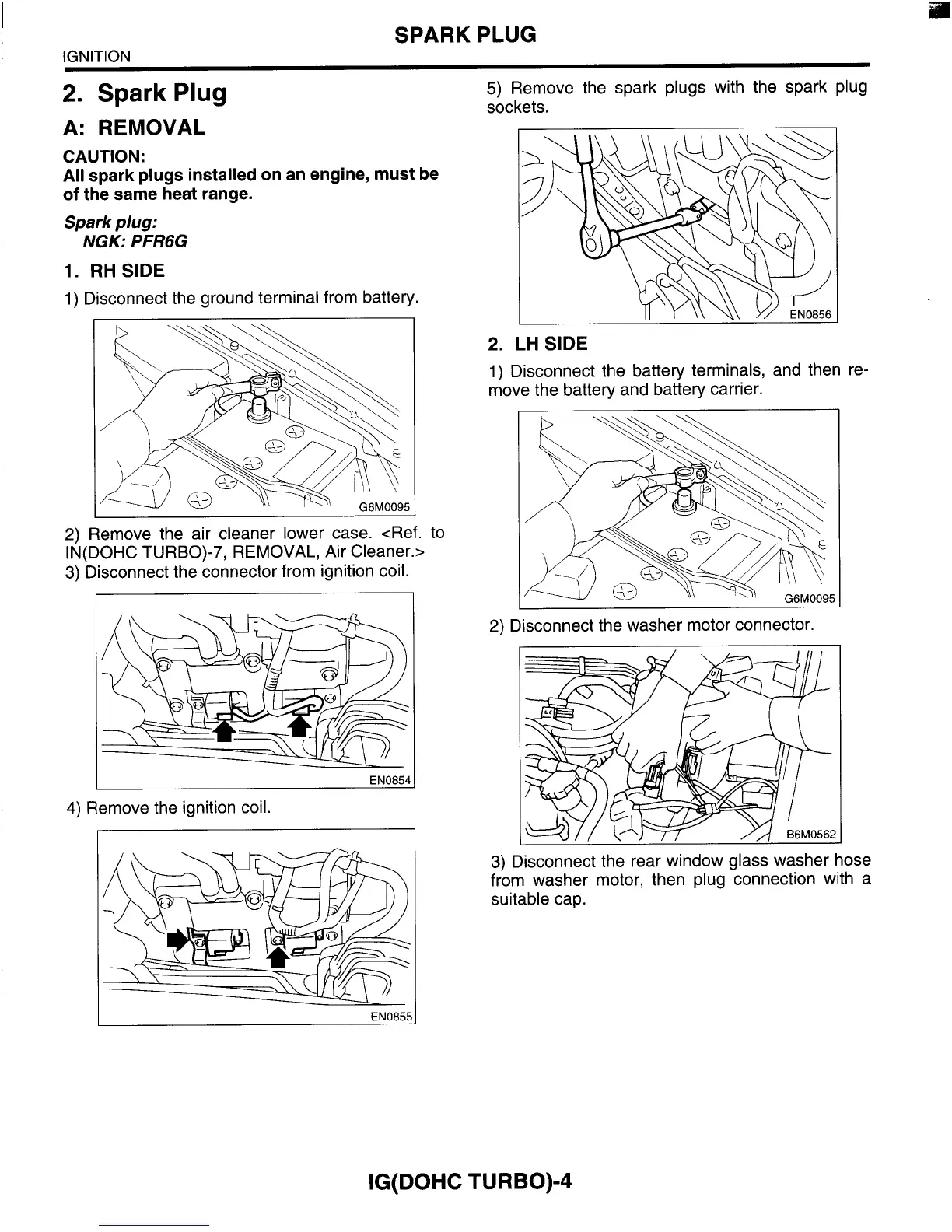

SPARK PLUG
I
IGNITION
2.
Sparkplug
A:
REMOVAL
CAUTION:
All
spark plugs installed on an engine, must be
of
the same heat range.
Spark
plug:
1.
RH
SIDE
1
)
Disconnect the ground terminal from battery.
NGK:
PFRGG
2)
Remove the air cleaner lower case. <Ref. to
IN(D0HC
TURBO)-7,
REMOVAL, Air Cleaner.>
3)
Disconnect the connector from ignition coil.
EN0854
5)
Remove the spark plugs with the spark plug
sockets.
2.
LH
SIDE
1)
Disconnect the battery terminals, and then re-
move the battery and battery carrier.
2)
Disconnect the washer motor connector
4) Remove the ignition coil.
3)
Disconnect the rear window glass washer hose
from washer motor, then plug connection with a
suitable cap.
EN0855
I
IG(D0HC TURBO)-4
To Next Page
