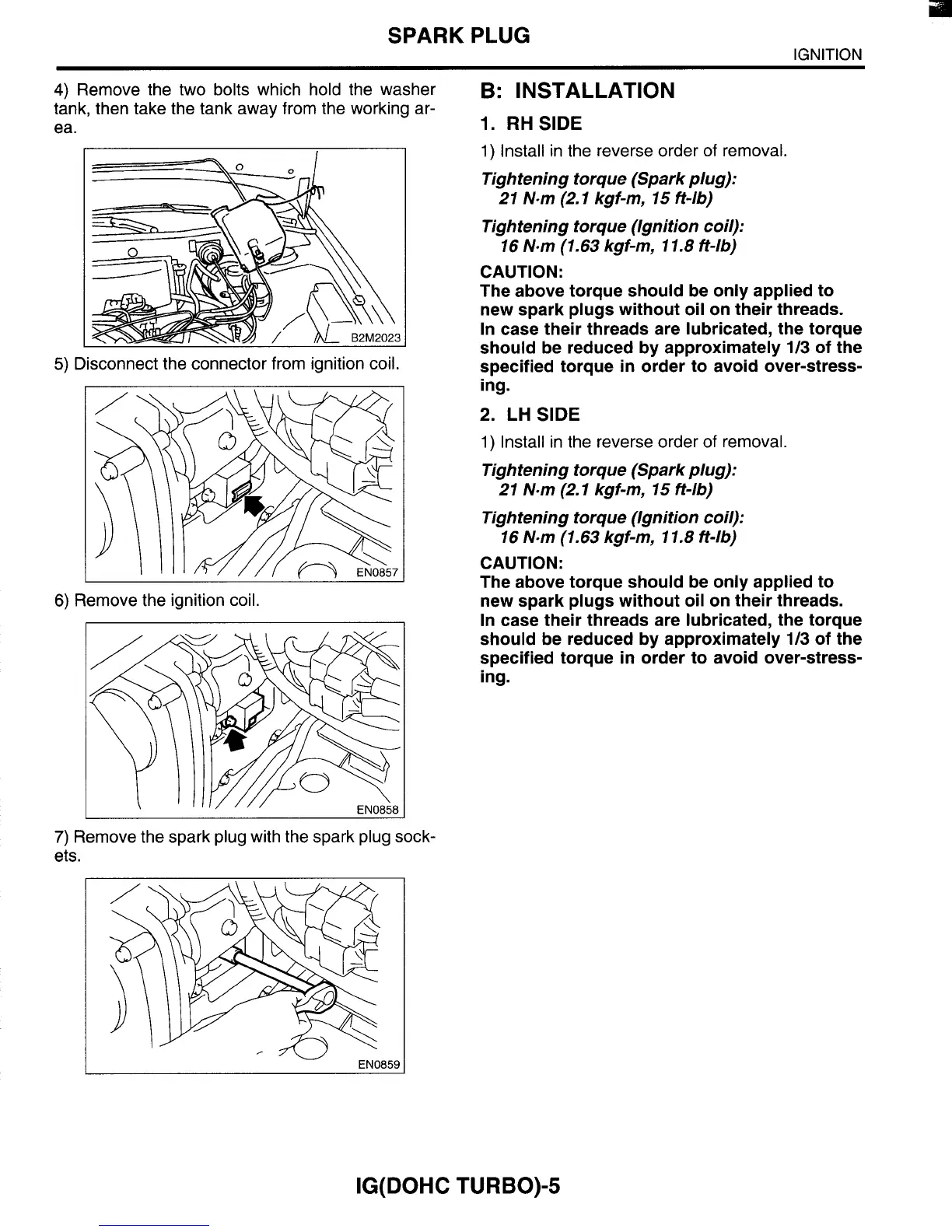

SPARK PLUG
IGNITION
4)
Remove the two bolts which hold the washer
tank, then take the tank away from the working ar-
ea.
5)
Disconnect the connector from ignition coil.
6)
Remove the ignition coil.
7)
Remove the spark plug with the spark plug sock-
ets.
.
EN0859
B:
INSTALLATION
1.
RH
SIDE
1)
Install in the reverse order
of
removal.
Tightening torque (Spark plug):
21
N-m (2.1 kgf-m, 15 ft-lb)
Tightening torque (Ignition coil):
16 N.m (1.63 kgf-m, 11.8 fi-lb)
CAUTION:
The above torque should be only applied to
new spark plugs without oil on their threads.
In case their threads are lubricated, the torque
should be reduced by approximately
1/3
of
the
specified torque in order to avoid over-stress-
ing.
2.
LH
SIDE
1)
Install in the reverse order of removal.
Tightening torque (Spark plug):
21
N.m (2.1 kgf-m, 15 ft-lb)
Tightening torque (Ignition coil):
16 N-m (1.63 kgf-m, 11.8 ft-lb)
CAUTION:
The above torque should be only applied to
new spark plugs without oil on their threads.
In case their threads are lubricated, the torque
should be reduced by approximately
1/3
of
the
specified torque in order to avoid over-stress-
ing.
