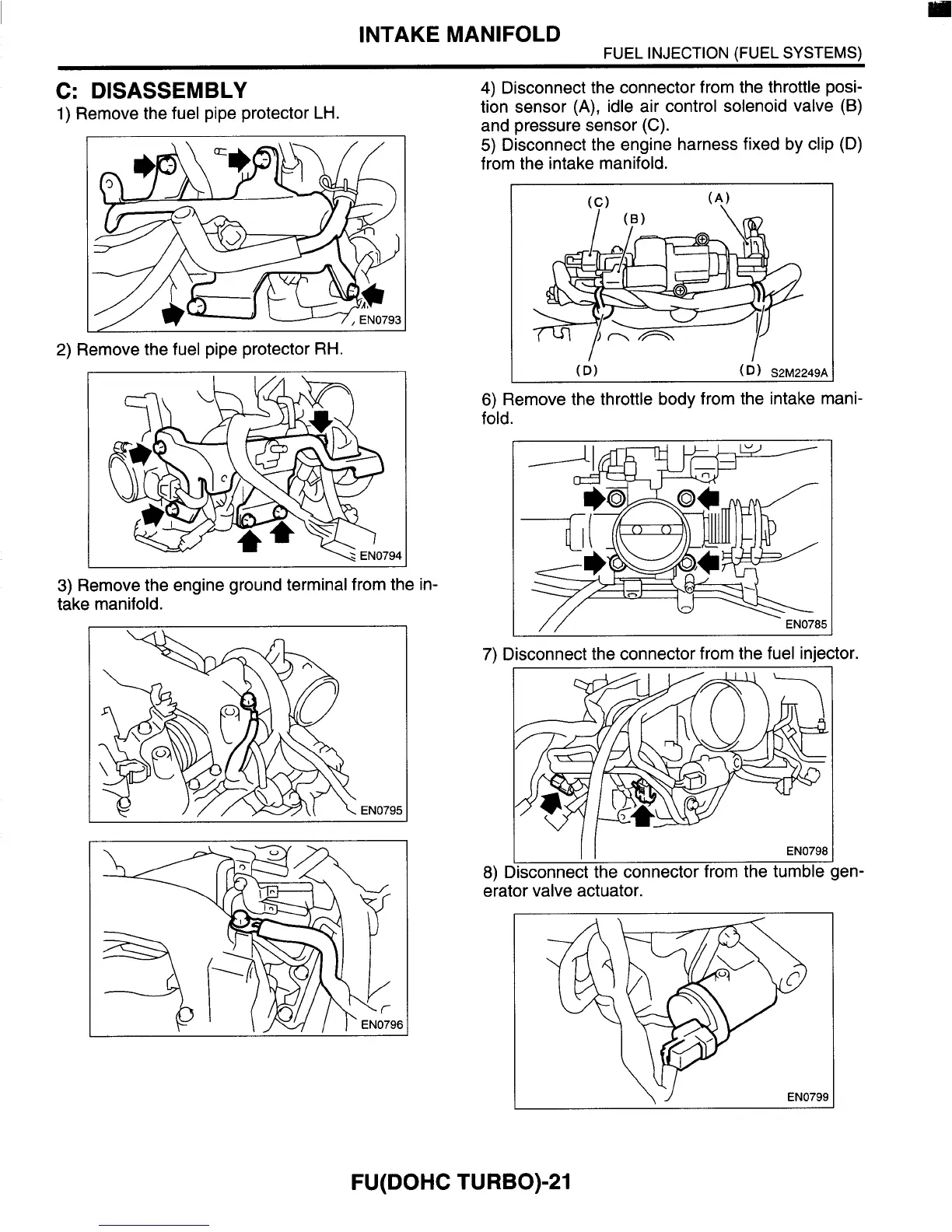

INTAKE MANIFOLD
FUEL INJECTION (FUEL SYSTEMS)
C: DISASSEMBLY
1)
Remove the fuel pipe protector LH.
2)
Remove the fuel pipe protector
RH.
3)
Remove the engine ground terminal from the in-
take manifold.
EN0795
6
4)
Disconnect the connector from the throttle posi-
tion sensor
(A),
idle air control solenoid valve
(B)
and pressure sensor (C).
5)
Disconnect the engine harness fixed by clip (D)
from the intake manifold.
6)
Remove the throttle body from the intake mani-
fold.
.
//
EN0785
7)
Disconnect the connector from the fuel injector.
II
EN0798
8)
Disconnect the connector from the tumble gen-
erator valve actuator.
\J
EN079E
FU(D0HC TURBO)-21
